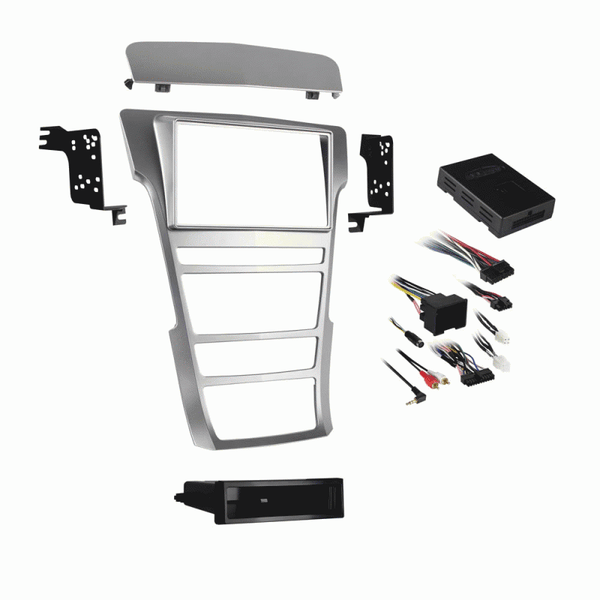

About: Metra 99-3018S Single and Double DIN Dash Installation Kit for 2008-2015 Cadillac CTS Vehicles - Silver

This stereo installation kit has been engineered to help you install either a 2" tall (Single-DIN) or a 4" tall (Double-DIN) aftermarket radio into the original vehicle dashboard. This dash kit makes radio replacement easier and includes the necessary Axxess® data interface needed to retain the factory climate control functions. A pocket installed below the 2" radio to fill the extra space in the radio opening is included, which can be used for storage. The pocket is not needed when installing a 4" tall radio. The dash kit is painted silver to match the original look and feel of the vehicle's dashboard. Modifications to the factory dash are required to use this dash kit, and instructions are included. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn't offer but requires this dash kit and interface to fit and work properly.

Specifications:

• Installation Dash Kit for Single or Double DIN Headunits
• Stereo installation kit designed to fit any standard 2" or 4" tall aftermarket radio with an ISO-mount provision
• Painted silver (also available in high gloss black: 99-3018HG)
• Includes Axxess® data interface and harness to retain the factory climate control functions
• Can be used in non-amplified or analog/digital amplified models
• Data interface retains NAV outputs (parking brake, reverse, speed sense)
• Data interface also retains balance and fade
• Parts included to cover models with or without factory navigation
• **Modifications to the factory dash are required
• Made from the highest quality ABS plastic for an original factory-like fit and finish
• Includes brackets and hardware parts needed with detailed installation instructions
• For 2008-2015 Cadillac CTS Vehicles

Wiring and Antenna Connections:

Wiring Harness

• Axxess interface and harness included

Antenna Adapter

• 40-EU10 (Sold Separately)

Steering wheel control interface

• AXSWC (sold separately)

Backup camera retention

• AXBUCH-GM2 (sold separately)

Vehicle Application:

Cadillac

• CTS (Coupe): 2014
• CTS (Coupe / Sedan): 2008 - 2013
• CTS-V: 2008 - 2014

Note: This kit will not work in the Sport Wagon model
