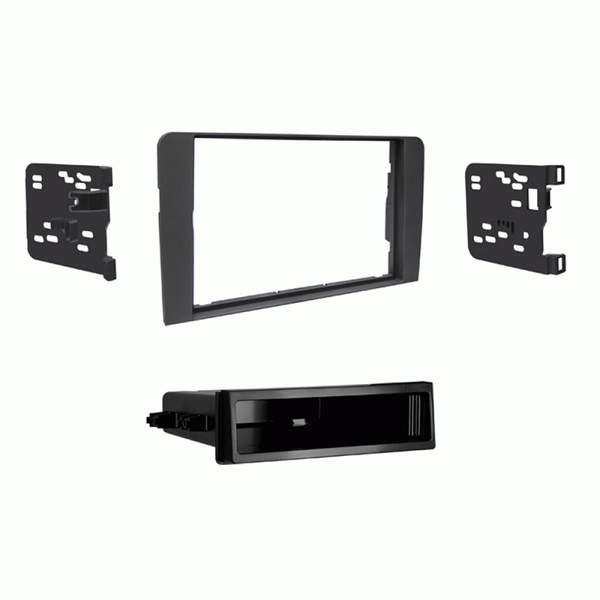

About: Metra 99-9109B 2006-2013 Audi A3 Vehicle Single/Double DIN Dash Installation Kit

This stereo installation kit has been engineered to help you install either a 2” tall (Single-DIN) or a 4” tall (Double-DIN) aftermarket radio into the original vehicle dashboard. This dash kit makes radio replacement simple and comes with a pocket that is installed below the 2” radio to fill the extra space in the radio opening, which can be used for storage. The pocket is not needed when installing a 4” tall radio. The dash kit is painted scratch-resistant matte black to match the original look and feel of the vehicle’s dashboard. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn’t offer but requires this dash kit to make it fit.

Specifications:

• Stereo installation kit designed to fit any standard 2” or 4” tall aftermarket radio
• Painted scratch-resistant matte black
• Two sets of our 86-9001 radio removal tool (sold separately) are required to remove the factory radio from the dash
• Made from the highest quality ABS plastic for an original factory-like fit and finish
• Includes brackets and hardware parts needed with detailed installation instructions

Wiring and Antenna Connections:

Harness

• AXVI-9004 (sold separately)

Antenna Adapter

• 40-EU56 (sold separately)
• 40-VW54 (2006-2007 Standard Symphony models)(sold separately)

Steering wheel control interface

• AXSWC (sold separately)

Vehicle Applications:
