About: Morel IP-UNI82 Universal Series Shallow-Mount 8" 100W RMS Component Speaker System
The IP-UNI82 is a compact, powerful 2-way universal component system that delivers Morel's renowned natural sound, dynamics, and articulation.
Featuring a pair of ultra-slim 8-inch (200mm) woofers, this system is compact and powerful, making it possible to enhance the performance of your audio system without major modifications.
Installation is a key factory with all Morel Integration Performance systems. Our engineers design each system with this in mind, keeping woofer dimensions tidy without sacrificing performance and featuring compact, high-performance tweeters and inline crossovers to simplify installation. Best of all, the integration systems can be powered with factory power or aftermarket amplification.
The slim form of the IP-UNI82 8-inch (200mm) woofer is a product of Morel’s innovative inverted neodymium magnet motor typology. This design places the motor in front of the speaker cone, allowing our engineers to design a proprietary chassis with a compact form factor and minimal mounting depth, allowing it to fit where other 8-inch woofers won’t.

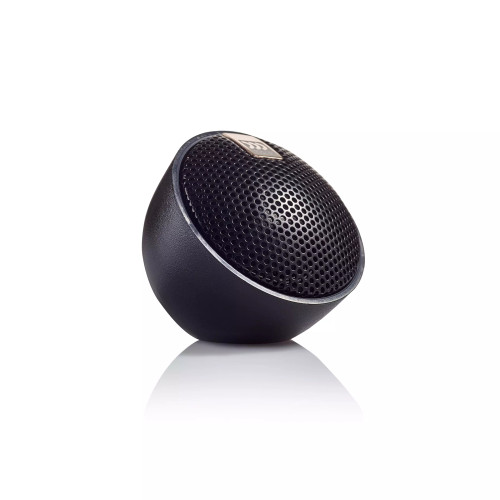

High frequencies are reproduced by our superb 1-inch (25mm) soft dome tweeters, whose compact dimensions make them easy to fit in most factory locations. Protected by an easy-to-install in-line crossover, they deliver incredible clarity and detail in the high-frequency range and integrates smoothly with a dynamic, bass-rich 8” (200mm) woofer to form an accurate soundstage and image.
The IP-UNI82 promises best-in-class performance. One listen, and we’re sure you’ll agree.
Features:
- Component speaker system includes two woofers and two tweeters with inline crossovers
- Ultra-slim 8" treated paper composite woofer with rubber surround
- 1" soft dome tweeter
- In-line crossovers for tweeters (high-pass) and woofers (low-pass)
- Tweeter installation accessories included
- Aluminum die-cast woofer basket
- 4-ohm impedance
- Handles up to 100 watts RMS power range (200 watts peak)
- Frequency response: 40-20,000 Hz
- Sensitivity: 92 dB at 2.83V
- Woofer top-mount depth: 1.88"
- Grilles not included
What's in the Box:
- Two Woofers
- Two MT 25 Tweeters (with attached 9" wire)
- Two in-line low pass crossovers
- Two in-line high pass crossovers
- 2 Tweeter grilles (installed)
- 2 Flush mount tweeter housings
- 2 Flush mount brackets
- 2 Angled surface mount tweeter housings
- Twelve 1" Screws
- 8 Speed clips
- Two 0.187" Crimp-on female quick slides
- Two 0.110" Crimp-on female quick slides
- Two 0.187" Quick slide insulating covers
- Two 0.110" Quick slide insulating covers
- Installation guide
- Morel window sticker
