Descriptions

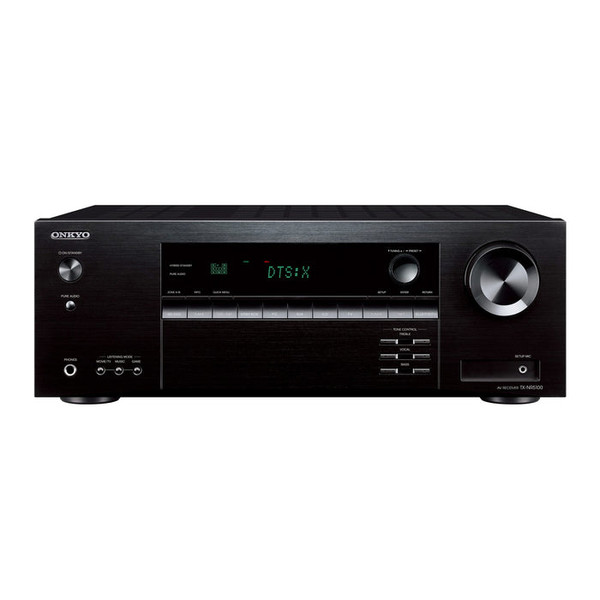

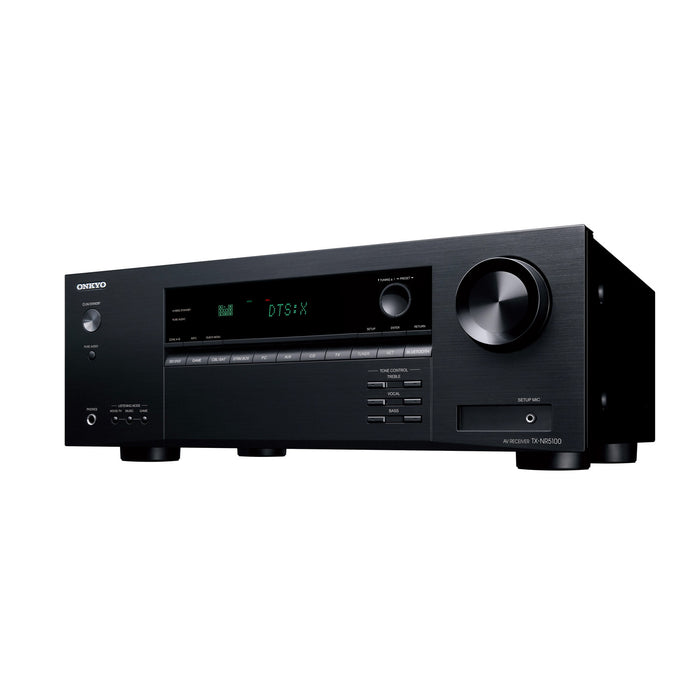

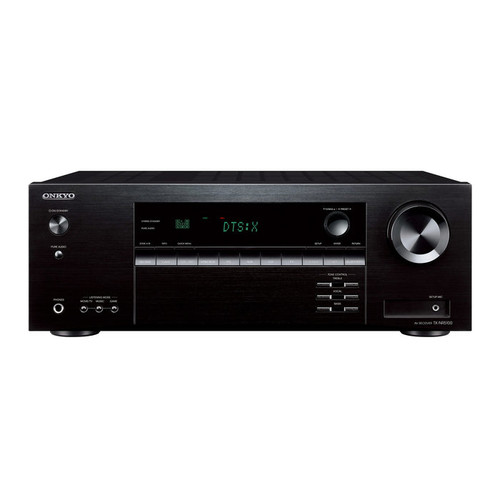

About: Onkyo TX-NR5100 7.2 Channel 8K AV Receiver

The Onkyo TX-NR5100 7.2-Channel 8K AV Receiver is an affordable and versatile home theater centerpiece tailored to deliver a best-in-class entertainment experience for your movies, music, and next-gen gaming systems.

Our SMART AV Receiver™ combines the latest in HDMI 2.1 and 8K tech, high-res audio, and immersive sound via your connected media players, gaming consoles, and advanced audio from your TV apps via eARC for an unparalleled home theater experience.

Smart Home Compatible with Voice Control

The Onkyo TX-NR5100 7.2-Channel 8K SMART AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can operate seamlessly in your multi-room ecosystem. (Requires third-party AI compatible smart home device with microphone)

HDMI® 2.1 with 8K

HDMI® 2.1 is the most recent update of the HDMI® spec and supports eARC, a range of higher video resolutions and refresh rates including 8K60 and 4K120, and Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K and eARC ensures your system is ready for the clearest and cleanest picture available both now and down the road.

Ultimate 4K Gaming Experience

4K/120 enables ultra-fast motion UHD images to be crisp and razor-sharp; and sports, action movies, and high-performance gaming benefit significantly.

Built-In Streaming Services

Access to Spotify®, TIDAL, Deezer, TuneIn, and Pandora® are built into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.

Works with Sonos Certified

This receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port.* This Works With Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app*.

AccuEQ Calibration Ready

AccuEQ streamlines the initial setup of your home theater system and ensures your receiver and speakers are properly calibrated for the best performance in your listening space. AccuEQ calculates speaker distance from the listening position, adjusts speaker sound pressure level, and sets the speaker crossover. The latter selects the correct point to roll off low-frequency sound to the subwoofer. The result is clear and balanced full-spectrum surround sound.

Dolby Atmos® and DTS:X® – Setting Sound Free

Dolby Atmos® and DTS:X® formats allow engineers to map sound anywhere in 3D space, effects moving from speaker to speaker all around the room and wrapping your audience in the latest films and games. You can also enjoy your 3D speaker layout with classic titles. Dolby Surround® and DTS® Neural:X find overhead cues in legacy soundtracks and upmix for awesome spatial realism.

Dolby Atmos® Height Virtualizer

When playing any Dolby® format, engaging Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.

Ready for DTS Play-Fi®

DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi® to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.

Dynamic Audio Amplification

Refined over 70 years to deliver emotion in high fidelity, DAA features a custom High-Current Low-Noise Power Transformer, customized capacitors, and discrete amp output stages. Unique topology prevents phase-shift while high current improves speaker control for true dynamic speed. Driving 4-ohm loads through all channels, DAA has power to move.

Features:

• Amplification power: 135 W/Ch (6 Ω, 1 kHz, 1%, 1 Channel Driven, IEC)
• Precision 192 kHz/24-bit D/A conversion for Hi-Res Audio
• Hi-Res Audio playback via network and USB including DSD256, DSD128, DSD64 (DSDIFF/DSF) and 192 kHz/24-bit FLAC, ALAC, WAV (RIFF), and AIFF*12
• Connected Smart Av receiver – WiFi - Ethernet
• Bluetooth® Audio Streaming
• Immersion Codecs: Dolby Atmos, DTS:X
• AccuEQRoom Correction (microphone included)
• FM/DAB/AM Radio Tuners with 40 Station Presets
• Tone control:
• +/- 10dB @20Hz (Bass)
• +/- 10dB @20KHz (Treble)
• Zone B analog RCA pre / line-level out
• Connectivity : Amazon Music HD, Spotify®, TIDAL, Roon Tested, Deezer, TuneIn, Works with Sonos, AirPlay 2, DTS PlayFi®, and Chromecast built-in.
• HDMI® inputs 1-3 and Main/Sub outpus support 8K/60p(4:2:0/10-bit), 8K/30p(4:4:4/10-bit), 4K/120p(4:4:4/10-bit) video pass through.
• HDMI terminals support HDR10+, Dolby Vision and BT.2020 color; VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and QFT (Quick Frame Transport) passthrough; eARC (Main Out), and HDCP 2.3

Power and Processing:

• 7-channel amplifier
• 80 watts per channel into 8 ohms (20-20,000 Hz) at 0.08% THD, with 2 channels driven (FTC Power Output Rating)
• Dolby® and DTS® surround sound decoding
  • Dolby Atmos and DTS:X™ processing for use with in-ceiling or "height" speakers for more enveloping home theater sound
  • Dolby Atmos Height Virtualization creates three-dimensional effects without height speakers
• AccuEQ automatic speaker calibration optimizes your system's sound for your room (microphone included)

Digital and Streaming Music Options:

• Plays high-resolution digital music files via USB storage device or a networked computer (up to 24-bit/192kHz resolution)
• Built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services
  • Includes support for Pandora®, SiriusXM, and Spotify® (subscription required for some services)
• Compatible with Sonos Port — receiver turns on automatically and sets the right input when selected in the app
• Apple AirPlay 2 lets you stream directly from an iPhone® or iPad® and ask Siri to play Apple Music®
• Built-in Bluetooth for wireless music listening with smartphones, tablets, and compatible computers
  • supports Bluetooth transmission for sending audio from the receiver to Bluetooth-enabled headphones
• Chromecast built-in for streaming music from the cloud with compatible mobile apps
• Works with Amazon Alexa and Google Assistant voice control assistants

HDMI Features:

• HDMI 2.1 audio/video switching: 4 in, 2 out
  • "sub" HDMI output sends mirrored content to a secondary TV or projector
• HDCP 2.3 technology ensures compatibility with Ultra HD sources and TVs
• All HDMI connections support 8K/60Hz and 4K/120Hz video
• HDR-compatible for extended picture contrast and brightness with compatible TVs and HDR-encoded content
  • Supports HDR10+, Dolby Vision™, and HLG (Hybrid Log Gamma)
• Supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)
  • eARC receives uncompressed surround sound signals including Dolby Atmos and DTS:X via the HDMI connection with your compatible TV
• Gaming-optimized video processing technologies for a smooth, lag-free gaming experience
  • Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), and Quick Frame Transport (QFT) reduce or eliminate lag and frame tearing

Other Connections:

• digital audio inputs: 1 Toslink optical, 1 coaxial
• 3 analog stereo RCA audio inputs
• rear-panel USB port for audio playback from USB flash drives
• outputs for 7 speakers (Front L/R, Center, Surround L/R, Height L/R)
• dual RCA subwoofer outputs
• full-sized front-panel headphone jack

Dimensions and Other Info:

• Handheld remote control included
• Support for IP-based third-party remote control systems
• AM/FM tuner

What's in the Box:

• 7.2ch AV receiver
• Remote control (RC-986R)
• 2 "AAA" batteries
• Setup microphone
• AM loop antenna
• FM wire antenna
• Initial Setup Guide
• Chromecast Built-in Guide
• Voice Control Guide
• Safety Information
• Warranty/Registration Information
