Descriptions

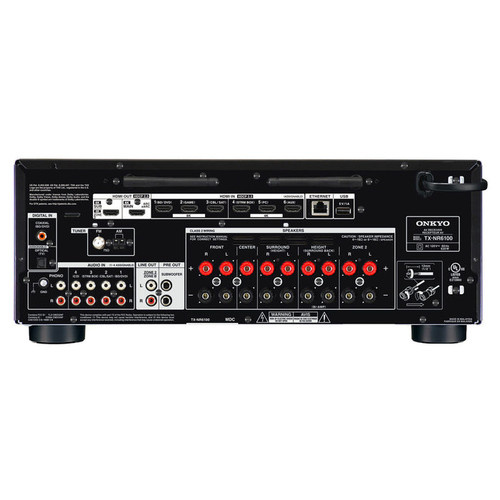

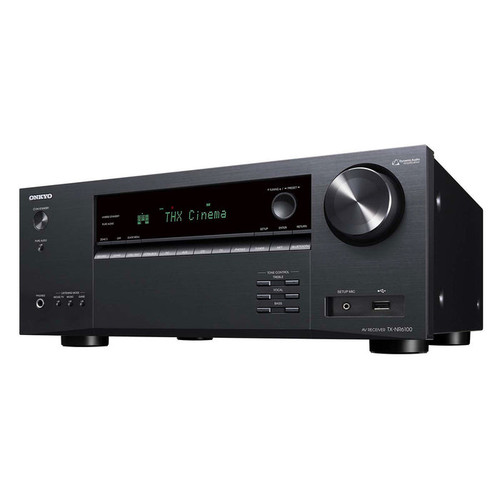

About: Onkyo TX-NR6100 7.2-Channel THX Certified AV Receiver

Rigorously tested to receive the coveted THX Select Certification, the Onkyo TX-NR6100 7.2-Channel AV Receiver delivers precision sound and images.

With an emphasis on an enhanced gaming experience, own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. – ALLM (Auto Low Latency Mode) optimizes latency from source to screen – QFT (Quick Frame Transport) limits lag for a smoother experience.

Setting the bar for reference sound while bringing 8K video to your compatible display over HDMI® 2.1, you can enjoy Dolby Atmos® and DTS: X® soundtracks through your height-enabled surround system or use upmixing and virtualization solutions from DTS® and Dolby® to create a 3D sound-field from any layout.

Featuring three HDMI outputs and 100 watts of power per channel, the TX-NR6100 AV receiver delivers uncompressed HDMI 2.1 8K 60Hz and 4K/120Hz with HDR over 40 gbps, increasing the bandwidth over its predecessors. This SMART AV Receiver™ delivers an unparalleled movie, music, and gaming experience to your living room.

HDMI® 2.1 with 8K

HDMI® 2.1 is the most recent update of the HDMI® spec and supports eARC, a range of higher video resolutions and refresh rates including 8K60 and 4K120, and Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K and eARC ensures your system is ready for the clearest and cleanest picture available both now and down the road.

Specifications:

• Power output (All channels):
• 210 W/Ch (6 ohms, 1 kHz, 10% THD,1-ch driven)
• 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
• Dynamic power: 240 W (3 ohms, Front) 210 W (4 ohms, Front) 120 W (8 ohms, Front)
• THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz–20 kHz, half power)
• Input sensitivity and impedance: 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM)
• Rated RCA output level and impedance: 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)
• Frequency response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
• Tone control: ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
• Signal-to-noise ratio: 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)
• Speaker impedance: 4–16 ohms
• FM Tuner: 87.5 MHz–107.9 MHz
• AM Tuner: 530 kHz–1,710 kHz
• FM/AM preset memory: 40 stations
• Power supply: AC 120 V~, 60 Hz
• Power consumption (operating): 635 W
• Power consumption (idle): 65 W
• Power consumption (standby): 0.1 W
• Dimensions (W x H x D): 17 1/8˝ x 6 13/16˝ x 14 15/16˝ (435 x 173.5 x 379.5 mm)
• Shipping Dimensions (W x H x D): 21" x 10 7/16" x 18 7/16" (534 x 265 x 468 mm)
• Weight: 12.5191 kg

What's in the Box:

• 7.2ch AV receiver
• Remote control (RC-972R)
• 2 "AAA" batteries
• Setup microphone
• AM loop antenna
• FM wire antenna
• Initial Setup Guide
• Chromecast Built-in Guide
• Voice Control Guide
• Safety Information
• Warranty/Registration Information
