Descriptions

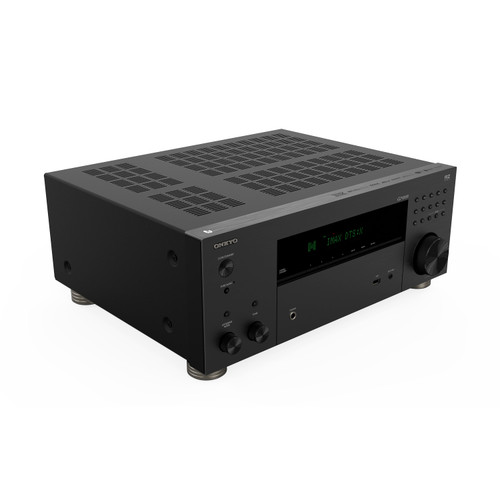

About: Onkyo TX-RZ30 9.2-Channel AV Receiver

The Onkyo TX-RZ30 AV receiver delivers ultra-wide bandwidth and is packed with the latest technology for the home theater of your dreams. For nearly 80 years, Onkyo has been providing audiophiles with sounds that no other company can match. Thanks to unique analogue circuitry and high-end amplifier technology, the 9.2-channel Onkyo TX-RZ30 delivers your favorite content with out-of-this-world sound – with soaring highs and deeper bass. Fan favorite features like Dirac Live, Dolby Atmos, and IMAX Enhanced come standard with the Onkyo RZ Series AVRs to make it the heartbeat of your entertainment system.

Ultra-Wide Bandwidth Via Custom High-Current Circuitry

Thanks to custom low-noise power transformers and smoothing capacitors, the TX-RZ30 delivers deep lows (5 Hz) and crisp highs (100 kHz) for a truly expansive audio experience that stands above typical competitors.

Perfectly Calibrated To Your Space With Dirac

Dirac Live Room Correction is essential for building an impressive home entertainment system. With a Dirac Live Room Correction Full Bandwidth license included out of the box—and an optional upgrade for Single/Multi Bass Control—you get user-friendly, perfectly calibrated audio right away. Full Bandwidth calibration (20 Hz to 20 kHz) ensures accurate sound for both music and movies, while Bass Control enhances subwoofer integration, delivering refined lows and clearer mids and highs.

IMAX Enhanced For Vibrant, Lifelike Experience

IMAX Enhanced elevates your home theater with object-based audio that precisely places sound in a 3D space. On the video side, a proprietary algorithm enhances color accuracy, contrast, and detail for a more vibrant and lifelike viewing experience.

Immersive AV With Dolby Technology

Dolby Atmos creates a 3D soundstage where audio moves freely around you—including overhead—for a truly immersive experience. Dolby Vision enhances visuals by dynamically adjusting brightness, contrast, and color scene-by-scene, ensuring exceptional clarity from the darkest shadows to the brightest highlights.

Home Theater-Approved With 9.2-Channels

The Onkyo TX-RZ30’s 9.2-channel design gives you the flexibility to build a powerful home theater setup, with ample connectivity for a full speaker configuration.

Built-In Streaming Works With Sonos

Enjoy seamless playback with built-in streaming apps across all 9.2 channels. With Sonos integration via a Sonos Port, you can easily distribute high-quality audio throughout your wireless Sonos system.

Better Sound With Klipsch Optimize Mode

Klipsch Optimize Mode simplifies setup by applying precise crossover values for select Reference Premiere speakers, ensuring seamless integration and optimized performance with the TX-RZ30.

Product Highlights:

• RZ Ultra-wide
• Bandwidth Amplifier
• Dirac Live
• Full Bandwidth
• Theater-level quality
• High-quality audio compatibility

Specifications:

• Power And Amplification:
• 9 x 170 W (6 Ohms, 1 kHz, 1% THD, 1-Ch Driven, IEC)
• 9 Channels Amplifier
• Class AB Amplifier
• 5 Hz–100 kHz (+1/-3 dB)
• 9.2ch Processing
• HDMI And Video Inputs:
• 6 In / 2 Out (eARC)
• 8K/4K Ultra HD
• Dolby Vision, HDR10+, HDCP 2.3
• HDMI 2.1a VRR, QFT, ALLM, SBTM
• 1 Component, 2 Composites
• Audio In/Out:
• 6 RCA, 1 RCA Phono
• 1 Optical, 1 Coax
• 9.2 Ch Preouts (2 Independent Subwoofer Outputs)
• Zone 2 Stereo RCA
• Surround Modes: Dolby Atmos, Dolby Surround, DTS:X, Neural:X and IMAX Enhanced
• Streaming: Roon Tested, Chromecast Built-In, AirPlay 2, Spotify, Amazon Music HD, Tidal, Deezer and TuneIn
• Wi-Fi / Bluetooth
• Dirac Live® Room Correction Full Bandwidth License Included
• Optional Dirac Live® Bass Control
• Works With Sonos (With Volume Pass-Through)
• THX® Certified For Theater Reference Sound
• Klipsch Optimized Mode
• Power Consumption:
• 760W
• 50W Idle, <2W Network Standby
• Product Dimensions (W x H x D): 17.1" x 7" x 15.1" (435 x 177.5 x 382.5 mm)
• Packaging Dimensions (W x H x D): 21.3" x 10.6" x 18.4" (540 x 270 x 467 mm)
• Net Weight Of Product: 25.4 lbs (11.5 kg)
• Gross Weight Of Product: 32 lbs (14.5 kg)

What's in the Box:

• 9.2h AV receiver
• 6' AC power cord
• Remote control (RC-972R)
• 2 "AAA" batteries
• Setup microphone
• AM loop antenna
• FM wire antenna
• Initial Setup Guide
• Safety Information
• Warranty/Registration Information
