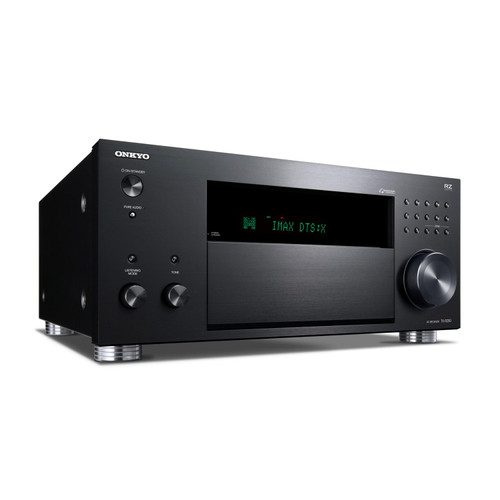

About: Onkyo TX-RZ50 9.2-Channel THX AV Receiver

With up to 11.2 channels of processing, DIRAC Live Room Correction, and the coveted THX Certification, the Onkyo TX-RZ50 AV Receiver is a best-in-class home theater powerhouse. The TX-RZ50 delivers enormous power on-demand to highlight every nuance of the music, movies, and games you love.

Groundbreaking DIRAC Live® Room Correction technology offers improved musical staging, clarity, dialog, and deeper bass right out of the box, ensuring that your immersive surround experience is delivered with the highest fidelity.

Featuring three HDMI-out options, the TX-RZ50 AV receiver delivers uncompressed HDMI 8K/4K transfer at 40 Gbps, increasing the bandwidth over its predecessors and taking full advantage of the capabilities of Next-Gen gaming consoles. Put through thousands of tests to obtain the coveted THX Certification, this SMART AV Receiver™ delivers a mind-blowing movie, music, and gaming experience to your home.

DIRAC LIVE® ROOM CORRECTION

State-of-the-art digital room correction technology improves overall audio performance across the full frequency band with no additional upgrade required. Dirac Live automatically calibrates sound in your room using either your smartphone and the included wired mic, or go virtually wireless with the Dirac Live PC or MacOS * application, and a 3rd party USB mic (not included). Dirac Live unlocks your loudspeakers’ full potential in any listening space and delivers a uniquely pristine listening experience.

* Device must be connected to the internet and the same network as your AVR.

ULTIMATE 4K GAMING EXPERIENCE

4K/120 enables ultra-fast motion UHD images to be crisp and razor-sharp; and sports, action movies, and high-performance gaming benefit significantly. The TX-RZ50 supports higher performance from streaming devices like the latest Apple TV.

Specifications:

• Power output (All channels)
• 250 W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven)
• 120 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2 channels driven, FTC)
• Dynamic power: 250 W (3 ohms, Front) 220 W (4 ohms, Front) 130 W (8 ohms, Front)
• THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz–20 kHz, half power)
• Input sensitivity and impedance: 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM)
• Rated RCA output level and impedance: 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)
• Frequency response: 5 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
• Tone control: ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
• Signal-to-noise ratio: 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)
• Speaker impedance: 4–16 ohms
• FM: 87.5 MHz–107.9 MHz
• AM: 530 kHz–1,710 kHz
• FM/AM preset memory: 40 stations
• Power supply: AC 120 V~, 60 Hz
• Power consumption (operating): 850 W
• Power consumption (idle): 75 W
• Power consumption (standby): 0.1 W
• Dimensions (W x H x D): 17 1/8˝ x 7 15/16˝ x 15 11/16˝ (435 x 201.5 x 398 mm)
• Weight: 14.0 kg
• UPC: 889951003687
• Dimensions (W x H x D): 22 7/16˝ x 13 3/16˝ x 19 5/16˝ (570 x 335 x 490 mm)
• Weight: 17.0097 kg

What's in the box:

• 9.2h AV receiver
• 6' AC power cord
• Remote control (RC-972R)
• 2 "AAA" batteries
• Setup microphone
• AM loop antenna
• FM wire antenna
• Initial Setup Guide
• Chromecast Built-in Guide
• Voice Control Guide
• Safety Information
• Warranty/Registration Information
