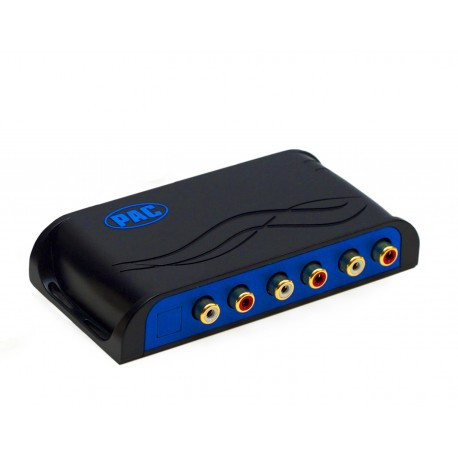

PAC AmpPro AP4-FD11 Amplifier Integration Interface for Select Ford and Lincoln Vehicles with Factory Sony Amplified Sound Systems

PAC

PAC AmpPro AP4-FD11 Amplifier Integration Interface for Select Ford and Lincoln Vehicles with Factory Sony Amplified Sound Systems

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$699.95

SKU: AP4-FD11

Condition: New

Availability: Special Order - Usually Ships in 3-5 Days

Shipping: Calculated at Checkout

Select Quantity:

Adding to cart… The item has been added

Buy now pay later with

Learn more

+1 (416) 745-1021

Have more questions? Ask an Expert

Free shipping on orders over $200

30-Day Return Policy

Canadian Owned & Operated

Price Match Guarantee

Description
Warranty
Shipping & Returns

Descriptions

About: PAC AmpPro AP4-FD11 Amplifier Integration Interface for Select Ford and Lincoln Vehicles with Factory Sony Amplified Sound Systems

AmpPRO simplifies the installation of upgraded amplifiers in data-bus-controlled amplified sound systems. With AmpPRO, you can improve audio performance while keeping an original radio’s fit, finish, and features.

The AP4-FD11 provides a 6-channel pre-amp output for use with aftermarket audio equipment. Using the full range, fixed level head unit output, in conjunction with CAN messages, the AP4-FD11 delivers a variable 5v RMS pre-amp output with fading, balance, equalization, and level control capabilities. The module also retains all audio from other vehicle features such as factory navigation prompts, Bluetooth, SYNC, and parking sensor chimes. A data controlled remote amplifier turn on wire is also provided by the AP4-FD11. When used in conjunction with the APA-TOS1 (sold separately), the module can provide a variable 2-channel fiber optic digital audio output (TOSLINK).

Features:

Simplifies amplifier installation
Prevents the need for summing and DSP devices
Provides factory sound system upgrade solution

Specifications:

It can be used to upgrade the entire sound system or just part of it thanks to the retention of the original amplifier
Enables the addition of a subwoofer system to the original sound system
Variable volume, fade, balance, bass, mid and treble audio settings
Front, rear, sub preamp outputs (5 volt RMS)
Provides flat audio output for a solid audio foundation
Customized OE bass, mid and treble center frequency selection
Retains Sync, Bluetooth audio, and all warning chimes
Plug & play installation
Sublevel controller

Vehicle Applications:

Ford:

F-150 (With factory Sony amplifier): 2009-2012
Flex (With factory Sony amplifier): 2009-2012
Fusion (With factory Sony amplifier): 2010-2012
Taurus (With factory Sony amplifier): 2010-2012

Lincoln:

MKS (With factory Sony amplifier): 2009-2012
MKT (With factory Sony amplifier): 2010-2012
MKX (With factory Sony amplifier): 2007-2010
MKZ (With factory Sony amplifier): 2007-2012
Navigator (With factory Sony amplifier): 2007-2014

Compatibility Note:

This product is compatible with data-bus-controlled amplified systems only. To identify these systems, look for logos on door speakers, tweeters, dash speakers, or the subwoofer to confirm if the vehicle has a compatible amplified system. If you are unsure of your vehicle having an amplified system, please contact an authorized Ford service center for further clarification.

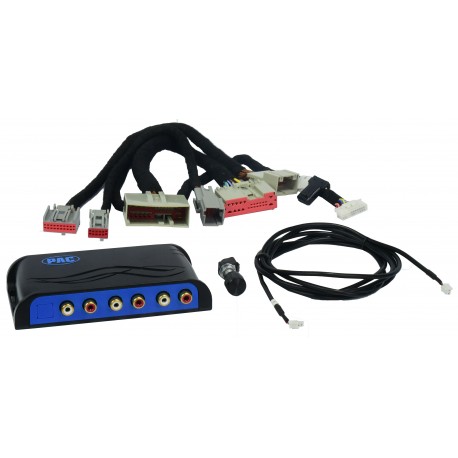

What's in The Box

AmpPRO module
24-pin (MS-CAN)
Bass knob
Knob harness
Manual
