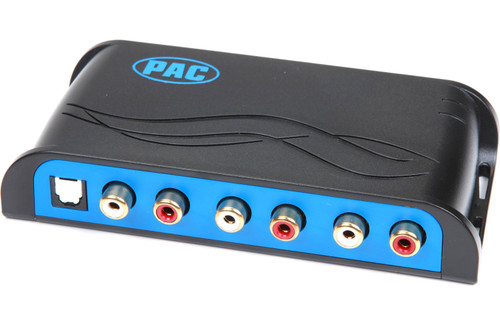

PAC AP4-GM61 AmpPRO Aftermarket Amplifier Interface for Select 2014-Up GM Vehicles
Descriptions
About: PAC AP4-GM61 AmpPRO Aftermarket Amplifier Interface for Select 2014-Up GM Vehicles
Today's modern vehicle audio systems are becoming increasingly more sophisticated and complex. PAC engineered AmpPRO to dramatically simplify the installation of upgraded amplifiers in data-bus-controlled amplified sound systems.
The AP4-GM61 provides 6-channel pre-amp outputs (front and rear, left and right, along with a center channel output and non fading output for subwoofer output) for use with aftermarket audio equipment. Using the full range, fixed level head unit output, in conjunction with MOST, the AP4-GM61 delivers variable 5v RMS pre-amp outputs with fading, balance, equalization, and level control capabilities. The module also retains all audio from other vehicle features such as factory navigation prompts, Bluetooth, OnStar, parking sensor chimes, safety alerts, reminders and infotainment. A data controlled remote amplifier turn on wire is also provided by the AP4-GM61. The module also provides a variable 2-channel fiber optic digital audio output (TOSLINK).
Specifications:
- Amplifier integration module and T-harness
- Add an aftermarket amplifier without removing factory amp
- Works with select 2014-up GM vehicles with Bose sound system
- 6-channel RCA outputs (front, rear, subs)
- Switchable 5- or 4-volt RMS output
- Retains factory radio controls and audio features
- Wired remote level control for sub channels
- Remote turn-on lead for amplifiers
- AmpPRO PC App, available from PAC, lets you adjust minimum and chime volumes and 3-band EQ via your Windows-run PC
- Optical digital output for high-end digital processors and amplifiers
Vehicle Applications:
Cadillac
- ATS (With 8" Screen): 2015
- CT6 (With 8" Screen): 2017
- Escalade (With 8" Screen): 2015 - 2019
Chevrolet
- Camaro (With 8" Screen): 2016 - 2018
- Colorado (With 8" Screen): 2015 - 2018
- Corvette (With 8" Screen): 2014 - 2019
- Cruze (With 8" Screen): 2017 - 2018
- Equinox (With 8" Screen): 2018
- Impala (With 8" Screen): 2014 - 2019
- Malibu (With 8" Screen): 2016 - 2018
- Silverado (With 8" Screen): 2014 - 2018
- Silverado Classic (With 8" Screen): 2019
- Silverado HD (With 8" Screen): 2015 - 2019
- Suburban (With 8" Screen): 2015 - 2019
- Tahoe (With 8" Screen): 2015 - 2019
- Traverse (With 8" Screen): 2018 - 2019
- Volt (With 8" Screen): 2016 - 2018
GMC
- Acadia (With 8" Screen): 2018 - 2019
- Canyon (With 8" Screen): 2015 - 2018
- Sierra (With 8" Screen): 2014 - 2018
- Sierra HD (With 8" Screen): 2015 - 2019
- Terrain (With 8" Screen): 2018
- Yukon (With 8" Screen): 2015 - 2019
- Yukon XL (With 8" Screen): 2015 - 2019
Compatibility Notes:
- Must have BOSE factory sound system.
- Must have Infotainment system RPO code IO5 or IO6 to be compatible.
- To verify the "IO" RPO code on your vehicle, check the glove compartment or spare tire well for a silver sticker with these codes. If this sticker is not present, you must scan the QR code on the GM label found in the driver's door jamb. The RPO codes will be listed in alphabetical order in either scenario.
What's in the Box:
- Amplifier integration interface module
- T-harness
- 6' Rotary-knob cable
- Rotary-knob
- Installation Instructions
