About: PAC APSUB-CH21 Amplifier Integration Interface for Select 2008-2018 Chrysler, Dodge, Jeep and RAM Vehicles with Amplified Sound System

Add a subwoofer. Upgrade your sound and keep your 2008 to 2015 Chrysler, Ram, Jeep or Dodge (with premium sound) factory radio.

The APSUB-CH21 provides a 2-channel non-fading pre-amp output for use with an aftermarket amplifier and subwoofer. Using the full range, fixed level head unit output, in conjunction with CAN messages, the APSUB-CH21 delivers a low pass variable 5v RMS pre-amp output with bass equalization and level control capabilities. The signal has a 350Hz / 24dB Linkwitz-Riley low pass filter applied. A data controlled remote amplifier turn on wire is also provided by the APSUB-CH21.

Specifications:

Amplifier and subwoofer integration interface
Compatible with select 2007-2018 vehicles from Dodge, Jeep, Ram
Compatible with amplified vehicle systems
Data-controlled remote amplifier turn-on wire included
Connects an aftermarket amplifier and subwoofer to vehicle's sound system
Provides 2-channel non-fading output for use with aftermarket amp and sub
Delivers 5V RMS pre-amp output with bass equalization and level control
Signal equipped with 350Hz / 24dB Linkwitz-Riley low pass filter applied

Vehicle Applications:

Chrysler

Town & Country (With factory amplifier): 2008 - 2016

Dodge

Challenger (With factory amplifier): 2008 - 2014
Charger (With factory amplifier): 2008 - 2010
Durango (With factory amplifier): 2009, 2011 - 2013
Grand Caravan (With factory amplifier): 2008 - 2018
Ram Truck (With factory amplifier): 2009 - 2012

Jeep

Grand Cherokee (With factory amplifier): 2008 - 2013
Wrangler (With factory amplifier): 2007 - 2017
Wrangler (Jk, With factory amplifier): 2018
Wrangler Unlimited (With factory amplifier): 2007 - 2017
Wrangler Unlimited (Jk, With factory amplifier): 2018

Ram

Truck (With factory amplifier): 2010 - 2012

Compatibility Notes:

Vehicle must be equipped with a factory amplified system

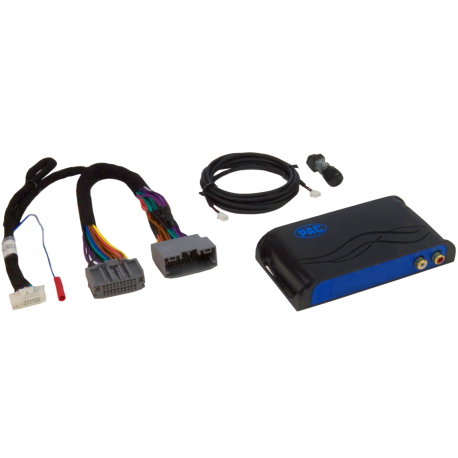

What’s in the Box:

17" T-Harness (22-pin plugs) w/ inline 3A mini-ATO fuse
AmpPRO module
Remote level-control (attached 6' cable w/ 2-pin Molex plug)
Instruction manual
