PAC APSUB-CH42 Amplifier Integration Interface for Select for Select Chrysler, Dodge and Jeep Vehicles with Premium Sound

$386.95
SKU: APSUB-CH42
Condition: New
Availability: Special Order - Usually Ships in 4-8 Days
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Have more questions? Ask an Expert
Free shipping on orders over $200
30-Day Return Policy
Canadian Owned & Operated
Price Match Guarantee

Descriptions

About: PAC APSUB-CH42 Amplifier Integration Interface for Select for Select Chrysler, Dodge and Jeep Vehicles with Premium Sound

AmpPRO SUB products seamlessly integrate with the data-bus allowing for full control and optimum sound from a factory radio when adding aftermarket amplifiers.

 The APSUB-CH42 provides a 2-channel non-fading pre-amp output for use with an aftermarket amplifier and subwoofer. Using the full range, fixed level head unit output, in conjunction with CAN messages, the APSUB-CH42 delivers a low pass variable 5v RMS pre-amp output with bass equalization and level control capabilities. The signal has a 350Hz / 24dB Linkwitz-Riley low pass filter applied. A data controlled remote amplifier turn on wire is also provided by the APSUB-CH42.

Specifications:

  • Upgrade solution for factory, fixed level, data-bus controlled sound systems
  • Time-Saving design prevents the need for audio correction devices
  • Connect an aftermarket amp and subwoofer to your Chrysler-made vehicle's sound system
    • Factory amp needs to be left connected
  • Package includes amp installation module, vehicle-specific harness, and wired remote
  • Amplifier module supplies 5-volt preamp signal for subwoofer amp
  • Options include flat frequency spectrum and user-selectable center boost/cut frequency
  • Vehicle-specific harness simplifies installation
  • Wired remote control included
  • Provides flat-low frequency audio output
  • Customized OE bass center frequency selection
  • Plug-and-Play installation

Vehicle Applications:

Chrysler

  • Pacifica (With factory amplifier): 2021 - 2022

Dodge

  • Durango (With 10" Screen, With factory amplifier): 2021 - 2024
  • Ram Truck (New model, With factory amplifier): 2022 - 2024
  • Ram Truck (With factory amplifier): 2025 - 2026

Jeep

  • Gladiator (With factory amplifier): 2024
  • Grand Cherokee (Wl, With factory amplifier): 2021 - 2022
  • Grand Cherokee (With factory amplifier): 2023 - 2025
  • Grand Wagoneer (With factory amplifier): 2022 - 2025
  • Wrangler (With factory amplifier): 2024 - 2025
  • Wrangler Unlimited (With factory amplifier): 2024 - 2025

Ram

  • Truck (New model, With factory amplifier): 2022 - 2024
  • Truck (With factory amplifier): 2025 - 2026

Compatibility Note:

  • This interface is only compatible in vehicles equipped with a data-bus controlled amplified sound system. To verify compatibility, look for an Alpine or Harmon Kardon badge on the door speakers, center speaker, or factory subwoofer. If none of these brands are shown; check for the presence of a center speaker or subwoofer
  • Also compatible in the 22+ Jeep Wagoneer with factory amplifier
  • Not compatible in Wagoneer S EV

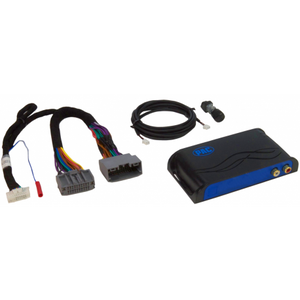

What's in the Box:

  • AmpPRO module
  • 15" T-harness (inline 3A mini fuse)
  • 5" ANC Bypass harness
  • Rotary level control
  • 6' Level control cable (pre-attached)
  • Installation instructions
