About: PAC APSUB-FD21 Amplifier Integration Interface for Select 2011-2020 Ford Vehicles with Amplified Sony Sound System

Add a subwoofer. Upgrade your sound and keep your Ford factory radio.

The APSUB-FD21 provides a 2-channel non-fading pre-amp output for use with an aftermarket amplifier and subwoofer. Using the full range, fixed level head unit output, in conjunction with CAN messages, the APSUB-FD21 delivers a low pass variable 5v RMS pre-amp output with bass equalization and level control capabilities. The signal has a 350Hz / 24dB Linkwitz-Riley low pass filter applied. A data controlled remote amplifier turn on wire is also provided by the APSUB-FD21.

Specifications:

Amplifier and Subwoofer Integration Interface
Compatible with select 2011-2019 vehicles from Ford with factory premium Sony sound systems
Connects an aftermarket amplifier and subwoofer to vehicle's sound system
Only compatible in vehicles equipped with data bus-controlled premium sound system
Data-controlled remote amplifier turn-on wire included
Provides 2-channel non-fading output for use with aftermarket amp and sub
Delivers 5V RMS pre-amp output with bass equalization and level control
Retains Sync, Bluetooth, navigation, safety systems, and all warning chimes
ANC bypass harness included for vehicles with Active Noise Cancellation (ANC)
Compatible with AmpPRO PC app for Windows PC
PC app configures minimum volume level, factory equalizer and bass band frequency

Vehicle Applications:

Ford

Edge (With factory Sony amplifier): 2015 - 2017
Escape (With factory Sony amplifier): 2016
Expedition (With factory Sony amplifier): 2015 - 2017
Explorer (With factory Sony amplifier): 2011 - 2018
F-150 (With factory Sony amplifier): 2013 - 2017
F-250 (With factory Sony amplifier): 2013 - 2019
F-350 (With factory Sony amplifier): 2013 - 2019
F-450 (With factory Sony amplifier): 2013 - 2019
F-550 (With factory Sony amplifier): 2013 - 2019
Focus (With factory Sony amplifier): 2012 - 2017
Fusion (With factory Sony amplifier): 2013 - 2016
Mustang (With factory Sony amplifier): 2019 - 2020
Taurus (With factory Sony amplifier): 2013 - 2015

Compatibility Notes:

This product is compatible with data-bus controlled amplified systems only. To identify these systems, look for logos on door speakers, tweeters, dash speakers or the subwoofer to confirm that the vehicle has a compatible amplified system. If you are unsure of your vehicle having an amplified system please contact an authorized Ford service center for further clarification.
2018-2019 Super Duty Trucks can have either Sony or B&O systems to be compatible.

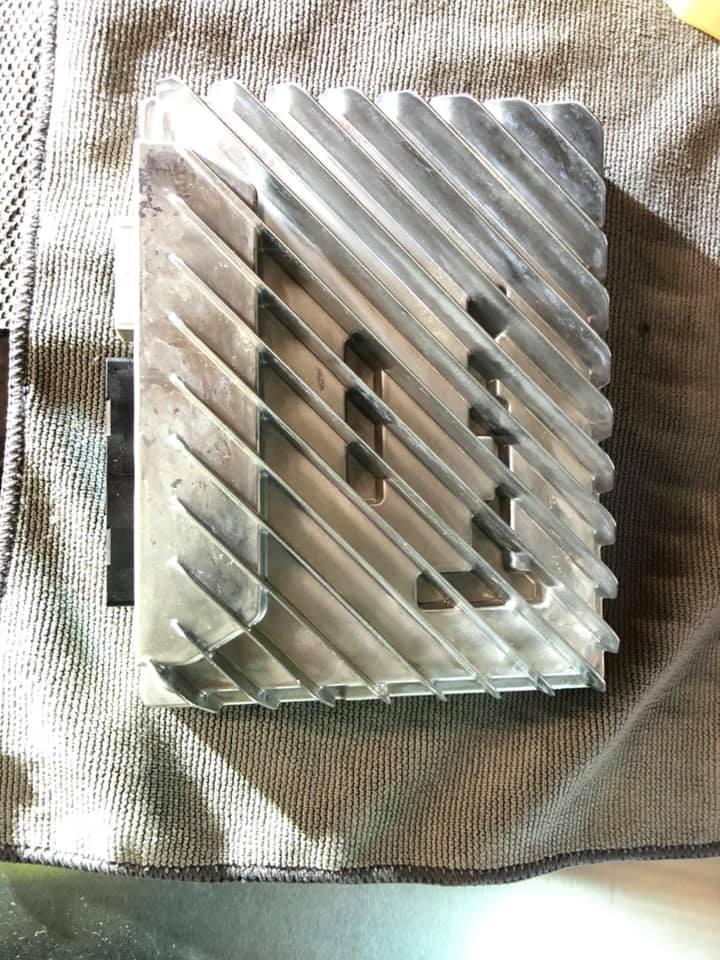

2019+ Mustang must have B&O System to be compatible. If the amp looks like the one pictured, it is compatible. The amp can be found in the driver's kick panel. If the system is amplified and not badged then the AP4 is not compatible as this is a completely analog system.

What’s in the Box:

34" T-Harness (24- & 54-pin plugs) w/inline 3A mini-ATO fuse
AmpPRO module
Remote level-control (attached 6' cable w/ 2-pin Molex plug)
Instruction manual
