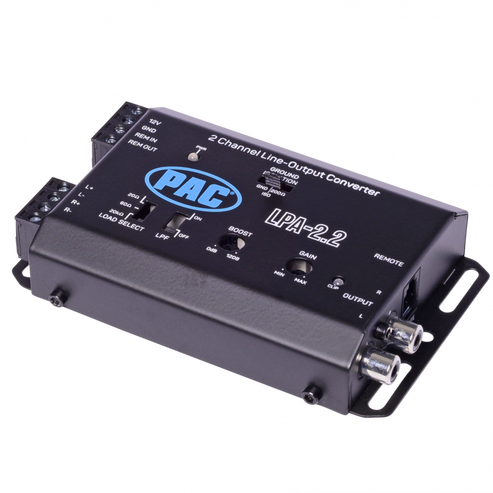

PAC LPA-2.2 LocPRO Advanced 2-Channel Line Output Converter

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$116.95

SKU:: LPA-2.2
Condition:: New
Availability:: Special Order - Usually Ships in 1-2 Weeks
Shipping:: Calculated at Checkout

PAC LPA-2.2 LocPRO Advanced 2-Channel Line Output Converter

$116.95

Description
Shipping & Returns

Description

About: PAC LPA-2.2 LocPRO Advanced 2-Channel Line Output Converter

LOCPRO ADVANCED line output converters feature incredible input power capabilities, enhanced output controls, and noise isolation countermeasures. Combined with the newest vehicle systems' compatibility, these features are the gateway for your audio aspirations.

The L.O.C.PRO ADVANCED™ can be used to add amplifiers to an audio system that does not have RCA outputs or when replacing an OEM radio and retaining the factory amplified system. Variable Gain Controls with Clipping Indicators, Selectable Ground Isolation and Load Select features ensure a pure, noise-free signal for any type of audio system.

Features:

2-channel active line output converter
Designed to work with most factory systems
Speaker-level inputs (0.5-40V)

Can handle up to 400 watts RMS per channel
Selectable input loads for OEM integration (20, 60, or 20,000 ohms)

Variable gain control with clip indicator
Selectable low-pass filter (250 Hz)
Variable bass boost (0-12dB at 45 Hz)
Up to 9.5 Vrms output
Stamped steel chassis

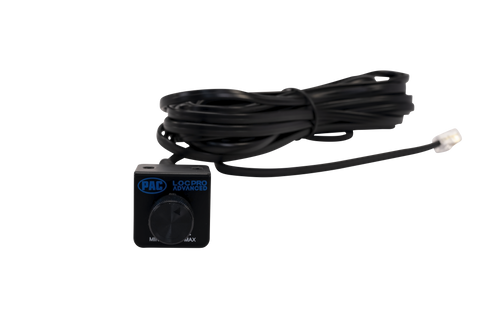

Optional PAC LPA-REM wired remote bass level controller available
Selectable ground isolation (GND, ISO, 200-ohm)
Auto turn-on via DC offset/signal detect or remote trigger

12-volt turn-on lead output

Wiring, fuse, and hardware not included with device

18-gauge power and ground leads and a 1-amp fuse recommended

Specifications:

Channels: 2 In — 2 Out
Operating Voltage: 9V—16V
Max Input Level (20kHΩ Load Setting): 40V / 400W @ 4 Ohms
Auto Turn On: DC Offset / Remote
Output Voltage MAX @ 13.8V: 9.5V RMS
Turn On Trigger (DC-Offset): 3V—7V
Load Input Impedance: 20Ω, 60Ω, 20KΩ
Output Impedance: <120Ω
Variable Gain Adjustment: -28dB—+1dB
Signal To Noise: >110dBA @ 6.4V Output
THD+N: < 0.01%
Input Sensitivity: 0.5V—40V
Frequency Response: 10Hz—20kHz
Current Draw (Max): 40mA
Low Pass Filter: <250Hz
Bass Boost: 0dB to +12dB
Clip Indicator: Yes
Remote Level Control: Optional (LPA-REM Sold Separately)
Chassis Type: Stamped Steel
Terminal Gauge: 18AWG / Quick Connect

What’s in the Box:

2-Channel line output converter
2 Phoenix terminals (installed)
Four 5/8" Screws
Quick start guide
