PAC

PAC RP4-FD11 Radio Replacement Interface with SWC Retention for Select Ford Vehicles with Canbus

$199.95
SKU:
RP4-FD11
UPC:
6.06523E+11
Condition:
New
Availability:
Special Order - Usually Ships in 4-8 Days
Shipping:
Calculated at Checkout

PAC RP4-FD11 Radio Replacement Interface with SWC Retention for Select Ford Vehicles with Canbus

$199.95

About: PAC RP4-FD11 Radio Replacement Interface with SWC Retention for Select Ford Vehicles with Canbus

An all-in-one radio replacement and SWC interface, the innovative RadioPRO4 comes pre-loaded with amplifier retention and SWC software, navigation-based output signals, and other features that save time and money during installation. Retains steering wheel controls (pre-programmed) Data controlled accessory and navigation outputs Retains factory amplifier Retains Rear Seat Controls Provides factory RSE activation In package updatable using the PAC-UP.

The RP4-FD11 interface allows the replacement of a factory radio in select Ford/Lincoln/Mercury vehicles with MSCAN databus radios. Using this interface will retain factory features such as steering wheel controls (SWC), rear seat entertainment (RSE), rear seat controls (RSC) and the THX or Sony amplifier when the original radio is removed. Use of this interface also allows you to program two radio functions to each SWC button by using short press long press dual command functionality. The RP4-FD11 also provides data bus driven outputs such as retained accessory power (RAP), vehicle speed sensor (VSS), illumination, reverse trigger and parking brake.

Specifications:

  • Radiopro4 PAC RP4-FD11 Stereo Replacement Interface
  • Navigation Ready:
    • Data controlled accessory and navigation outputs
  • Built in pre-programmed steering wheel control (SWC) retention
  • Retains factory amplifier:
    • Note: In Premium Amplified Systems only two input channels can be used from the aftermarket radio, therefore there will be no fading capability of the aftermarket stereo.
  • Provides factory RSE activation
  • Retains warning chimes
  • Retains rear seat radio controls
  • Rear seat entertainment activation
  • Rear seat entertainment A/V ready
  • No programming required
  • Accessory 12-volt output

Vehicle Applications:

Ford

  • Edge: 2007 - 2010
  • Escape: 2008 - 2012
  • Expedition: 2007 - 2014
  • Explorer: 2006 - 2010
  • Explorer Sport Trac: 2007 - 2010
  • F-150: 2009 - 2012
  • F-150 (Center stack, Not MyTouch): 2013 - 2014
  • F-250 (All other trim levels excluding XL): 2008 - 2010
  • F-250: 2011 - 2012
  • F-250 (Base model, Double din, Not MyTouch): 2013 - 2016
  • F-350 (All other trim levels, Not XL): 2008 - 2010
  • F-350: 2011 - 2012
  • F-350 (Base model, Double din, Not MyTouch): 2013 - 2016
  • F-450 (All other trim levels excluding XL): 2008 - 2010
  • F-450: 2011 - 2012
  • F-450 (Base model, Double din, Not MyTouch): 2013 - 2016
  • F-550 (Base model, Double din, Not MyTouch): 2013 - 2016
  • Five Hundred: 2005 - 2007
  • Flex: 2009 - 2012
  • Focus: 2008 - 2011
  • Freestyle: 2005 - 2007
  • Fusion: 2006 - 2012
  • Mustang: 2005 - 2013
  • Taurus: 2010 - 2012

Lincoln

  • MKS: 2009 - 2012
  • MKT: 2010 - 2012
  • Mkx: 2007 - 2010
  • Mkz: 2007 - 2012
  • Navigator: 2007 - 2014
  • Zephyr: 2006

Mazda

  • Tribute: 2009 - 2011
  • Mariner: 2008 - 2011
  • Milan: 2006 - 2011
  • Montego: 2005 - 2007
  • Mountaineer: 2006 - 2010

Compatibility Notes:

  • Does not retain SYNC
  • Factory amplified Systems will not fade as neither the aftermarket radio or the RP interface have the ability to control the amplifier’s fader.

Vehicle Specific Notes:

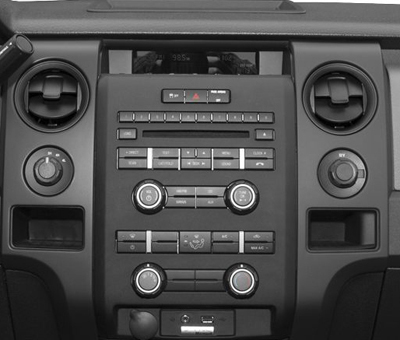

  • 2013-2014 F-150: Only compatible in base model trucks equipped with the center stack radio (pictured below)



  • 2008 - 2010 F-250/350/450: Not compatible with model trim XL (fleet vehicles). These vehicles do not have the necessary CAN bus signals

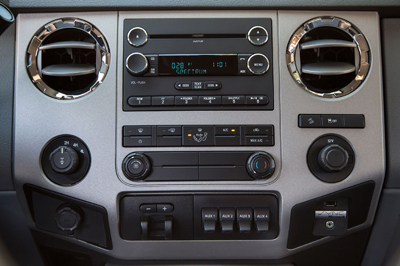

  • 2013 -2016 Ford Super Duty: Only compatible in base model trucks equipped with the double DIN radio (pictured below)

What's in the Box:

  • Radio replacement/SWC interface module (for Ford/Lincoln/Mercury)
  • RP4-FD11 wiring harness
  • 12" Steering wheel control harness (4-pin connector to 3.5mm/blue wire)
  • Instructions
