About: PAC RP5-GM32 Radio Replacement Interface for Select 2012-2014 GM Vehicles

An all-in-one radio replacement and SWC interface, the innovative RadioPRO5 comes pre-loaded with OnStar retention, amplifier retention, SWC software, navigation-based output signals, and other features that save time and money during installation.

The RP5-GM32 interface allows the replacement of a factory radio in select General Motors vehicles with 29 Bit Data-Bus. Using this interface will retain factory features such as Warning Chimes, Bose Amplifier, Steering Wheel Controls (SWC), Rear Seat Entertainment (RSE), and Rear Seat Controls (RSC) when the original radio is removed. The RP5-GM32 provides data bus driven outputs such as retained accessory power (RAP), vehicle speed signal (VSS), illumination, reverse trigger and parking brake.

Specifications:

Radio Replacement Interface With Built In OnStar Retention, Pre-Programmed Steering Wheel Control Retention and Navigation Output
Works with amplified and non-amplified systems (including Bose audio systems)
Provides Vehicle Speed Sensor (VSS), parking brake, and reverse connections for installing a navigation receiver
Retains factory Bluetooth if equipped
Retains factory OnStar if equipped
Retains factory steering wheel audio controls (allows dual function for each button)
Retains Rear Seat Controls
Compatible with Select 2012-2014 GM Vehicles

Vehicle Applications:

Chevrolet

Avalanche (With Navigation, With OnStar, With Steering Wheel Controls): 2012 - 2013
Silverado (With Navigation, With OnStar, With Steering Wheel Controls): 2012 - 2013
Silverado Hd (With Navigation, With OnStar, With Steering Wheel Controls): 2014
Suburban (With Navigation, With OnStar, With Steering Wheel Controls): 2012 - 2014
Tahoe (With Navigation, With OnStar, With Steering Wheel Controls): 2012 - 2014

GMC

Sierra (With Navigation, With OnStar, With Steering Wheel Controls): 2012 - 2013
Sierra HD (With Navigation, With OnStar, With Steering Wheel Controls): 2012 - 2014
Yukon (With Navigation, With OnStar, With Steering Wheel Controls): 2012 - 2014
Yukon XL (With Navigation, With OnStar, With Steering Wheel Controls): 2012 - 2014

Compatibility Notes:

Does not retain factory satellite radio
For use in the following vehicles:
2012-2013 GM trucks & SUVs equipped with factory non-navigation radios must use the RP5-GM31
2012+ 2500 & 3500 trucks equipped with factory non-navigation radios must use the RP5-GM31
2014+ Silverado & Sierra 1500 series trucks must use the RP5-GM51
In Premium Amplified Systems there will be no fading capability of the aftermarket stereo
Does not retain factory XM tuner. This is built into the factory radio and is removed when the radio is removed.
Sony Bluetooth SWC commands are only supported with revision 1.6.6.14 or higher

What’s in the Box:

Radio replacement/SWC interface module (for GM LAN 29-bit databus)
Chime module
(CMX)
44-Pin harness (OS-GMLAN44)

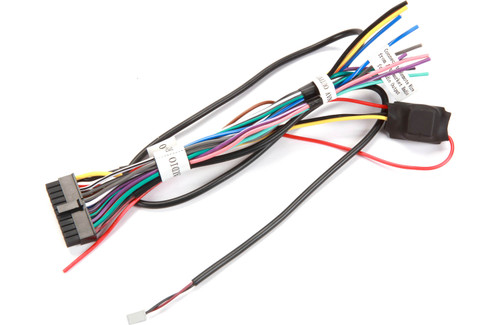

Radio harness (RP5-RADPWRAUDIO)
Steering wheel control harness (4-pin connector to 3.5mm/blue wire)
Backup camera harness

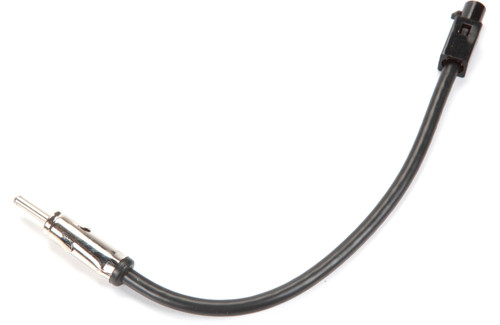

Antenna adapter
Instructions
