About: PAC RPK4-CH4101 Integrated Radio Replacement Kit with Climate Controls for Select 2013-2019 Ram Vehicles

This complete radio replacement solution provides everything needed to achieve the best possible installation of any aftermarket radio, including factory-matched buttons, knobs, and graphical user interface. Giving the RAM owner a familiar user experience with the benefits of added features provided by the 5.2" LCD touchscreen. Easily swipe between climate control, camera selection, vehicle settings, performance gauges, and vehicle information.

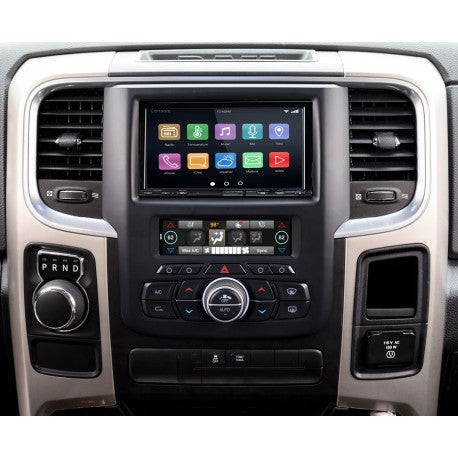

The RPK4-CH4101 is a complete radio replacement kit with integrated climate control retention for the 2013-2019 RAM trucks equipped with the 8” screen. All modules and cables are included to retain important features of the factory system including: steering wheel mounted radio controls, factory reverse camera, and AM/FM reception.

A secondary 5.2” LCD screen is added for additional vehicle control including: Climate Controls user interface retention, vehicle settings retention, factory amplifier control, settings for control of the RPK4.2-CH4101 interface, forced camera activation, ability to add additional cameras, tire pressure and vehicle gauges. Features provided by the LCD screen will vary based on the vehicle features.

Four hard buttons added to the radio dash bezel (below the 5.2” LCD screen) allow user to set presets to control functions including: specific climate controls, forced camera activation, LCD screen controls. Options for hard buttons will vary based on vehicle features and which cameras are installed. Some advanced features require additional accessories, sold separately.

Specifications:

• Allows installation of a new receiver in RAM trucks with 8" display screen
• Includes new 5.2" touchscreen display that shows:
  • Climate information
  • Camera selection
  • Performance data
  • Settings
• 4 programmable hard buttons give you quick access to functions
• Retains the use of your steering wheel audio controls
• Retains factory amp (if equipped)
• Retains vehicle cameras (multiple cameras require separate adapter); USB port
• Supplies outputs for NAV receivers (reverse, illumination, and Vehicle Speed Sensor [V.S.S.])

Vehicle Applications:

Ram

• Truck (With 8" screen): 2013 - 2018
• Truck (With 8" screen, Classic model): 2019

Compatibility Notes:

• Only compatible in vehicles equipped with the 8" screen
• Does not retain the following features in the vehicle's cluster display:
• Compass
• Phone Pop-Ups
• Navigation Pop-Ups
• Clock
• Does not retain the following uConnect features:
• WiFi Hotspot
• SOS/Assist
• Does not retain factory amplifiers Speed Controlled Volume
• If vehicle is equipped with a cargo camera or more cameras are being added beyond a reverse camera, PAC part number RPA-16P5V must be used

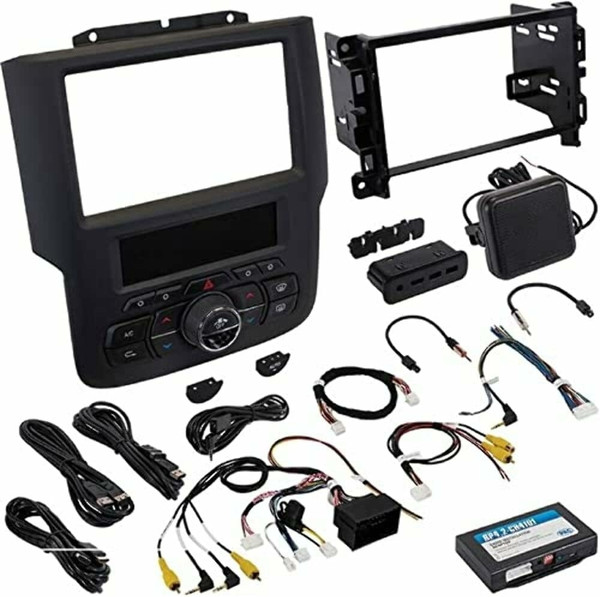

What's in the Box:

• Radio dash bezel with 5.2" LCD display
• Radio mounting shroud (trim ring)
• Single-DIN mounting pocket
• 2 Radio mounting side brackets
• 8 Pan head ISO screws
• USB Hub-CH1A (2-row dash insert)
• USB Hub-CH1B (1-row dash insert)
• Back panel for 1-row insert
• Back panel for 2-row insert
• Two 10' USB extension cables
• 10' HDMI extension cable
• 10' Stereo minijack audio extension cable
• External chime speaker with attached cable (2-pin plug)
• Dual-sided 3M tape
• 2 M4 x 30mm screws
• 2 M4 wingnuts
• Radio Installation adapter box (RP4.2-CH4101)
• Reverse camera retention harness (RPA-16P1V)
• AM/FM antenna adapter (BAA22)
• Aftermarket radio connection harness (A109-RAD-HAR)
• Interface harness (RPK4-Ch41xx-HAR)
• LCD display output harness (10P-2-10P-18-HAR)
• "Auto" button insert
• Blank button insert
• User Manual
• "Looking for Installation Instructions" sheet
