Descriptions

About: PAC RPK4-CH4103 Integrated Radio Replacement Kit with Climate Controls for Select 2014-2020 Jeep Grand Cherokee Vehicles

Jeep Grand Cherokee Integrated Radio Replacement Kit. The RPK4-CH4103 is a complete radio replacement kit with integrated climate control retention for the 2014-2020 Jeep Grand Cherokee. All modules and cables are included to retain important features of the factory system including: steering wheel-mounted radio controls, factory reverse camera, and AM/FM reception.

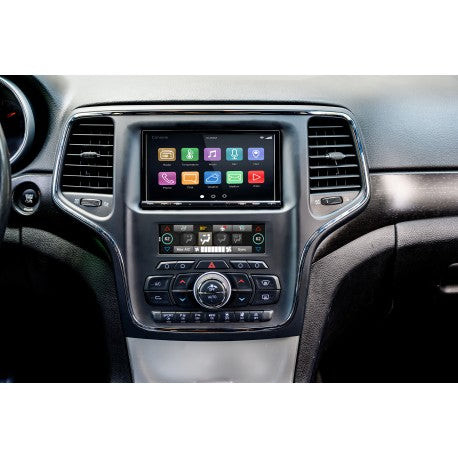

A secondary 5.2” LCD screen is added for additional vehicle features and controls including: vehicle performance gauges and information, climate controls, vehicle settings, factory amplifier control, and forced camera activation. Simplified installation and setup menus allow direct programming of camera triggers, steering wheel controls, and other settings of the kit and RP4.2-CH4103 interface. Features provided by the LCD screen will vary based on the vehicle features.

Four hard buttons added to the radio dash bezel (below the 5.2” LCD screen) allow the user to set presets to control functions including: specific climate controls, forced camera activation, and LCD screen controls. Options for hard buttons will vary based on vehicle features and which cameras are installed. Button inserts and seven button openings on the radio dash bezel allow for retention of functions that would typically be lost when replacing the factory radio. Some advanced features require additional accessories (sold separately).

Vehicle Applications:

Jeep

• Grand Cherokee: 2014 - 2020

Compatibility Notes:

• Not compatible with Trackhawk or SRT trims
• Does not retain the following features in the vehicle's cluster display:
• Compass
• Phone Pop-Ups
• Navigation Pop-Ups
• Clock
• Does not retain the following uConnect features:
• Uconnect Access Remote Start / Lock / Unlock
• Vehicle Location Service
• WiFi Hotspot
• SOS/Assist
• Does not retain factory amplifiers Speed Controlled Volume
• Does not retain SiriusXM Guardian Services
• If more cameras are being added beyond a reverse camera, PAC part number RPA-16P5V must be used

What's in the Box:

• Vehicle Accessories Button Inserts
• Radio Dash Bezel with 5.2” LCD Display
• External Chime Speaker

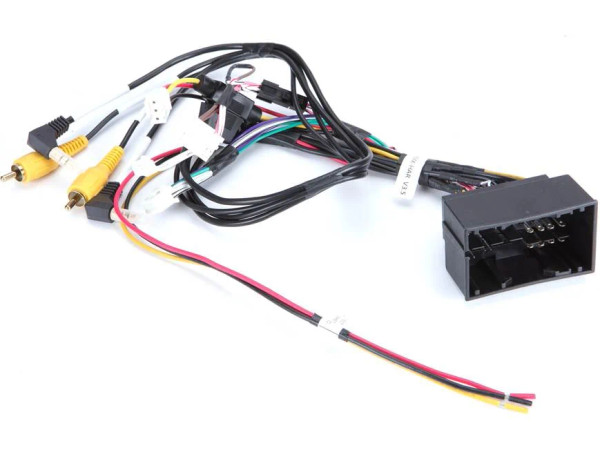

• RP4.2-CH4103 Interface Harness
• RP4.2-CH4103 Aftermarket Radio Connection Harness (A109-RAD-HAR TYPE 1-V1)
• Radio Mounting Shroud
• AM/ FM Antenna Adapter (BASDIN22)
• Radio Mounting Brackets
• Speaker Mounting Accessories
• Reverse Camera Retention Harness (RPA-16P1V)
• Single DIN Mounting Pocket
• Radio Mounting Screws
• RP4.CH4103 Radio Replacement Interface
• LCD Display Harness (10P-2-10P-18-HAR V2)
• Female 3.5mm to Male RCA adapter (X-3.5JACK3F-2RCAM)
• Male 3.5mm to Female RCA adapter (X-3.5JACK4M-2RCAF)
• CAN-Bus Connection Harness (MQS4PT-36)
• OEM USB Replacement Hub
