Descriptions

About: PAC RPK4-FD2101 Integrated Radio Replacement Kit with Climate Controls for Select 2015-2019 Ford F-Series Pickups

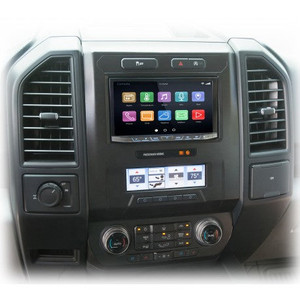

FORD Pick up owners with 8” factory radio will love this kit! Retain OE cameras, HVAC controls, steering wheel controls, and install any aftermarket radio with a beautiful factory look. The RPK4-FD2101 Integrated Installation Kit breaks ground by introducing PAC’s 5.2” ultra-wide touchscreen LCD control panel. This flush-mounted control and display panel provides quick and easy access to heating and air conditioning controls, cameras, gauges, and other vehicle information and settings. Includes: Radio mounting dash kit for double-DIN, or single-DIN, and OE-matched inserts to support all vehicle configurations, radio replacement interface, antenna adapter, USB cable, and OE camera retention cable.

The RPK4-FD2101 is a complete radio replacement kit with integrated climate control retention for the 2015-2019 Ford F-150 and 2017-2019 Ford Super Duty equipped with the 8” screen. Parts are included for vehicles with multiple upper button configurations and for vehicles with or without heated / air conditioned seats. This kit utilizes the factory HVAC control knobs for a factory look and experience. All modules and cables are included to retain important features of the factory system including: steering wheel mounted radio controls, factory reverse camera, 360-Degree camera, Pro Trailer Camera, and AM/FM reception.

A secondary 5.2” LCD screen is added for additional vehicle control including: HVAC user interface retention, vehicle settings retention, factory amplifier control, settings for control of the RPK4.2-FD2101 interface, forced camera activation, ability to add additional cameras, tire pressure and vehicle gauges. Features provided by the LCD screen will vary based on the vehicle features.

Four hard buttons added to the radio dash bezel (below the 5.2” LCD screen) allow user to set presets to control functions including: specific HVAC controls, forced camera activation, LCD screen controls (Day Mode, Night Mode, Display Off). Options for hard buttons will vary based on vehicle features and which cameras are installed. Some advanced features require additional accessories, sold separately.

Specifications:

• Only compatible in vehicles equipped with the 8" screen. Vehicles with the 4" screen use the RPK4-FD2201
• Does not retain B&O amplifier
• Compass that is displayed in the instrument cluster. The compass feature is lost.
• Parallel park assist.
• User interface for the factory massaging seats. (Massage function still available via hard button activation).
• Auxiliary input jack in 2015 vehicles.
• Ford’s WiFi-Hotspot.
• MyKey functions that limit the radio. (Functions that limit the vehicle are retained).
• Use of the radio to re-assign the door lock keypad code. (Code can still be changed via the keypad itself).
• Surround Mode
• Speed Compensated Volume.

Vehicle Applications:

 Ford

• F-150 (With 8" screen): 2015 - 2020
• F-250 (With 8" screen): 2017 - 2019
• F-350 (With 8" screen): 2017 - 2019
• F-450 (With 8" screen): 2017 - 2019
• F-550 (With 8" screen): 2017 - 2019

Compatibility Notes:

• Only compatible in vehicles equipped with the 8" screen. Vehicles with the 4" screen use the RPK4-FD2201
• Does not retain B&O amplifier
• Does not retain the following factory features:
• Compass that is displayed in the instrument cluster. The compass feature is lost.
• Parallel park assist.
• User interface for the factory massaging seats. (Massage function still available via hard button activation).
• Auxiliary input jack in 2015 vehicles.
• Ford’s WiFi-Hotspot.
• MyKey functions that limit the radio. (Functions that limit the vehicle are retained).
• Use of the radio to re-assign the door lock keypad code. (Code can still be changed via the keypad itself).
• Surround Mode
• Speed Compensated Volume

What's in the Box:

• (x2) Upper Dash Button Inserts
• RP4.2-FD2101 Interface
• Pocket (For single DIN applications)
• (x2) Radio Brackets (left and right)
• (x2) HVAC Trim Panel
• LCD Display Output Connector
• USB Extension Cable (PAC part - USB-GM1)
• Radio Dash Bezel with 5.2” LCD Display
• Reverse Camera Retention Harness
• RP4.2-FD2101 Aftermarket Radio Connection Harness
• (x6) T10 6mm screws, (x8) Phillips Head Pan Head
• Radio Mounting Screws and (x8) Dash Clips
• Rear Panel Cover
• AM / FM Antenna Adapter (BAA22)
• RP4.2-FD2101 Interface Harness (FD2A-RS-HAR)
