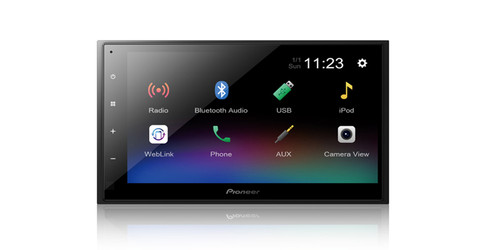

About: Pioneer DMH-342EX 6.8" Capacitive Touchscreen Digitial Media Receiver
The DMH-342EX is a 6.8" capacitive touchscreen digital media receiver designed to improve in-vehicle entertainment and connectivity with your smartphone. Enjoy features such as built-in Bluetooth® for hands-free calling and audio streaming. Audio/Video playback from USB. Safety features such as backup camera ready and much more.
Vozsis with Amazon Alexa
Vozsis is a smartphone app available for both iOS and Android OS devices that brings Amazon Alexa capability to compatible Weblink-enabled Pioneer multimedia in-dash receivers. Downloading both the Vozsis and Weblink applications makes using Alexa in your car simple – just tap-and-ask, and Alexa will respond instantly. With Alexa, you can ask to play music, hear the news, check weather, control smart home devices1, and more. Alexa lives in the cloud, so it’s always getting smarter, adding new capabilities that are delivered to your device automatically.
Hands Free Bluetooth
This receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.
Back Up Camera Input (1-Camera)
Back-Up Camera Input Ready* you to add a rear-view camera, with the system automatically switching to a full-screen image of the rearview when the car is placed in reverse gear. The full-screen image returns to the source screen last in use when the vehicle is taken out of reverse gear.
Customize Your Colors
Select among five colors (blue/red/amber/green/violet) for the display and 112 different colors to match unit illumination to your vehicle's interior lighting. Also choose from several background images to suit your mood.
FLAC
Your love of high-res audio does not need to stop at the front door. Enjoy FLAC files in your vehicle without the need to convert. Pioneer's NEX in-dash receivers were the first in the industry to offer playback of files encoded as high-res FLAC up to 192kHz/24 bit and provide playback output at CD quality. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system - put your music on the move.
General Features:
- digital multimedia receiver (does not play discs)
- 6.8" capacitive touchscreen display with variable color button illumination
- built-in Bluetooth for hands-free calling and audio streaming
- fits double-DIN dash openings
- remote control
Smartphone Features (see Details for info on compatibility):
- works with WebLink for access to select apps through the receiver's display
- Amazon Alexa voice control (Pioneer Vozsis smartphone app required)
- music file playback from iOS and Android devices with WebLink app
Audio/Video Features:

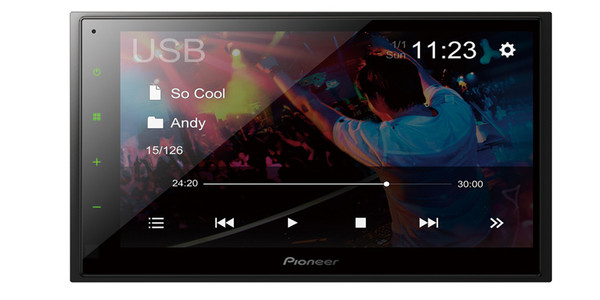

- video playback from USB drive (see Details for full capabilities)
- plays MP3, WMA, AAC, FLAC, and WAV music files
- plays FLAC audio files up to 192kHz/24-bit
- high- and low-pass filters
- 13-band graphic equalizer
Expandability:
- inputs: rear audio/video input (mini), rear USB input, rear-view camera input
- outputs: video output, 5-channel preamp outputs (2-volt front, rear, mono sub)
Other Information:
- wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- compatible with most factory steering wheel audio controls (adapter required)
- built-in MOSFET amplifier (22 watts RMS CTA-2006/50 peak x 4 channels)
What's in the Box:
- Digital receiver w/ fixed 6.8" touchscreen monitor (10A fuse)
- Wiring harness
- Remote control (CXE9605)
- CR2025 3V lithium battery (installed in remote)
- 1.5m USB Extension Cable Type A(M) to Type A(F)
- Microphone w/ visor-bracket (attached 10' cable terminated by a right-angled 2.5mm connector)
- 6 Installation Screws
- Installation Manual
- Quick Start Guide
- 1 year Warranty Sheet
