About: Pioneer DMH-T450EX 9" Capacitive Touchscreen Digital Media Receiver
The DMH-T450EX is a 9" capacitive touchscreen digital media receiver designed to improve in-vehicle entertainment and connectivity with your smartphone. Enjoy features such as built-in Bluetooth® for hands-free calling and audio streaming. Audio/video playback from USB. Safety features such as backup camera ready and much more.

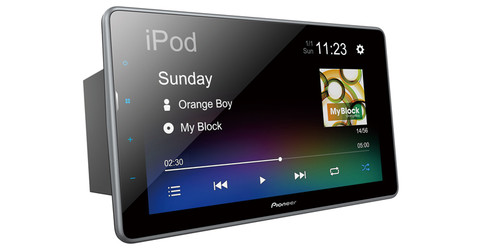

Floating Display
With a floating display configuration, the DMH-T450EX is a large display double DIN receiver that offers a full-size fitment. The floating screen offers horizontal, vertical and tilt adjustability to ensure the best fit and usability in the vehicle's dash.
Hands Free Bluetooth
This receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.
Back Up Camera Input Ready*
Back Up Camera input enables you to add a rear-view camera, with the system automatically switching to a full-screen image of the rear view when the car is placed in reverse gear. The full-screen image returns to the source screen last in use when the vehicle is taken out of reverse gear.
Customize Your Colors
Select among five colors (blue/red/amber/green/violet) for the display. Also choose from several background images to suit your mood.
Specifications:
- digital multimedia player with AM/FM tuner (does not play discs)
- 9" floating capacitive HD touchscreen display
- chassis fits double-DIN dash openings
- plays media loaded with MP3, WMA, AAC, and high-res FLAC music files
- built-in Bluetooth for hands-free calling and music streaming
Smartphone Features:
- Pioneer WebLink built in (requires phone app)
- Siri Eyes Free control with iPhone
- Amazon Alexa built in (requires Pioneer Vozsis app)
- display and command of select music, navigation, and other apps with iPhone and Android
Audio Features:
- 13-band graphic equalizer
- 6 EQ presets
- bass boost
- adjustable crossover
- subwoofer controls
Expandability:
- inputs: 3.5mm audio/video AUX in, rear USB input, backup camera input, wired remote (sold separately), Bluetooth mic (included)
- outputs: 5-channel preamp outputs (2-volt front, rear, sub), RCA video output
Other Information:
- Important Note — Monitor dimensions are 9.295" x 5.545". Before ordering, check for possible interference with your dash.
- wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- built-in amplifier (14 watts RMS/50 peak x 4 channels)
- dimensions:
- monitor: 9.295"W x 5.545"H x 2.125"D
- chassis: 7.015"W x 3.945"H x 5.605"D
What’s in the Box:
- Digital receiver w/ fixed 9" touchscreen monitor (10A fuse)
- Wiring harness
- 1.5m USB Extension Cable Type A(M) to Type A(F)
- Microphone w/ visor-bracket (attached 10' cable terminated by a right-angled 2.5mm connector)
- 6 Installation Screws
- Installation Manual
- Quick Start Guide
- 1 year warranty sheet
