Pioneer TS-A301D4 12" 500W RMS Subwoofer - Dual 4 Ohm

$128.00
$179.99
29% Off
SKU: TS-A301D4
UPC: 884938496049
Condition: New
Availability: Usually Ships In 1-2 Days
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Have more questions? Ask an Expert
Free shipping on orders over $200
30-Day Return Policy
Canadian Owned & Operated
Price Match Guarantee

Descriptions

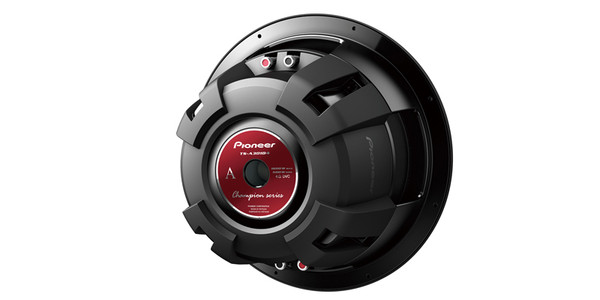

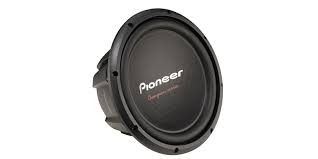

About: Pioneer TS-A301D4 12" 500W RMS Subwoofer - Dual 4 Ohm

The Champion Series subwoofers have evolved from Pioneer’s award winning “SPL Champion Edition” lineup, known for its deep and powerful bass production. The TS-A301D4 12” dual-voice coil component subwoofer features a re-designed large and powerful motor assembly for improved efficiency and sensitivity. The subwoofer baskets are optimized using a reinforced structure design for added strength and reduced vibration to deliver excellent sound quality. This subwoofer has continuous power of 500 watts with a maximum peak of 1,600 watts. It features an advanced 2-piece cone designed with a highly rigid and durable Honeycomb IMPP™ composite cone structure plus a rigid drive cone to deliver high output levels with reduced distortion.

Champion Series

The Pioneer Champion Series Subwoofers deliver powerful bass from their 12” subwoofers. These subwoofers are offered in either a dual or single 4-Ohm voice coil design with the ability to handle high power input at higher volume without compromising sound quality.

Iconic Champion Series Cosmetics

The Champion Series Subwoofers features iconic design elements that are symbolic to the subwoofer’s lineage including red graphics design decals; spider; and “Champion” cursive script.

Dual Layer Surround

A lighter and more durable surround, this subwoofer is comprised of elastic polymer and reinforced fiber to support the woofer during cone excursion for accurate and powerful bass.

Specifications:

  • 12" subwoofer with dual 4-ohm voice coils
  • Injection-molded polypropylene/glass fiber/mica cone
  • Elastic polymer/reinforced fiber surround
  • Power handling: 500 watts RMS (250 watts per coil)
  • 1600 watts peak power handling
  • Frequency response: 20-1600 Hz
  • Sensitivity: 92 dB
  • Mounting depth: 6.125"
  • Sealed box volume: 1.25 cubic feet
  • Ported box volume: 1.5 cubic feet
  • Grille not included

What's in the Box:

  • One 12" Dual 4-ohm voice coil woofer
  • Eight 1-1/8" Screws
  • Adhesive backed foam gasket
  • Manual (English/ French/ Spanish/ Portuguese)
  • Warranty information
