About: Pioneer TS-A693CH A-Series 6" x 9" 105W RMS Component Speaker System

Easily Upgrade to High Performance Without Breaking the Bank

Introducing the Pioneer A-Series speakers, your ticket to a premium audio experience that won't leave your wallet feeling lighter. These speakers not only deliver better audio details with rich bass notes, louder output, and clear and balanced audio but also do it in an affordable manner.

Their sound design purposefully matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high-impact bass that lets you hear and feel the music, all without breaking the bank. Pioneer’s OPEN & SMOOTH sound concept ensures a seamless transition between the midrange and tweeter drivers, delivering uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.

The A-Series lineup not only expands flexibility and improves acoustic performance but also does it affordably. The integrated inline crossover network allows for increased installation flexibility without the need for an outboard module. And as an added bonus, the Pioneer A Series includes multi-fit installation adapters and tweeter mounts (when applicable) to make upgrading your car's audio system easier on your budget. Enjoy premium sound without sacrificing your savings with Pioneer A-Series speakers.

Easy Installation

Included with the component system are 6" x 9" multi-fit installation adapters that expand flexibility and improve acoustic performance. Also included are tweeter mounts for surface mounting, flush mounting and specially designed multi-fit adapters for mounting in original equipment (OE) tweeter locations. With the integrated/in-line crossover network, you increase installation flexibility without the need of an outboard module. The included Pioneer multi-fit installation adapters can be easily modified to fit a variety of different applications by simply breaking off or cutting off the easy to remove tabs until the shape and mounting points match the original speaker. Replacing your factory speakers has never been easier.

OPEN & SMOOTH

Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.

Because car speakers are mostly installed in door panels and 100% of in-car installations are off-axis, this results in a challenging environment for mid and high frequency details.

Pioneer's A-Series Speakers give you a constant audio characteristic over a wide listening position resulting in better audio quality that will not fade away wherever you are in the car.

Specifications:

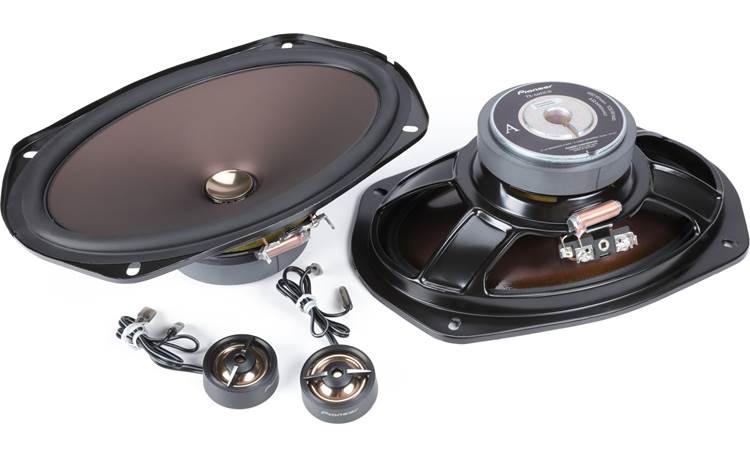

• Component speaker system includes 2 woofers and 2 tweeters

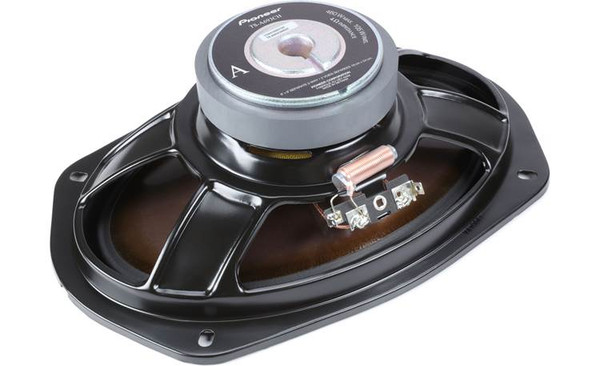

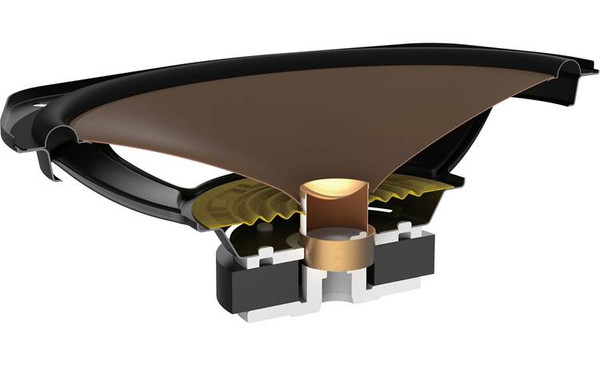

• 6" x 9" injection molded polypropylene and aramid fiber/mica-reinforced composite woofer cone with elastic polymer surround

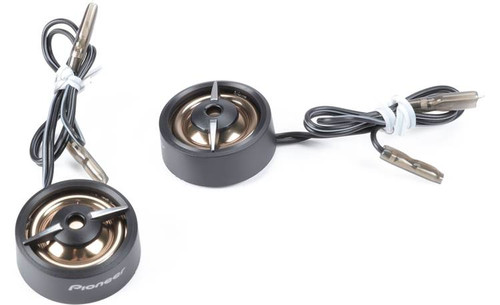

• Separate 13/16" polyethermide tweeter
• Inline crossover network (6 db at 2800 Hz)

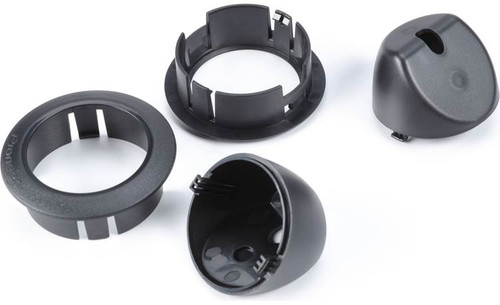

• Flush- and surface angle-mount tweeter mounting hardware included
• Handles up to 105 watts RMS (460 watts peak power)
• Frequency response: 30-58,000 Hz
• Sensitivity: 92 dB
• Impedance: 4 ohms
• Woofer top-mount depth: 2-7/8"

What’s in the Box:

• Two 2-way speakers
• 2 Bottom mount brackets

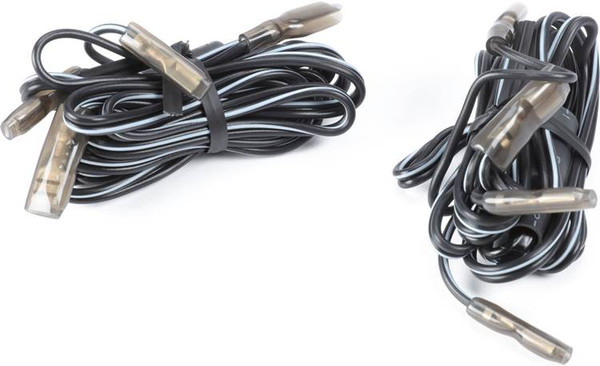

• Two 12" lengths of speaker wire (female quick slides on one end and bare wire on the other)
• Eight 1" Screws
• Warranty information
• Specs on box
