Descriptions

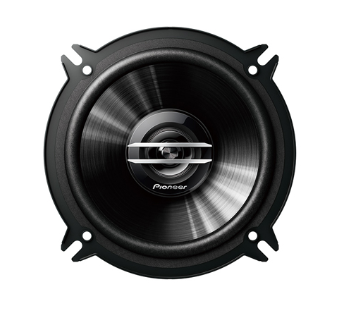

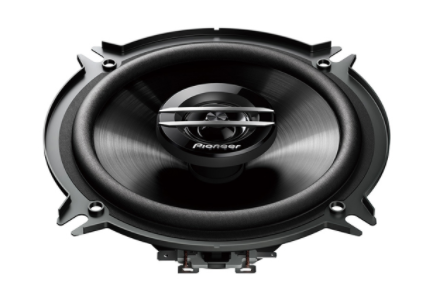

About: Pioneer TS-G1320S 5-1/4 35W RMS 2-Way Coaxial Speakers

The TS-G1320S 5-1/4" two-way speakers with 250 W max power (35 W nominal) feature Pioneer's extremely strong and lightweight Injected Molded Polypropylene (IMPP™) cone for improved sensitivity and reduced distortion. The Conex damper delivers higher power handling and deeper bass, while the 25 mm balanced dome tweeter reproduces highs with great performance and musicality. These speakers are designed with a shallow mounting depth for easy installation in a wide variety of vehicles.

Affordable & Reliable OEM Speaker Replacement

These speakers are excellent choices for replacing a bad set of factory speakers. Their two-way design features Pioneer's extremely strong and lightweight Injected Molded Polypropylene (IMPP™) with a MICA composite cone woofer for improved sensitivity and reduced distortion. You don't just get basic, run-of-the-mill features either. The Conex damper delivers higher power handling and deeper bass, while the balanced dome tweeter reproduces highs with great performance and musicality. These speakers are designed with a shallow mounting depth for easy installation.

Mica Reinforced IMPP™ Cone

An extremely rigid yet lightweight cone is essential to avoid cone failure and distortion under high power. Pioneer's IMPP™ composite cones meet this need perfectly. To further improve this rigidity-to-weight ratio, Pioneer uses an advanced process that integrates different materials, such as mica, which resonate at different frequencies, creating a perfectly balanced cone across the entire bandwidth.

PET Hard Dome Tweeter

The stable electrical and mechanical properties over a wide frequency range, as well as the strength-to-weight ratio of PET (Polyethylene Terephthalate), make it perfect for the high-frequency vibrations of the dome. We have also carefully designed the tweeter with a front diffuser to help maintain a perfect audio balance during the transition from on-axis to off-axis listening. This allows for a more balanced sound source between the different audio points in the car.

Pioneer Exclusive PFSS Spider

The Progressive Flex Suspension System (PFSS) effectively supports the voice coil by damping cone vibrations and improving the linearity of sound reproduction. Its soft part ensures smooth movement and clear sound even under high power, while its firmer part controls excessive vibrations and prevents unwanted movements that cause distortion. The goal is simple: to provide all the details of your music while maintaining control during the large excursions generated by the bass.

Specifications:

• Continuous Power handling (RMS): 35 Watts
• Maximum Peak Power Handling: 250 Watts
• Frequency Response: 33 Hz to 24 kHz
• Nominal Impedance: 4 Ohm
• Sensitivity (1W/1m): 88 dB
• System-Type: Coaxial 2-way,Balance Dome - Tweeter

Materials:

• Basket Material: Metal
• Cone Material: IMPP - with MICA
• Damper: Poly cotton
• Diaphragm Material: Polyethylene terephthalate (PET) - Tweeter
• Magnet Material: Ferrite
• Magnet Weight: 3.9 oz
• Shorting Ring Material: Copper
• Surround Material: Rubber Coated Cloth
• Surround Type: Rolled
• Voice Coil Material: Kapton
• Voice Coil wire: Copper
• Wire Terminals: Lug Type

Dimensions:

• Cut Out dimensions: 4-3/4"
• Mounting Depth: 1-3/4"
• Tweeter: 1-3/16"
