The Z is based on highly advanced technology developed by Pioneer, employing carefully selected materials and parts, benefiting from decades of automotive loudspeaker design theory and testing ability. Following Pioneer’s OPEN & SMOOTH™ sound concept, the Z series of automotive loudspeakers features smooth off-axial frequency response, superior directivity and extended frequency range engineered specifically to produce dynamic, accurate sound quality for the car. The result is a purity of sound that achieves unprecedented audio artistry.

Designed for Hi-Res Audio

The quality of music recordings available to listeners has evolved. Hi-Res Audio recordings contain significantly more data compared to a standard CD recording and require a loudspeaker that is capable of smoothly reproducing frequencies of 40kHz or higher. The Z speakers are designed to deliver sound that’s clearer, sharper and more complex - reproducing music that is closer to the original performance.

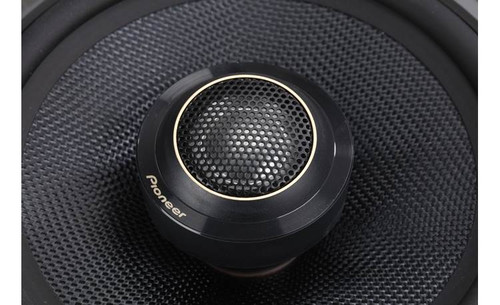

29mm Aluminum Alloy Balanced Dome Tweeter

The Z tweeter’s aluminum alloy diaphragm allows the tweeter to remain pistonic and linear at ultrasonic frequencies. The unique diaphragm shape, developed using HSDOM (Harmonized Synthetic Diaphragm Optimum Method) computer analysis, accurately controls differential vibration produced by the diaphragm and improves high frequency dispersion.

Pioneer’s Vertex Drive System improves the mechanical coupling of the voice coil and the tweeter diaphragm, reducing distortion and coloration caused by low damping and increasing power handling.

Specifications:

• 2-way car speakers (pair)
• 6-1/2" Twaron fiber woofer with butyl rubber surround
• 1-1/8" aluminum tweeter
• Handles up to 110 watts RMS (330 watts peak power)
• Frequency range: 32-96,000 Hz
• Sensitivity: 85 dB
• Top-mount depth: 2-5/8"
• Grilles not included

What’s in the Box:

• (2) 2-way speakers
• (8) 3/4" Screws
• Warranty information
• Instructions
