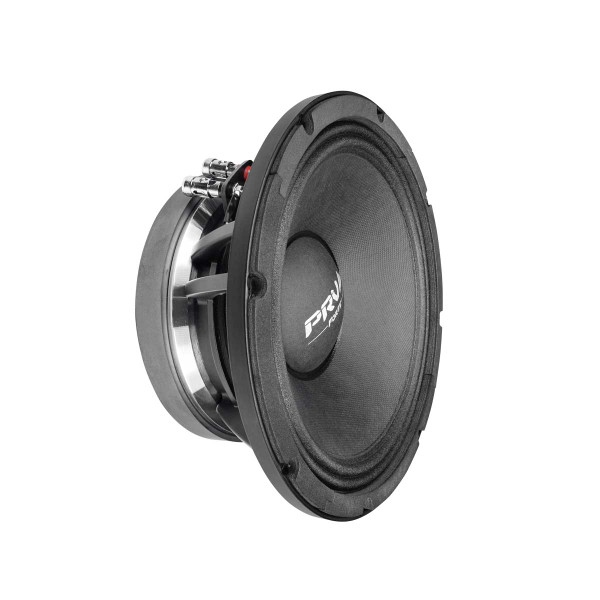

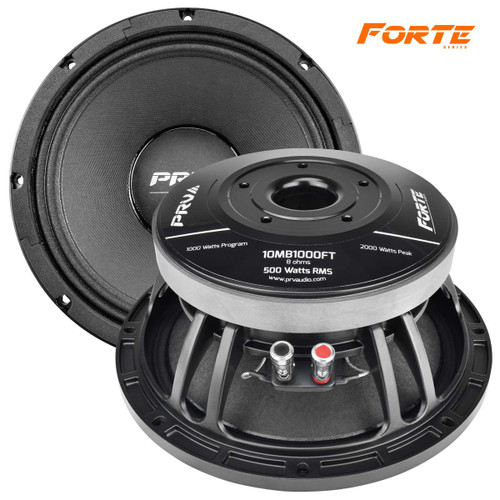

Combining high output with low distortion mid-bass response, PRV Audio’s 10MB1000FT 10″ professional mid bass loudspeaker is the perfect choice for high-powered sound reinforcement speakers, stage monitors, and even high SPL PROAudioOnWheels systems.

A great new addition to the Forte Series, where more power handling and less distortion on mid low mid bass frequencies is the key. The 10MB1000FT is a rugged 10″ mid bass that combines mid bass punch and mid clarity at remarkable SPL output with low distortion and extended mid bass response. Optimized for use in compact enclosures, this mid bass speaker is built to perform on low midbass frequencies with authority, while providing a smooth vocal response and useful response up to 7,000 Hz, making it a great choice for larger 2 and 3 way systems.

To get superior fidelity, the special composite cone is built with non-pressed paper for a reduced break-up, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker. The high sensitivity rating of 97.5 dB 1W/1M which makes it capable of generating a lot of output! This 10" is a great mid bass option for pro audio systems or high SPL automotive systems, where extremely high output is required.

The voice coil is wound on a 3" glass fiber with copper clad aluminum wire keeping weight to a minimum for an incredibly quick transient response. Engineered with 11mm of winding depth, this inside/outside voice coil provides excellent thermal and mechanical durability.

Product Highlights:

• 3″ Inside/Out copper clad aluminum wire on glass fiber former for hi-temp performance, 8 ohms
• Ventilated voice coil gap reduces power compression
• High Xmax for more midbass output
• 1000 watts continuous program power rating makes the high acoustical output
• Built to Perform! It will stand up to considerable use and abuse.

Specifications:

• Nominal Diameter: 10" (254 mm)
• Nominal Impedance: 8Ω
• Rated Power Handling (RMS): 500 Watts
• Program Power: 1000 Watts
• Sensitivity (1W/1m): 97.5 dB
• Recommended Hi Pass X-Over: 120 Hz (12 dB/Octave)
• Frequency Range at -10 dB: 75 - 7,500 Hz
• Voice Coil Diameter: 3" (65.5 mm)
• Voice Coil Wire: CCAW
• Voice Coil Winding Depth: 16.5 mm
• Former Material: Glass Fiber
• Magnetic Gap Depth: 9.5 mm
• Frame Material: Die Cast Aluminum
• Sold Individually

Thiele-Small Parameters:

• Equivalent Volume (Vas): 32.31
• Xmax: 5.87 mm
• Resonance Frequency (Fs): 75.0 Hz
• Mechanical Factor (Qms): 12.41
• Electrical Factor (Qes): 0.33
• Total Factor (Qts): 0.32
• Cone Area (Sd): 380 cm²
• Mechanical Mass (Mms): 28.10 g

• Bl Factor (Bl): 14.49 Tm
• Dc Resistance (Re): 5.3 Ohms
• Inductance (Le): 0.26 mH at 1 kHz

• Mechanical Mass Without Air (Mmd): 23.30 g

• Mechanical Compliance (Cms): 0.160 mm/N

Mounting and Shipping Information:

• Overall Diameter: 10.25" (257 mm)
• Front Mount Baffle Cutout: 9.01" (235 mm)
• Mounting Depth: 4.40” (110 mm)
• Overall Depth: 4.96” (110 mm)
• Weight: 15.0 Lbs
