For high output speaker systems, PRV Audio’s 10MB800FT mid bass is an excellent option capable of amazing performance. A great new addition to the Forte Series, where more power handling and less distortion on mid low mid bass frequencies is the key.

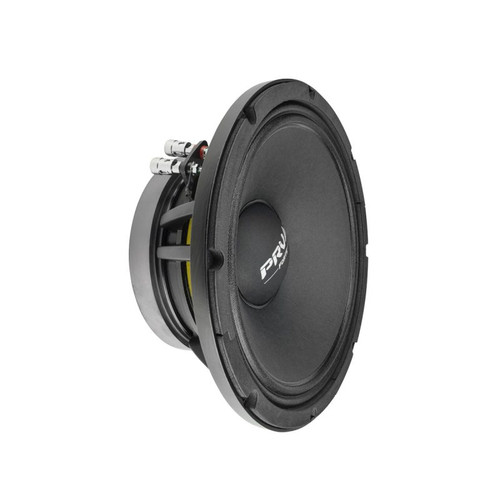

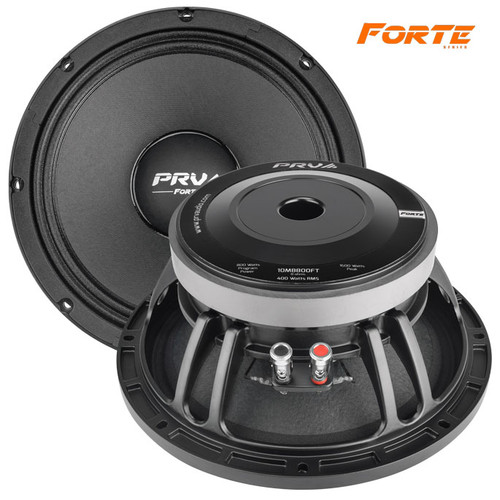

The 10MB800FT is a rugged 10″ mid bass that combines mid bass punch and mid clarity at remarkable SPL output with low distortion and extended mid bass response. Optimized for use in compact enclosures, this mid bass speaker provides a smooth vocal response with great output from 500 Hz to 1500 Hz and useful response up to 6,500 Hz, making it a great choice for larger 2 and 3 way systems.

To get superior fidelity, the special composite cone is built with non-pressed paper for a reduced break-up, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker. The high sensitivity rating of 99 dB 1W/1M which makes it capable of generating a lot of output! This 10" is a great mid bass option for pro audio systems or high SPL automotive systems, where extremely high output is required.

The voice coil is wound on a 2.5" glass fiber with aluminum wire keeping weight to a minimum for an incredibly quick transient response. Engineering with 1mm of winding depth, this inside/outside voice coil provides excellent thermal and mechanical durability.

Product Highlights:

• 2.5″ Inside/Out aluminum voice coil wound on fiberglass former for hi-temp performance, 8 ohms
• Ventilated voice coil gap reduces power compression
• High Xmax for more mid bass output
• 800 watts continuous program power rating makes the high acoustical output
• Excellent performance in 2-way or 3-way systems

Specifications:

• Nominal Diameter: 10" (254 mm)
• Nominal Impedance: 8 Ohm
• Rated Power Handling (RMS): 400 Watts
• Program Power: 800 Watts
• Sensitivity (1W/1m): 99 dB
• Recommended Hi Pass X-Over: 120 Hz (12 dB/Octave)
• Frequency Range at -10 dB: 65 - 6,500 Hz
• Voice Coil Diameter: 2.5" (65.5 mm)
• Voice Coil Wire: CCAW
• Voice Coil Winding Depth: 11.0 mm
• Former Material: Glass Fiber
• Magnetic Gap Depth: 8.0 mm
• Frame Material: Die Cast Aluminum
• Sold Individually

Thiele-Small Parameters:

• Equivalent Volume (Vas): 36.731
• Xmax: 3.50 mm
• Resonance Frequency (Fs): 64.72 Hz
• Mechanical Factor (Qms): 15.39
• Electrical Factor (Qes): 0.33
• Total Factor (Qts): 0.32
• Cone Area (Sd): 380 cm²
• Mechanical Mass (Mms): 33.20 g

• Bl Factor (Bl): 14.39 Tm
• Dc Resistance (Re): 5.1 Ohms
• Inductance (Le): 0.49 mH at 1 kHz

• Mechanical Mass Without Air (Mmd): 29.01 g

• Mechanical Compliance (Cms): 0.182 mm/N

Mounting and Shipping Information:

• Overall Diameter: 10.25" (257 mm)
• Front Mount Baffle Cutout: 9.01" (235 mm)
• Mounting Depth: 4.09” (110 mm)
• Overall Depth: 4.68” (110 mm)
• Weight: 11.01 lbs
