Descriptions

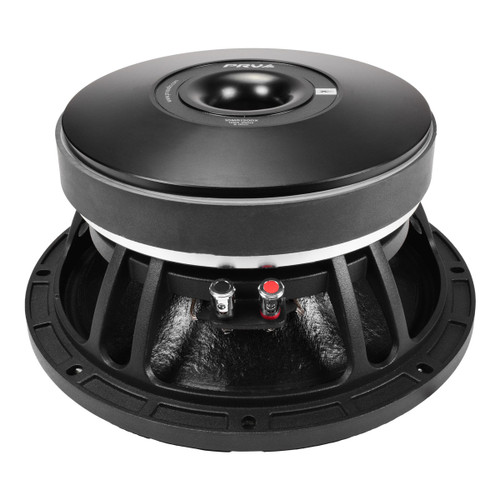

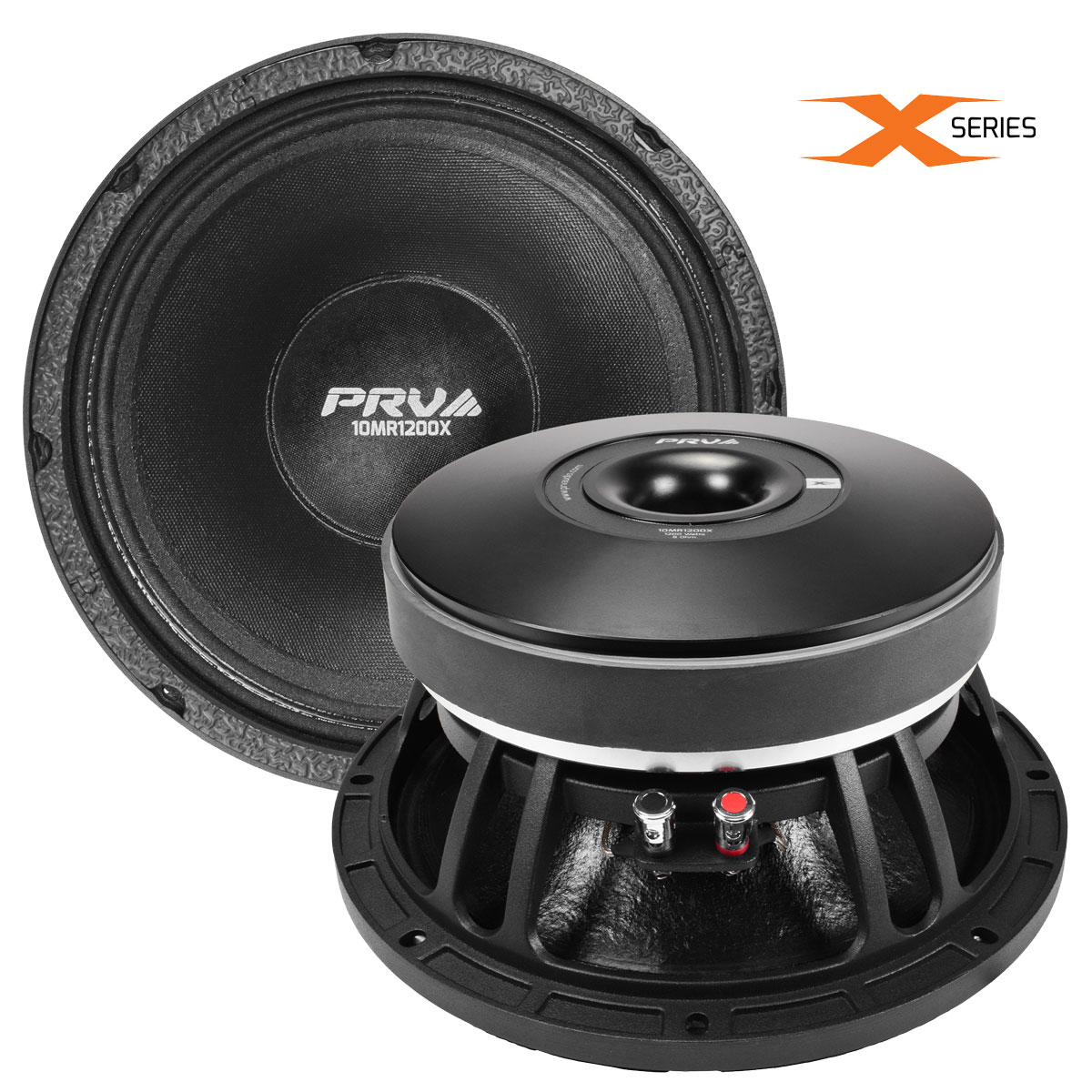

About: PRV Audio 10MR1200X 10" Midrange Loudspeaker - 8 Ohm (Each)

X-treme midrange performance is what PRV Audio’s 10MR1200X is all about. Thanks to its high 101 dB Sensitivity, this 10″ professional midrange driver is perfect for filling in the vocal range in the largest SPL systems. X Series is dedicated to delivering extreme midrange performance, capable of high output and high power handling, while delivering a smooth vocal response.

Designed for extreme car audio enthusiasts, PRV Audio’s 10MR1200X loudspeakers represent the ultimate in midrange performance. Our R&D department pushed the output limits on a midrange speaker, creating unique sound reproduction and with high output levels, making it our top of the line midrange PRO audio speaker. The light weight cone provides excellent vocal and instrument response, taking performance to the next level with high output levels over +133dB between 260 to 4,200Hz.

Designed to achieve consistent high output levels at low distortion for the best listening experience. Everything about this speaker is designed to achieve consistent high output levels, when driven to its limits. When pushed to incredible output levels, this mid can produce incredible dynamic tones and a deep vocal response that is unmatched due to its high power handling and 101 dB sensitivity.

Thanks to its 3″ inside/outside voice coil wrapped on a glass fiber former with reinforced glue for heat resistance, this mid can handle forces of 1200 watts RMS at ease. Made to be a class leading midrange in the pro audio realm, this midrange loudspeaker is best in its class for professional audio or (musical instrument) speaker system applications, and large car audio competition systems.

Product Highlights:

• 1200 Watts RMS continuous program power rating makes high acoustical output
• Ventilated voice coil gap reduces power compression for its 3″ Inside/Out voice coil wound on glass fiber former for hi-temp performance, 8 Ohm
• Detailed vocal response and pristine instrument sound reproduction
• Excellent performance in compact enclosures, and custom doors
• 101 dB – High efficiency, you do not need a lot of power to achieve extreme SPL levels

Specifications:

• Nominal Diameter: 10″ (254 mm)

• Nominal impedance: 8 Ohm
• Nominal Power Handling: 600 Watts
• Continuous Program Power (RMS): 1200 Watts
• Max Peak Power: 2400 Watts
• Sensitivity 2.83V at 1m: 101 dB
• Recommended Hi Pass Crossover: 150 Hz *12dB Per Octave Crossover
• Frequency Response at -10dB: 80 – 7,000 Hz
• Voice Coil Diameter: 3″ (76 mm)
• Voice Coil Wire: Copper
• Voice Coil Winding Depth: 10.0 mm
• Former Material: Glass Fiber
• Magnetic Gap Depth: 10.0 mm
• Frame Material: Die Cast: Aluminum
• Sold Individually

Thiele-Small Parameters:

• Equivalent Volume (Vas): 21.8 l
• Excursion (Xmax): 2.50 mm
• Free Air Resonance (Fs): 86.9 Hz
• Mechanical Factor (Qms): 6.97
• Electrical Factor (Qes): 0.30
• Total Factor (Qts): 0.29
• Cone Area (Sd): 394 cm²
• Mechanical Mass (Mms): 33.30 g
• Bl Factor (Bl): 17.5 Tm
• Dc Resistance (Re): 5.1 Ohms
• Inductance (Le): 0.52 mH at 1 kHz
• Mechanical Mass Without Air (Mmd): 28.84 g
• Mechanical Compliance (Cms): 0.100 mm/N

Mounting and Shipping Information:

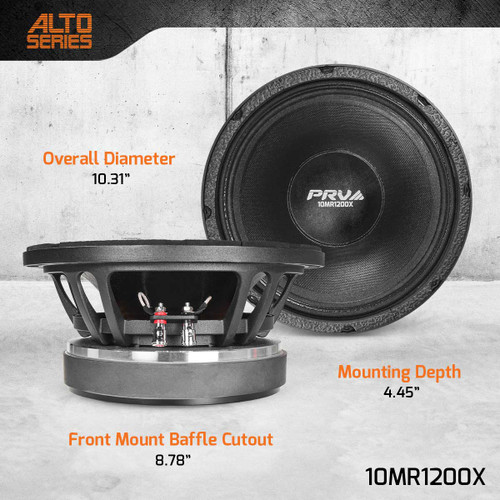

• Overall Diameter: 10.31” (262 mm)

• Front Mount Baffle Cutout: 8.78” (223 mm)
• Mounting Depth: 4.45” (113 mm)
• Overall Depth: 5.04” (128 mm)
• Net Weight: 19.18 Lbs (8.70 kg)
• Shipping Weight: 20.17 Lbs (9.15 kg)
• Carton Dimensions (W x L x H): 11.22” x 11.22” x 5.91” (285 x 285 x 150 mm)

Note:

• Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
• Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
• Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
