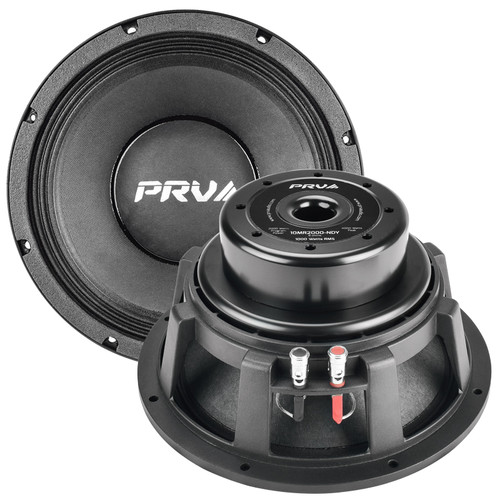

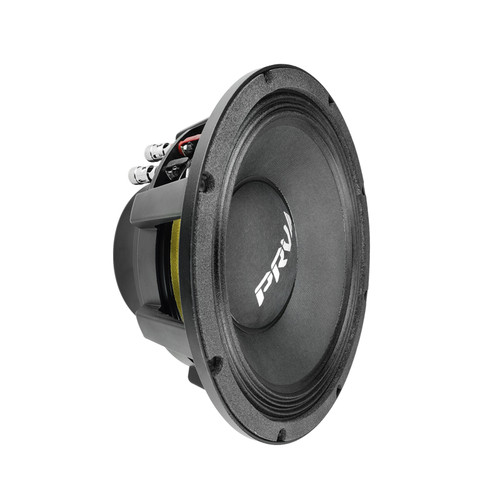

About: PRV Audio 10MR2000-NDY 10" Midrange Loudspeaker - 8 Ohm (Each)

The PRV Audio 10MR2000-NDY midrange offers outstanding durability and is our most powerful midrange loudspeaker with a 4 inch voice coil. This mid is an ideal option for high power 2 or 3-way systems. It produces excellent vocal support for stage monitors, custom car doors and stuntwalls. A powerful neodymium motor keeps size and weight to a minimum to make it easy to install this mid in any system, even when you are short on space.

All in all, the PRV Audio 10MR2000-NDY midrange is a great choice for anyone looking for a reliable, powerful midrange loudspeaker. With excellent damping characteristics, the lightweight paper cone and accordion surround give this driver smooth response from 90 to 6,500 Hz for that incredibly clear vocal response that PRV midranges are known for.

The 4″ voice coil is wound on a fiberglass former to withstand enough heat to handle 2,000 watts RMS musical power handling, when used with recommended HPF using PRV Digital Signal Processor DSP. The extensive venting through the motor and cast aluminum frame helps to dissipate that heat to keep power compression low even after extended periods of high output.

Product Highlights:

• 4″ Inside/Out copper clad voice coil wound on fiberglass former for high-temp performance – 8 Ohm
• One of the most outstanding pro audio midrange for high SPL systems, this 2000 Watts 10″ midrange is one beast of a speaker!
• Excellent performance in compact enclosures and custom car door panels.
• During hard play, the large 4″ voice coil provides very high efficiency while providing smooth and accurate midbass response.

Specifications:

• Nominal Diameter: 10" (254 mm)
• Nominal Impedance: 8 Ohms
• Nominal Power Handling: 1000 Watts
• Continuous Program Power (RMS): 2000 Watts
• Max Peak Power: 4000 Watts
• Sensitivity 2.83V at 1m: 99 dB
• Recommended Hi Pass Crossover: 160 Hz**12dB Per Octave Crossover
• Frequency Response at -10db: 90 -6,500 Hz
• Voice Coil Diameter: 4" (101 mm)
• Voice Coil Wire: Copper
• Voice Coil Winding Depth: 18.8 mm
• Former Material: Glass Fiber
• Magnetic Gap Depth: 9.0 mm
• Frame Material: Die Cast Aluminum
• Sold Individually

Thiele-Small Parameters:

• Equivalent Volume (Vas): 27.98 l
• Excursion (Xmax): 7.15 mm
• Free Air Resonance (Fs): 54.48 Hz
• Mechanical Factor (Qms): 1.54
• Electrical Factor (Qes): 0.21
• Total Factor (Qts): 0.21
• Cone Area (Sd): 373 cm²
• Mechanical Mass (Mms): 59.33 g
• Bl Factor (Bl): 21.73 Tm
• Dc Resistance (Re): 5.0 Ohms
• Inductance (Le): 0.50 mH at 1 kHz
• Mechanical Mass Without Air (Mmd): 35.96 g
• Mechanical Compliance (Cms): 0.143 mm/N

Mounting and Shipping Information:

• Overall Diameter: 10.43" (265 mm)
• Front Mount Baffle Cutout: 9.33" (237 mm)
• Mounting Depth: 5.08" (129 mm)
• Overall Depth: 5.49" (139.5 mm)
• Net Weight: 12.78 Lbs (5.8 kg)
• Shipping Weight: 14.55 Lbs (6.6 kg)

Note:

• Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
• Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
• Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
