Description

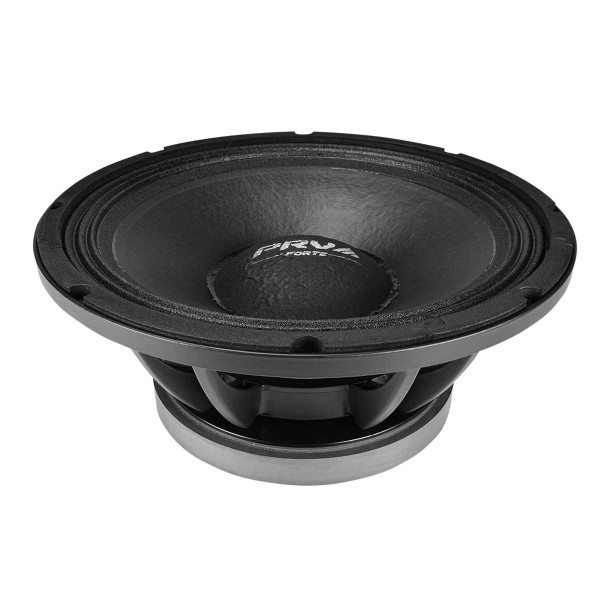

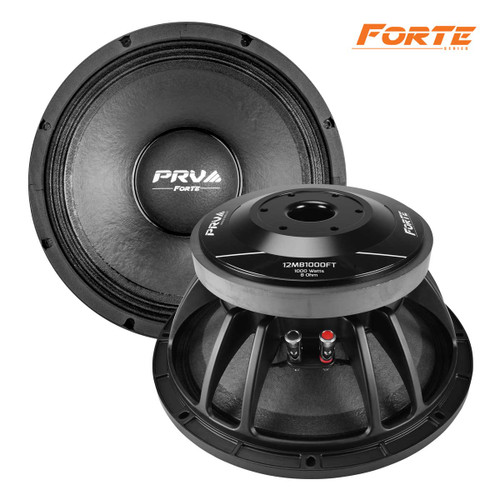

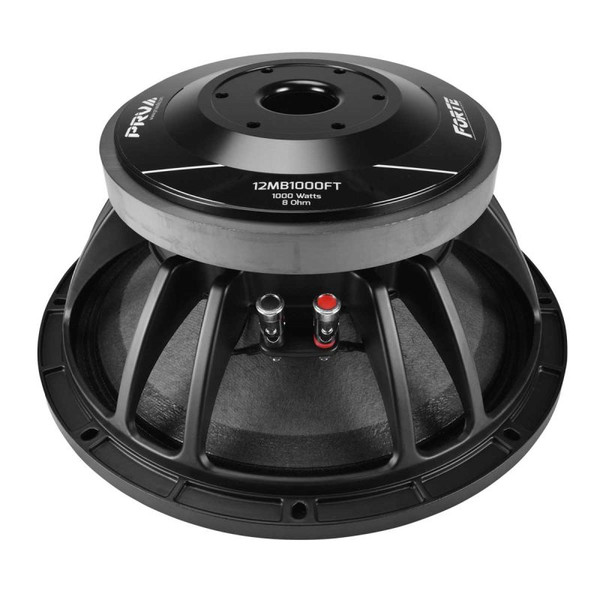

About: PRV Audio 12MB1000FT 12" Midbass Loudspeaker - 8 Ohm (Each)

For high output speaker systems, PRV Audio’s 12MB1000FT mid bass is an excellent option capable of amazing performance. A great new addition to the Forte Series, where more power handling and less distortion on mid low mid bass frequencies is the key. All this attention to detail in the 12MB1000FT makes it one impressive driver. With 97.5 dB efficiency and 1000 watts of continuous program power (RMS), this mid bass is ideally suited to be used as a stage monitor, or in auditorium, touring and outdoor systems. Also, its smooth response from 70 to 3,200 Hz makes it perfect for 2 or 3-way designs.

A rigid cast aluminum frame with narrow spokes to minimize reflections back into the cone. In addition, the frame includes force cooling system openings which allows airflow to cool the voice coil. To drive the voice coil, a large ferrite magnet with a very precise machined top and bottom plate has been used. The additional dual forced vent in the back plate of the coil allows this driver to handle up to 1000 watts RMS without issue.

Features a special high strength pulp composition paper cone designed to achieve the best possible linearity within the middle frequency range, which, together with a protective cone treatment dedicated to enhancing the dampening properties of the moving assembly, considerably improves its smooth frequency response.

The voice coil is wound on a 3″ glass fiber with aluminum wire, keeping weight to a minimum for an incredibly quick transient response. Engineered with 19 mm of winding depth, this inside/outside voice coil provides excellent thermal and mechanical durability.

Product Highlights:

  • 3″ Inside/Out aluminum voice coil wound on fiberglass former for hi-temp performance, 8 ohms
  • Ventilated voice coil gap reduces power compression
  • High Xmax for more Midbass output
  • 1,000 watts continuous program power rating makes high acoustical output
  • Excellent performance in 2-way or 3-way systems
  • Weather-resistant paper cone and dust cap

Specifications:

  • Nominal Diameter: 12″ (310 mm)

  • Nominal impedance: 8 Ohms
  • Power Handling:
    • Nominal Power Handling: 500 Watts
    • Continuous Program Power (RMS): 1000 Watts
    • Max Peak Power: 2000 Watts
  • Sensitivity 2.83V at 1m: 97.5 dB
  • Recommended Hi Pass Crossover: 110 Hz
  • Frequency Response: 70 – 3,200 Hz
  • Voice Coil Diameter: 3″ (76 mm)
  • Voice Coil Wire: Aluminum
  • Voice Coil Winding Depth: 19.0 mm
  • Former Material: Glass Fiber
  • Magnetic Gap Depth: 10.5 mm
  • Frame Material: Die Cast Aluminum
  • Sold Individually

Thiele-Small Parameters:

  • Equivalent Volume (Vas): 74.57 l
  • Excursion (Xmax): 6.87 mm
  • Free Air Resonance (Fs): 52.72 Hz
  • Mechanical Factor (Qms): 13.35
  • Electrical Factor (Qes): 0.38
  • Total Factor (Qts): 0.37
  • Cone Area (Sd): 573 cm²
  • Mechanical Mass (Mms): 55.94 g
  • Bl Factor (Bl): 16.54 Tm
  • Dc Resistance (Re): 5.7 Ohms
  • Inductance (Le): 1.00 mH at 1 kHz
  • Mechanical Mass Without Air (Mmd): 48.19 g
  • Mechanical Compliance (Cms): 0.162 mm/N

Measurements:

  • Overall Diameter: 12.40” (315 mm)
  • Front Mount Baffle Cutout: 11.10” (282 mm)
  • Mounting Depth: 5.20” (132 mm)
  • Overall Depth: 5.76” (146.5 mm)
  • Net Weight: 16.8 lbs (7.62 kg)
  • Shipping Weight: 18.51 lbs (8.40 kg)
  • Carton Dimensions (W x L x H): 13.79” x 13.79” x 7.09” (350 x 350 x 180 mm)

Note:

  • Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
  • Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
  • Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
