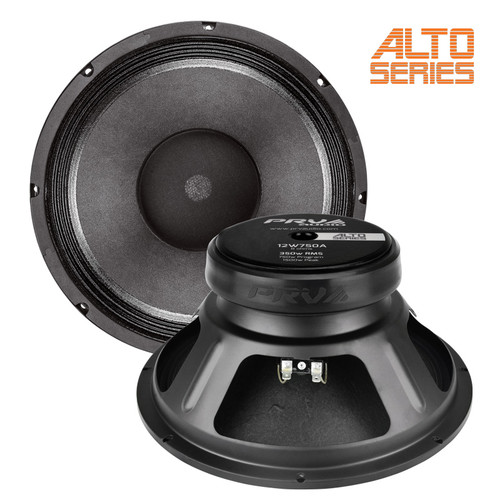

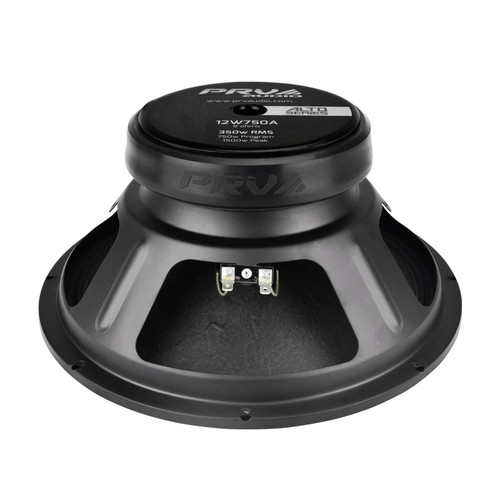

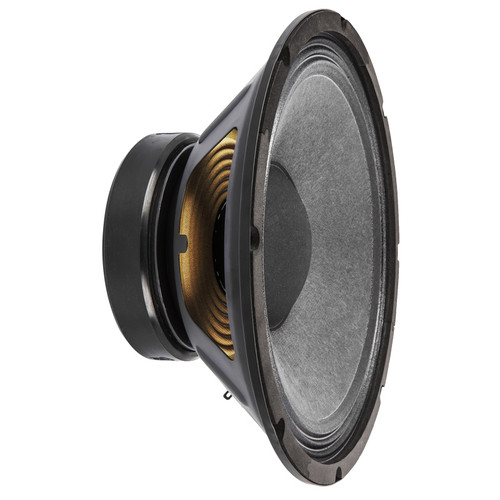

The 12W750A 12" Professional 8 ohm woofer from PRV Audio is designed to create a smooth, natural sound while remaining extremely dynamic. The wide frequency response, 55 to 5,000 Hz, makes this driver suitable for use as a woofer in a two-way of even a midrange in large three-way speaker system.

You’ll find that the 12W750A works remarkably well in vented and sealed cabinet, as a woofer in two-way speakers or midrange in three-way systems, and even shines when used as a bass guitar speaker. Upgrade your speakers to the Alto Series today and find out why PRV Audio is one of the fastest growing speaker brands today!

Audio experts and professional musicians know that tone can make or break a performance, in the studio or on the stage. That’s why PRV Audio’s Alto Series 12″ 12W750A was painstakingly voiced to create a natural, smooth sound while remaining dynamic.

PRV Audio's 12W750A 12" 8 ohm woofer is designed for use in a studio or on stage, but would also work well in any system where high efficiency or high output is the goal. This driver has been painstakingly voiced to create a natural tone with low distortion at high levels. Featuring a multi-roll surround, large flat spider, and vented pole piece to reduce compression, the 12W750A is capable of high output while remaining linear. Also, the vented pole also improves cooling of the 2.5" voice coil allowing continuous power handling of up to 375 watts.

Product Highlights:

• 97 dB sensitivity and 375 watt power handling for tremendous output levels
• Designed to work great in sealed and vented enclosures
• Extended top-end response for use with small horn drivers
• Great for use in guitar and bass guitar cabinets

Specification:

• Nominal Diameter: 12" (305 mm)
• Nominal Impedance: 8Ω
• Rated Power Handling (RMS): 375 Watts
• Program Power: 750 Watts
• Sensitivity (1W/1m): 97 dB
• Recommended Hi Pass X-Over: 200 Hz (12 dB/Octave)
• Frequency Range at -10 dB: 60 - 5,500 Hz
• Voice Coil Diameter: 2.5" (65.5 mm)
• Voice Coil Wire: CCAW
• Voice Coil Winding Depth: 11.5 mm
• Former Material: Kapton
• Magnetic Gap Depth: 8.5 mm
• Frame Material: Stamped Steel
• Sold Individually

Thiele-Small Parameters:

• Equivalent Volume (Vas): 81.00 l
• Xmax: 3.62 mm
• Resonance Frequency (Fs): 59.87 Hz
• Mechanical Factor (Qms): 17.45
• Electrical Factor (Qes): 0.44
• Total Factor (Qts): 0.43
• Cone Area (Sd): 585 cm²
• Mechanical Mass (Mms): 41.72 g
• BL Factor (BL): 14.29 Tm
• Dc Resistance (Re): 5.8 Ohms
• Inductance (Le): 0.71 mH at 1 kHz
• Mechanical Mass Without Air (Mmd): 33.71 g

• Mechanical Compliance (Cms): 0.169 mm/N


Mounting and Shipping Information:

• Overall Diameter: 12.20" (310 mm)
• Front Mount Baffle Cutout: 11.06" (281 mm)
• Mounting Depth: 5.12” (130 mm)
• Overall Depth: 5.12" (130 mm)
• Weight: 10.85 Lbs (4.92 kg)

• Sold Individually
• Replacement Cone Kit: RK12W750A
