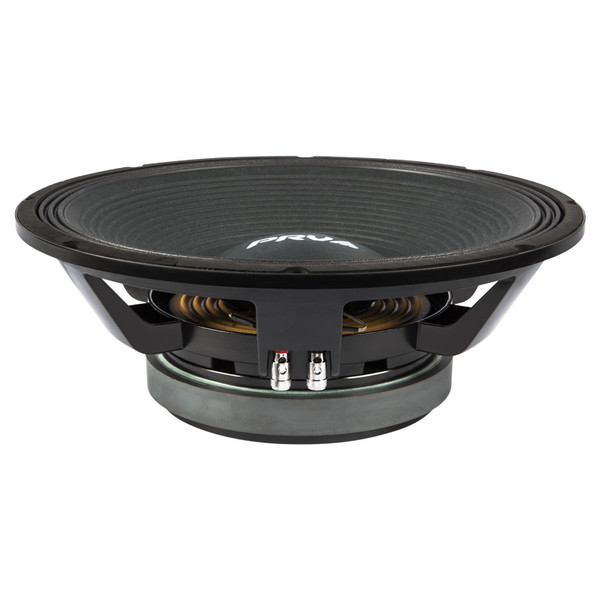

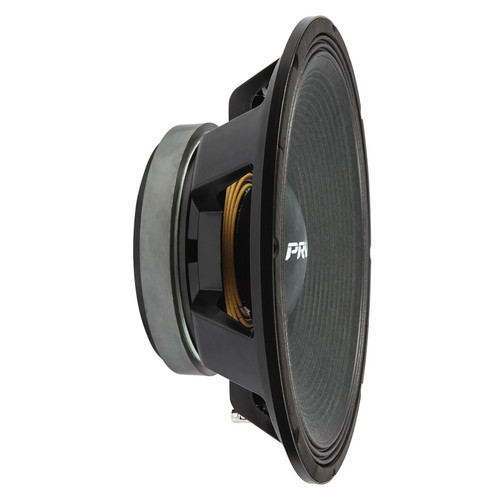

About: PRV Audio 15W1600 15" 800W RMS Pro Audio Woofer - 8 Ohm (Each)

The 15W1600 offers you an incredible punch to your pro audio system. The 15W1600 loudspeaker will offer you subwoofer type performance while enhancing your mid-bass stability and has a specially designed force air ventilation system to ensure proper cooling for long hard play. The durable spider and woven surround offer precise movement along its impressive 7.6mm Xmax.

Non-pressed pulp cone offers a natural classic tone found in most high-end PA speaker cabinets, making the 15W1600 an ideal woofer or subwoofer option for both ported and sealed speakers.
The upgraded and advanced voice coil and cone material along with its ability to reproduce extremely low frequencies will forever make this your woofer of choice to replace your existing drivers. The large 4” voice coil accepts the abuse of higher power systems while staying cool with the side forced air cooling system.

Product Highlights:

• Nominal Impedance: 8 Ohms
• Rated AES Power Handling (RMS): 800 Watts
• Program Power: 1600 Watts
• Sensitivity (1W/1m): 97 dB
• Voice Coil Diameter: 4″

Specifications:

• Nominal Diameter: 15″ (381 mm)

• Nominal impedance: 8 Ohms
• Rated AES Power Handling (RMS): 800 Watts
• Program Power: 1600 Watts
• Sensitivity 2.83V at 1m: 97 dB
• Recommended Hi Pass Crossover: 75 Hz *12dB Per Octave Crossover
• Frequency Response at -10dB: 55 – 2,500 Hz
• Voice Coil Diameter: 4″ (101 mm)
• Voice Coil Wire: Copper
• Voice Coil Winding Depth: 18.5 mm
• Former Material: Kapton
• Magnetic Gap Depth: 9.0 mm
• Frame Material: Die Cast: Aluminum
• Sold Individually

Thiele-Small Parameters:

• Equivalent Volume (Vas): 91.19 l
• Excursion (Xmax): 7.0 mm
• Free Air Resonance (Fs): 53.6 Hz
• Mechanical Factor (Qms): 13.77
• Electrical Factor (Qes): 0.44
• Total Factor (Qts): 0.42
• Cone Area (Sd): 984 cm²
• Mechanical Mass (Mms): 130.8 g
• Bl Factor (Bl): 24.13 Tm
• Dc Resistance (Re): 5.8 Ohms
• Inductance (Le): 1.78 mH at 1 kHz
• Mechanical Mass Without Air (Mmd): 113.3 g
• Mechanical Compliance (Cms): 0.067 mm/N

Mounting and Shipping Information:

• Overall Diameter: 15.27” (388 mm)

• Front Mount Baffle Cutout: 14.05” (357 mm)
• Mounting Depth: 5.51” (140 mm)
• Overall Depth: 5.98” (152 mm)
• Net Weight: 24.71 Lbs (11.20 kg)
• Shipping Weight: 27.17 Lbs (12.32 kg)
• Carton Dimensions (W x L x H): 16.14” x 16.14” x 7.48” (410 x 410 x 190 mm)
