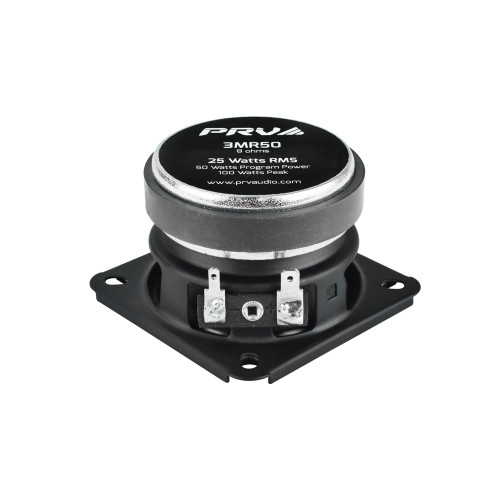

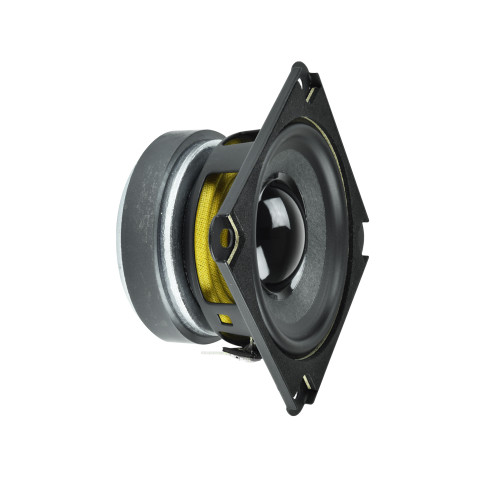

PRV Audio 3MR50 3" 25W RMS Midrange Loudspeaker - 8 Ohm

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$49.99

$34.99

SKU:: 3MR50
Condition:: New
Availability:: Usually Ships in 1-2 Days
Shipping:: Calculated at Checkout

PRV Audio 3MR50 3" 25W RMS Midrange Loudspeaker - 8 Ohm

$49.99

$34.99

Description
Shipping & Returns

Description

About: PRV Audio 3MR50 3" 25W RMS Midrange Loudspeaker - 8 Ohm (Each)

PRV Audio's impressive 3MR50 3" full range driver is excellent for use in portable speaker systems, high output line arrays, or even car audio applications. With nearly 86 dB efficiency and 25 watt power handling this driver is capable of incredible output for its size.

Product Highlights:

Naturally damped paper cone with rubber surround for smooth response
Large spider improves linearity at high excursion
Rubber surround for use in less than optimum conditions
High efficiency and power handling allows surprising output for its size

Specifications:

Nominal Diameter: 3" (75 mm)
Nominal Impedance: 8 Ohms
Rated AES Power Handling (RMS): 25 Watts
Program Power: 50 Watts
Sensitivity 2.00V at 1m: 86 dB
Recommended Hi Pass Crossover: 250Hz**12dB Per Octave Crossover
Frequency Response at -10db: 220 - 19 000 Hz
Voice Coil Diameter: 0.75" (19 mm)
Voice Coil Wire: Copper
Voice Coil Winding Depth: 6.60 mm
Former Material: Nomex
Magnetic Gap Depth: 4.0 mm
Frame Material: Stamped Steel
Sold individually

Thiele-Small Parameters

Equivalent Volume (Vas): 0.286 l
Excursion (Xmas): 2.30 mm
Free Air Resonance (Fs): 211.0 Hz
Mechanical Factor (Qms): 4.15
Electrical Factor (Qes): 1.12
Total Factor (Qts): 0.88
Cone Area (Sd): 28.3 cm²
Mechanical Mass (Mms): 2.21 g
Bl Factor (Bl): 3.84 Tm
Dc Resistance (Re): 5.6 Ohms
Inductance (Le): 0.152 mH at 1 kHz
Mechanical Mass Without Air (Mmd): 2.13 g
Mechanical Compliance (Cms): 0.256 mm/N

Mounting and Shipping Information:

Overall Diameter: 2.83" (72 mm)
Front Mount Baffle Cutout: 2.59" (66 mm)
Mounting Depth: 1.59" (40.5 mm)
Overall Depth: 1.75" (44.5 mm)
Net Weight: 0.72 Lbs (0.33 kg)
Shipping Weight: 0.77 Lbs (0.35 kg)
