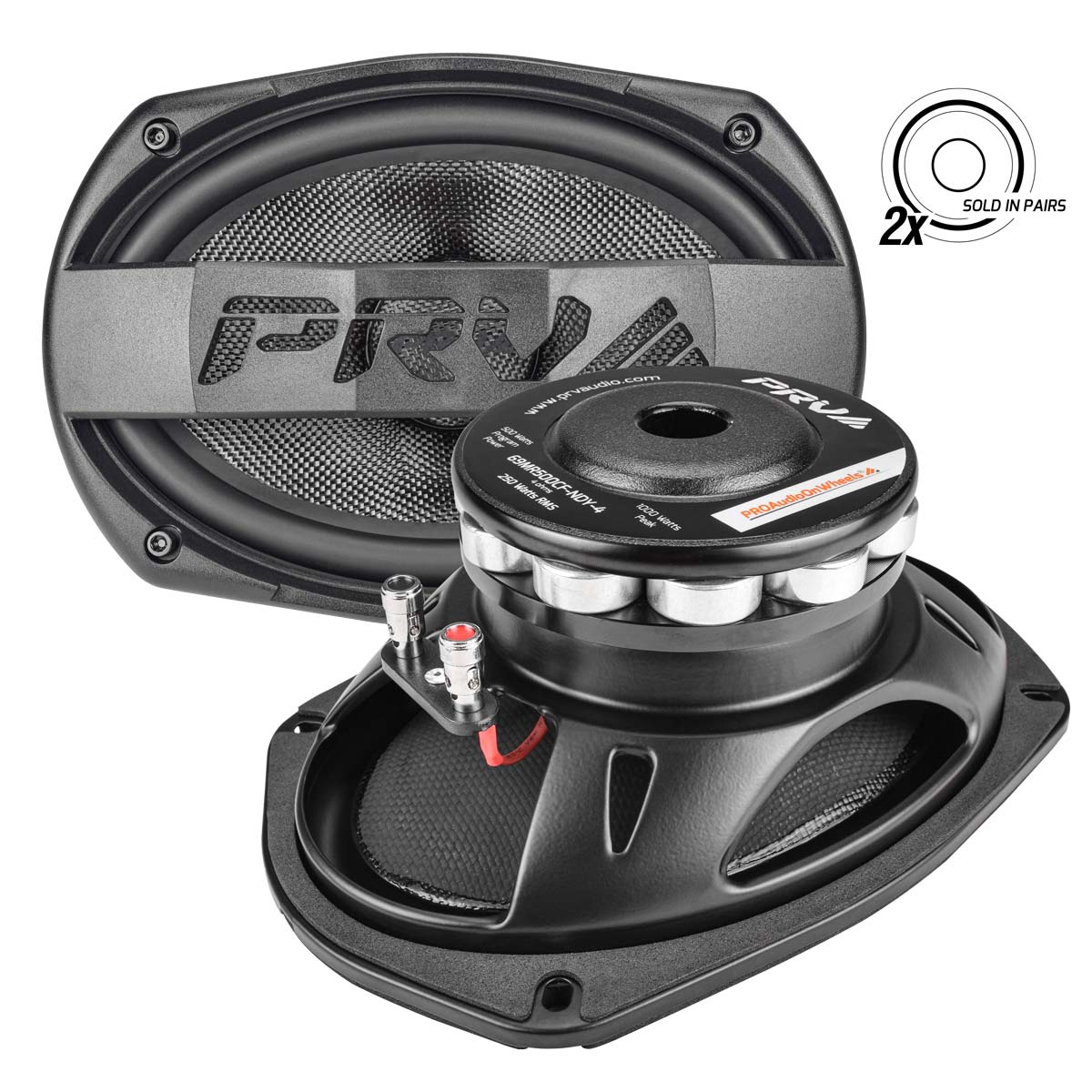

About: PRV Audio 69MR500CF-NDY-4 6x9" Neodymium Midrange Loudspeaker - 4 Ohm (Pair)

The MR500CF-NDY series was designed for power sports applications, featuring a water-resistant design to unsure optimum performance taking into account the effects of the outdoor environment. Ideal for upgrading your sound system in your boat, UTV, 4-wheeler or motorcycle, this mid range speaker becomes the new standard in vocal reproduction for outdoor applications. Constructed of high-end materials like a carbon fiber cone, high temperature voice coil, and huge neodymium magnet, this driver produces natural sound with remarkably low distortion.

The suspension design of this mid range features the single layer spider – which connects to the coil former with premium stitched lead wires, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling, complemented by a high-power neodymium radial slugs that immerse the voice coil in a strong magnetic field. You can expect excellent off-axis and transient response from this water-resistant mid range for a great sound stage and realistic sound reproduction.

Built for loud, clear vocal performance in tight, compact spaces, PRV Audio’s 69MR500CF-NDY-4 neodymium-powered midrange features a sensitivity of 96 dB (2.83V/1m) and weighs about 4.16 pounds! 4 ohm impedance. Pro Audio On Wheels Series is dedicated to delivering outstanding pro audio performance to your motorsports application. A bumped back plate, vented magnet system, vented pole piece, high-temperature voice coil, allow for high power handling while protecting this driver from extreme transient power peaks.

Product Highlights:

• Water resistant with true PRO audio mid range performance
• Damped carbon fiber cone lowers moving mass and minimizes resonances
• Low inductance and extended frequency response

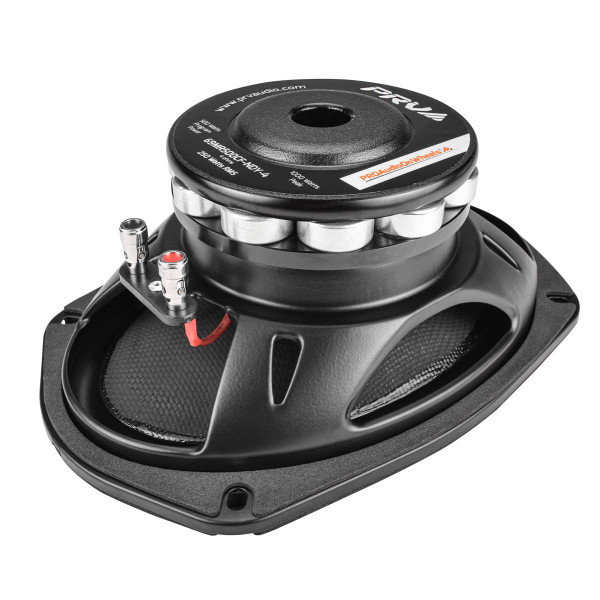

• Powerful neodymium magnet structure features distortion canceling fixtures
• Fast transient response, minimal tonal coloration, and deep dynamic mid bass
• Sold in pairs - grill and screws are included

Specifications:

• Nominal Diameter: 6"x9" (152 x 228 mm)
• Nominal Impedance: 4 Ohms
• Nominal Power Handling: 250 Watts
• Continuous Program Power (RMS): 500 Watts
• Max Peak Power: 1000 Watts
• Sensitivity 2.00V at 1m: 96 dB
• Recommended High Pass Crossover: 110 Hz* *12 dB Per  Octave Crossover
• Frequency Response at -10dB: 100-13,000 Hz
• Voice Coil Diameter: 2" (50.8 mm)
• Voice Coil Wire: CCAW
• Former Material: Kapton
• Frame Material: Stamped Steel
• Sold as a pair

Thiele-Small Parameters

• Equivalent Volume (Vas): 8.95 l
• Excursion (Xmax): 3.25 mm
• Free Air Resonance (Fs): 91.0 Hz
• Mechanical Factor (Qms): 15.81
• Electrical Factor (Qes): 0.36
• Total Factor (Qts): 0.35
• Cone Area (Sd): 216 cm²
• Mechanical Mass (Mms): 22.34 g
• Bl Factor (Bl): 10.92 Tm
• Dc Resistance (Re): 3.4 Ohms
• Inductance (Le): 0.05 mH at 1 kHz
• Mechanical Mass Without Air (Mmd): 20.54 g
• Mechanical Compliance (Cms): 0.136 mm/N

Mounting and Shipping Information:

• Overall Diameter: 6.44" x 9.29" (163.5 x 236 mm)
• Front Mount Baffle Cutout: 5.87" x 8.62" (149 x 219 mm)
• Mounting Depth: 3.39" (86 mm)
• Overall Depth: 3.74" (95 mm)
• Net Weight: 3.86 Lbs (1.75 kg)
• Shipping Weight: 9.70 Lbs (4.4 kg)
• Carton Dimensions (W x L x H): 15.3" x 10.8" x 5.31" (390 x 275 x 135 mm)

Note:

• Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
• Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
• Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
