About: PRV Audio 6BUNDLE BULLET Two 6.5” Midrange Speakers with Two Shallow Super Tweeters

The 6BUNDLE BULLET offers the best components for audio enthusiasts seeking high performance output. To elevate your audio experience, this bundle features 2x 6.5″ mids and 2x super tweeters. These components deliver exceptional clarity, detail, and dynamic sound, creating an outstanding sound stage and realistic sound reproduction. Designed for high-performance, this combination sets a new standard in Pro Audio On Wheels® value for bullet speakers. New type of high efficient midrange speakers and tweeters that are able to give high levels of output for your custom door.

The “bullet” phase plug is made from pure aluminum acting as a radiator cooling system for the voice coil and machined to perfection for even sound dissipation. Beyond good looks, this cone is extremely light, providing excellent damping to keep an incredibly natural yet accurate sound. Its M-roll cloth surround, combined with an optimized fiber pressed paper cone, ensure the speaker’s frequency response is smooth and extends to high range making an easy transition to the super tweeters.

Recommended 2200 Watts Amplifier Setup and Crossover Points:

Recommended HPF using PRV Digital Signal Processor DSP when using recommend RMS musical power ( without clipping ) per component:

• Speakers – 135 Hz at 18 dB per octave filter Crossover / BT18
• Tweeters – 7000 Hz at 18 dB per octave filter Crossover / LR18

Another way to install them:

Maximum power handling when wiring speaker and tweeter together:

If you wire them together in parallel, you will be limited in power handling because the tweeter shares power with the speaker. The built-in capacitor helps attenuate low frequencies, but it cannot eliminate all low tones in this application. Using an amplifier crossover at 100 Hz (12 dB per octave HPF crossover), they will only be able to handle 200 Watts RMS without distortion per channel. In this application you can use a QS800.4 2 Ohm – wiring one speaker + one tweeter per channel.

Feature:

• The best components for audio enthusiasts seeking high performance output
• Bundle is Built to Perform at Wide Frequency Range: 145 – 20,000 Hz
• 1080 Watts RMS BUNDLE – Speaker Handles 420 Watts RMS and Tweeter Handles 120 Watts RMS – Endurance at Loudest Volumes / 4 Ohm Impedance.
• TW500Ti-4 tweeters has a 3.80” faceplate make it easy to install giving it a wide dispersion rate. Screws included. Built-in capacitor acts as a crossover and attenuates the low frequencies for smooth frequency response.
• 6.5” Midrange Pro Audio Loudspeaker – Guarantees High Output Levels at Low Power

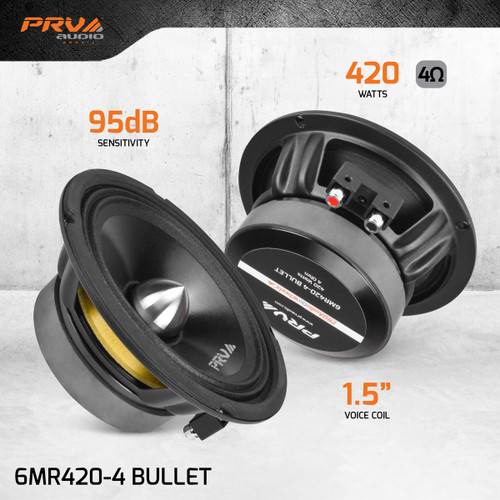

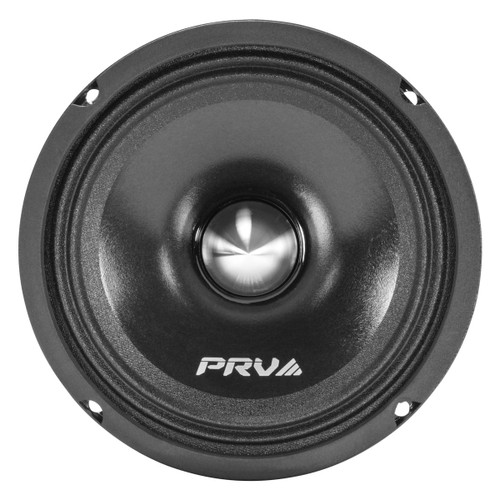

Speaker Specifications:

• Model Number: 6MR420-4 BULLET
• Nominal Diameter: 6″ (152 mm)
• Nominal impedance: 4 Ohm
• Nominal Power Handling: 210 Watts
• Continuous Program Power (RMS): 420 Watts
• Max Peak Power: 840 Watts
• Sensitivity: 2.83V at 1m: 95 dB
• Recommended Hi Pass Crossover For Full Power Handling: 145 Hz 12db Per Octave Crossover
• Frequency Response: 125 – 12,500 Hz
• Voice Coil Diameter: 1.5” (38 mm)
• Voice Coil Wire: CCAW
• Voice Coil Winding Depth: 8.50 mm
• Former Material: Kapton
• Magnetic Gap Depth: 6.0 mm
• Frame Material: Stamped Steel

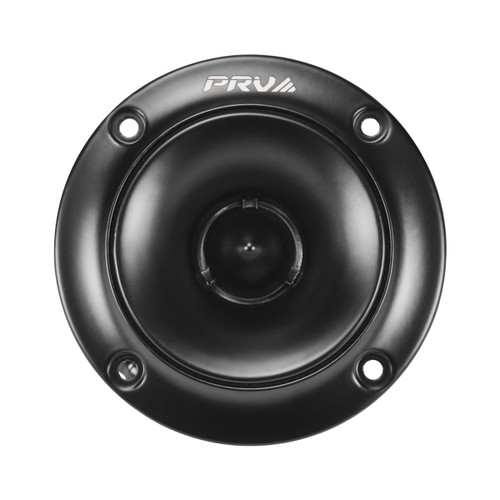

Tweeter Specifications:

• Model Number: TW500Ti-4
• Nominal impedance: 4 Ohm
• Nominal Power Handling: 60 Watts
• Continuous Program Power (RMS): 120 Watts
• Max Peak Power: 240 Watts
• Sensitivity: 2.83V at 1m104 dB
• Recommended Hi Pass Crossover For Full Power Handling: 6000 Hz 12db Per Octave Crossover
• Frequency Response: 4,500-20,000Hz
• Voice Coil Diameter: 1.0″ (25 mm)
• Voice Coil Wire: CCAW
• Voice Coil Former Material: Kapton®
• Diaphragm Material: Titanium
• Flux Density: 1.24 T
• Magnet Material: Ferrite

Thiele-Small Parameters:

• Equivalent Volume (Vas): 6.39 l
• Excursion (mathematical) (Xmax): 2.75 mm
• Free Air Resonance (Fs): 116.9 Hz
• Mechanical Factor (Qms): 12.75
• Electrical Factor (Qes): 0.69
• Total Factor (Qts): 0.65
• Cone Area (Sd): 152 cm²
• Mechanical Mass (Mms): 9.33 g
• Bl Factor (Bl): 5.82 Tm
• Dc Resistance(Re): 3.4 Ohm
• Inductance (Le): 0.11 mH at 1 kHz
• Mechanical Mass Without Air (Mmd): 8.27 g
• Mechanical Compliance (Cms): 0.198 mm/N

Mounting and Shipping Information:

• Speaker Overall Diameter: 6.57” ( 167mm)
• Speaker Front Mount Baffle Cutout: 5.75″ (146 mm)
• Speaker Mounting Depth: 2.68” (68 mm)
• Speaker Overall Depth: 2.95” (75 mm)
• Speaker Net Weight: 4.20 Lbs (1.90 kg)

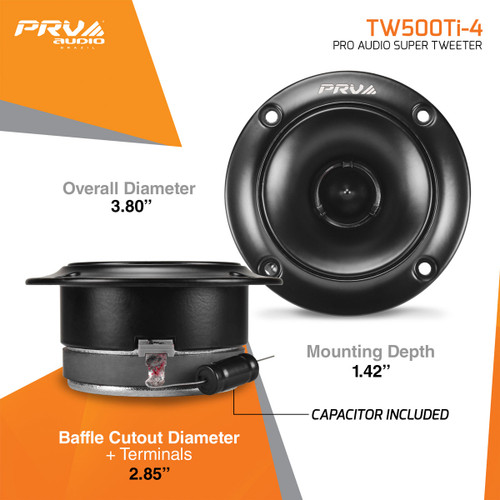

• Tweeter Overall Depth: 1.73″ (44 mm)
• Tweeter Mounting Depth: 1.42″ (36 mm)
• Tweeter Overall Diameter: 3.80″ (96.5 mm)
• Tweeter Cutout Diameter + Terminals: 2.85″ (72.5 mm)
• Tweeter Net Weight: 1.0 lb (0.45 kg)
• Tweeter Shipping Weight: 2.53 lb (1.15 kg)
• Carton Dimensions (W x L x H): 8.86″ x 5.53″ x 2.16” (225 x 115 x 55 mm)
