Descriptions

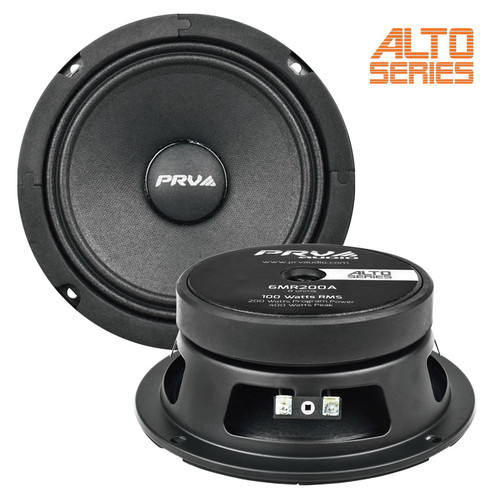

About: PRV Audio 6MR200A 6.5" 100W RMS Midrange Speaker - 8 Ohm (Each)

The 6MR200A mid range speaker is the evolution of the 6MR250A, this unit was designed with the goal of producing the highest possible output from a compact design without sacrificing performance, with only 2.24″ mounting depth. To ensure absolute signal fidelity, a cloth sealed surround is combined with a carefully crafted Kevlar-loaded paper cone. Additionally, a vented pole piece allows heat to escape for reduced power compression. Use this midrange in professional 3-way live sound cabinets, as a high output car audio door speaker, or as a midrange in a bass guitar speaker.

Product Highlights:

• Nominal Impedance: 8 Ohms
• Rated AES Power Handling (RMS): 100 Watts
• Program Power: 200 Watts
• Sensitivity (1W/1m): 94 dB
• Voice Coil Diameter: 1.5″

Specifications:

• Nominal Diameter: 6″ (152 mm)
• Nominal impedance: 8 Ohms
• Rated AES Power Handling (RMS): 100 Watts
• Program Power: 200 Watts
• Sensitivity 2.83V at 1m: 94 dB
• Recommended Hi Pass X-Over: 150 Hz (12 dB/Octave)
• Frequency Response at -10dB: 155 – 11,000 Hz
• Voice Coil Diameter: 1.5″ (38 mm)
• Voice Coil Wire: Copper
• Voice Coil Winding Depth: 8.0 mm
• Former Material: Kapton
• Magnetic Gap Depth: 5.5 mm
• Frame Material: Stamped Steel
• Sold Individually

Thiele-Small Parameters:

• Equivalent Volume (Vas): 3.16 l
• Xmax: 2.62 mm
• Free Air Resonance (Fs): 114.1 Hz
• Mechanical Factor (Qms): 13.16
• Electrical Factor (Qes): 1.28
• Total Factor (Qts): 1.17
• Cone Area (Sd): 137 cm²
• Mechanical Mass (Mms): 10.1 g
• Bl Factor (Bl): 6.27 Tm
• Dc Resistance (Re): 5.5 Ohms
• Inductance (Le): 0.26 mH at 1 kHz
• Mechanical Mass Without Air (Mmd): 9.02 g
• Mechanical Compliance (Cms): 0.120 mm/N

Mounting and Shipping Information:

• Overall Diameter: 6.59″ (167.5 mm)
• Front Mount Baffle Cutout: 5.69″ (144.5 mm)
• Mounting Depth: 2.24″ (57 mm)
• Overall Depth: 2.5″ 63.5 mm)
• Weight: 3.52 Lbs (1.60 kg)
