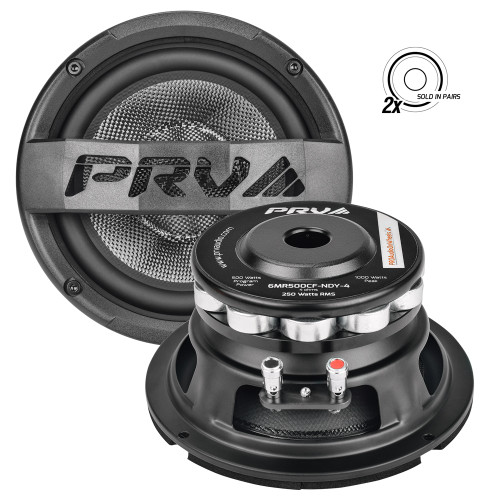

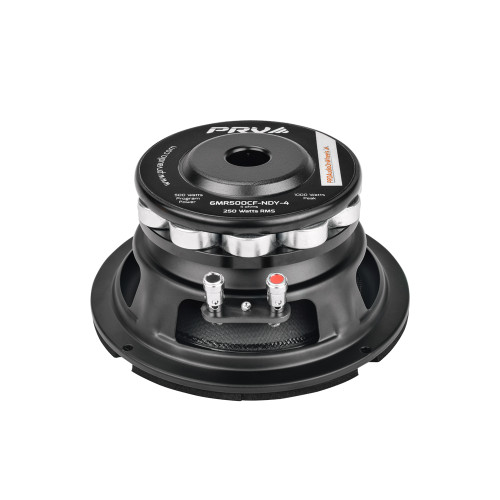

About: PRV Audio 6MR500CF-NDY-4 6" Neodymium Midrange Loudspeaker - 4 Ohm (Pair)

The 6MR500CF-NDY series was designed for Power sports applications, featuring a water-resistant design to ensure optimum performance taking into account the effects of the outdoor environment! Ideal for upgrading your sound system in your boat, UTV, 4-wheeler, or motorcycle, this midrange speaker becomes the new standard in vocal reproduction for outdoor applications. Constructed of high-end materials like a carbon fiber cone, high-temperature voice coil, and huge neodymium magnet, this driver produces natural sound with remarkably low distortion.

The tailored response of the 6MR500CF-NDY-4 comes from its exotic yet supremely engineered carbon fiber cone that delivers the signature PRV audio combination of depth and accuracy on vocal reproduction. Beyond good looks, this cone is extremely light, surprisingly rigid, and provides excellent damping to keep narrow peaks under control, resulting in an incredibly natural yet accurate sound. A rubber surround and large flat spider suspend the cone and keep it linear through the limits of excursion with minimal restriction, further improving dynamics and transients.

The suspension design of this midrange features the single layer spider – which connects to the coil former with premium stitched lead wires, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling, complemented by a high-power neodymium radial slugs that immerse the voice coil in a strong magnetic field. You can expect excellent off-axis and transient response from this water-resistant midrange for a great sound stage and realistic sound reproduction.

Built for loud, clear vocal performance in tight, compact spaces, PRV Audio’s 6MR500CF-NDY-4 neodymium-powered midrange features a sensitivity of 96 dB (2.83V/1m) and weighs about 3.85 pounds! 4 ohm impedance. Pro Audio On Wheels® Series is dedicated to delivering outstanding pro audio performance to your motorsports application. A bumped back plate, vented magnet system, vented pole piece, high-temperature voice coil, allow for high power handling while protecting this driver from extreme transient power peaks.

Product Highlights:

• Water resistant carbon fiber cone and rubber surround to handle the outdoor environment
• Low inductance for extended frequency response and minimal distortion
• 96 dB and capable of handling 250 watts RMS for high output capability
• Includes rugged grills to protect the drivers cone without affecting frequency response
• Sold as a pair

Specifications:

• Nominal Diameter: 6″ (152 mm)
• Nominal impedance: 4 Ohms
• Nominal Power Handling: 250 Watts
• Continuous Program Power (RMS): 500 Watts
• Max Peak Power: 1000 Watts
• Sensitivity 2.83V at 1m: 96 dB
• Recommended Hi Pass Crossover: 95 Hz** **12db Per Octave Crossover
• Frequency Response at -10dB: 95 – 11,000 Hz
• Voice Coil Diameter: 2.0″ (50.8 mm)
• Voice Coil Wire: CCAW
• Voice Coil Winding Depth: 10.0 mm
• Former Material: Kapton
• Magnetic Gap Depth: 7.0 mm
• Frame Material: Stamped Steel

Thiele-Small Parameters:

• Equivalent Volume (Vas): 5.14 l
• Excursion (Xmax): 3.25 mm
• Free Air Resonance (Fs): 92.5  Hz
• Mechanical Factor (Qms): 12.85
• Electrical Factor (Qes): 0.29
• Total Factor (Qts): 0.28
• Cone Area (Sd): 143 cm²
• Mechanical Mass (Mms): 16.49 g
• Bl Factor (Bl): 10.73 Tm
• Dc Resistance (Re): 3.5 Ohms
• Inductance (Le): 0.185 mH at 1 kHz
• Mechanical Mass Without Air (Mmd): 15.52 g
• Mechanical Compliance (Cms): 0.179 mm/N
