PRV Audio’s Alto Series were carefully crafted and voiced to reproduce a natural, smooth sound while remaining dynamic. To get the superior fidelity, a special composite cone is built with non-pressed paper (visible on the back side) for reduced break-up, smooth frequency response and to keep the moving mass low, increasing the efficiency.

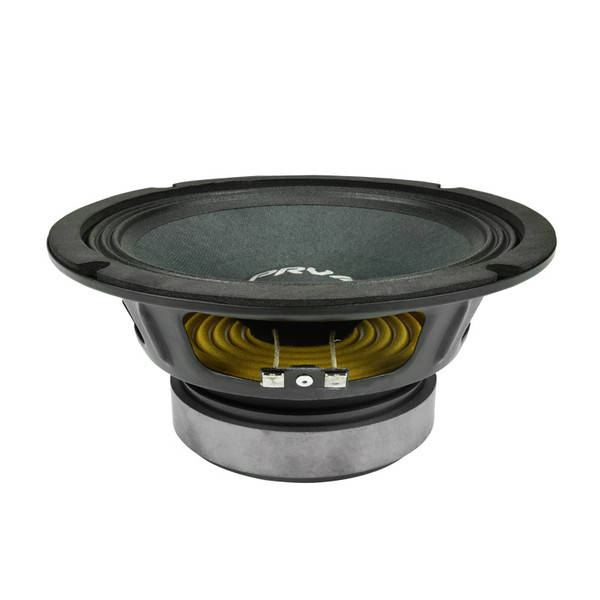

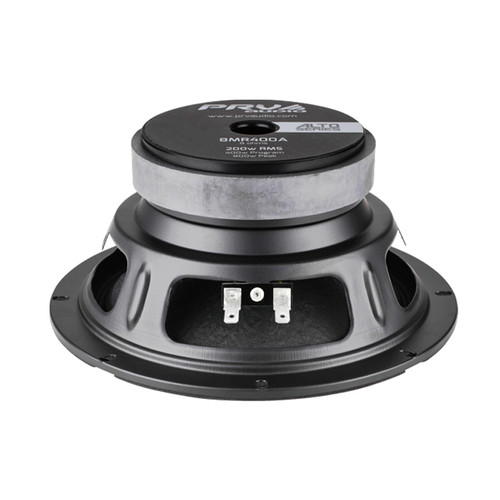

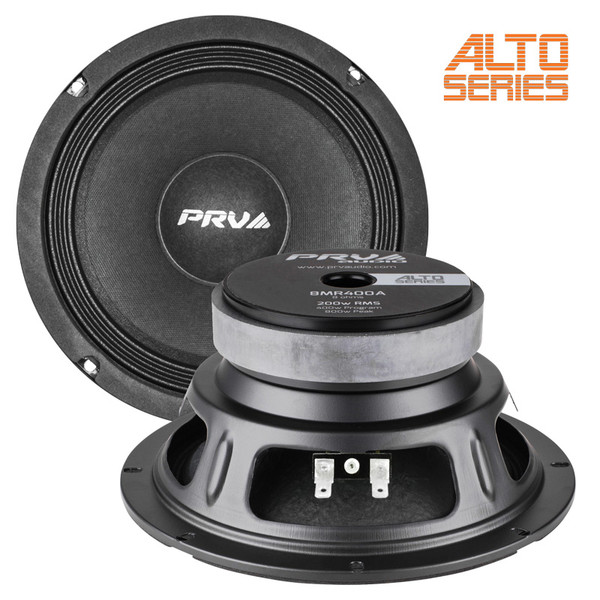

The 8MR400A delivers outstanding vocal reproduction with high output. It provides extended frequency response and smooth sound with very low distortion. Handling up to 200 watt RMS and with 94 dB sensitivity this midrange will be right at home in any home, automotive, or professional high SPL design.

Product Highlights:

• Nominal Impedance: 8 Ohms
• Rated AES Power Handling (RMS): 200 Watts
• Program Power: 400 Watts
• Sensitivity (1W/1m): 94 dB
• Voice Coil Diameter: 1.5″

 Specifications:

• Nominal Diameter: 8" (203 mm)
• Nominal Impedance: 8Ω
• Rated Power Handling (RMS): 200 Watts
• Program Power: 400 Watts
• Sensitivity (1W/1m): 94 dB
• Recommended Hi Pass Crossover: 260 Hz (12 dB/Octave)
• Frequency Range at -10 dB: 80 - 8,500 Hz
• Voice Coil Diameter: 1.5" (38 mm)
• Voice Coil Wire: CCAW
• Voice Coil Winding Depth: 8.8 mm
• Former Material: Kapton
• Magnetic Gap Depth: 5.5 mm
• Frame Material: Stamped Steel
• Sold Individually

Thiele-Small Parameters:

• Equivalent Volume (Vas): 22.19 l
• Xmax: 3.00 mm
• Resonance Frequency (Fs): 79.14 Hz
• Mechanical Factor (Qms): 10.79
• Electrical Factor (Qms): 0.97
• Total Factor (Qts): 0.89
• Cone Area (Sd): 243 cm²
• Mechanical Mass (Mms): 15.1 g
• Bl Factor (Bl): 6.8 Tm

• Dc Resistance (Re): 6.1 Ohms

• Inductance (Le): 0.2 mH at 1 kHz

• Mechanical Mass Without Air (Mmd): 12.91 g

• Mechanical Compliance (Cms): 0.268 mm/N


Mounting and Shipping Information:

• Overall Diameter: 8.22" (209 mm)
• Front Mount Baffle Cutout: (7.12" (181 mm)
• Mounting Depth: 3.52" (89.5 mm)
• Overall Depth: 3.7" (89.5 mm)
• Weight: 4.41 Lbs (2.00 kg)
