The MR500CF-NDY series was designed for Power sports applications, featuring a water-resistant design to ensure optimum performance taking into account the effects of the outdoor environment!

Ideal for upgrading your sound system in your boat, UTV, 4-wheeler, or motorcycle, this mid range speaker becomes the new standard in vocal reproduction for outdoor applications. Constructed of high-end materials like a carbon fiber cone, high-temperature voice coil, and huge neodymium magnet, this driver produces natural sound with remarkably low distortion.

The suspension design of this midrange features the single layer spider – which connects to the coil former with premium stitched lead wires, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling, complemented by a high-power neodymium radial slugs that immerse the voice coil in a strong magnetic field. You can expect excellent off-axis and transient response from this water-resistant mid range for a great sound stage and realistic sound reproduction.

Built for loud, clear vocal performance in tight, compact spaces, PRV Audio’s 8MR500CF-NDY-4 neodymium-powered midrange features a sensitivity of 96 dB (2.83V/1m) and weighs about 4.16 pounds! 4 ohm impedance. Pro Audio On Wheels Series is dedicated to delivering outstanding pro audio performance to your motorsports application. A bumped back plate, vented magnet system, vented pole piece, high-temperature voice coil, allow for high power handling while protecting this driver from extreme transient power peaks.

Product Highlights:

• Water Resistant with true PRO audio midrange performance
• Damped carbon fiber cone lowers moving mass and minimizes unwanted resonances
• Low inductance and extended frequency response
• Powerful neodymium magnet structure features distortion-canceling fixtures
• Fast transient response, minimal tonal coloration, and deep, dynamic midbass

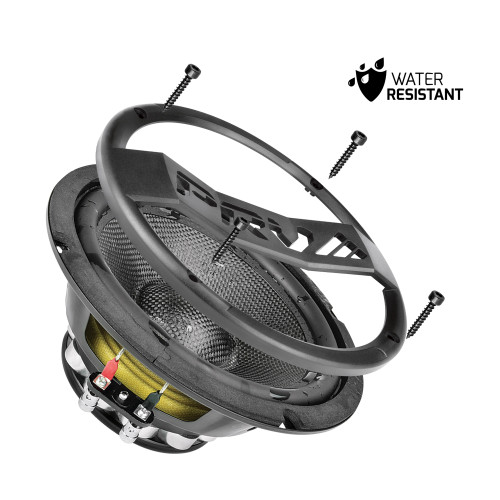

• Sold in pairs – Grill and screws are included
• Also available on 6″ – 6MR500CF-NDY-4

Specifications:

• Nominal Impedance: 4Ω
• Nominal Power Handling: 250 Watts
• Continuous Program Power (RMS): 500 Watts
• Max Peak Power: 1000 Watts
• Sensitivity 2.83V at 1m: 96 dB
• Frequency Range: 95 - 10,000 Hz
• Recommended Hi Pass X-Over: 85 Hz (12 dB/Octave)
• Xmax: 3.25 mm
• Voice Coil Diameter: 2.0"
• Former Material: Kapton
• Frame Material: Stamped Steel
• Weight: 4.16 Lbs
• Mounting Depth: 3.34" (85 mm)

Thiele-Small Parameters:

• Equivalent Volume (Vas): 21.82
• Xmax: 3.25 mm
• Resonance Frequency (Fs): 58.70 Hz
• Mechanical Factor (Qms): 11.00
• Electrical Factor (Qes): 0.24
• Total Factor (Qts): 0.23
• Cone Area (Sd): 227 cm²
• Mechanical Mass (Mms): 24.27 g

• Bl Factor (Bl): 11.49 Tm
• Dc Resistance (Re): 3.5 Ohms
• Inductance (Le): 0.079 mH at 1 kHz

• Mechanical Mass Without Air (Mmd): 22.33 g

• Mechanical Compliance (Cms): 0.303 mm/N

Mounting and Shipping Information:

• Overall Diameter: 8.27" (210 mm)
• Front Mount Baffle Cutout: 7.28" (185 mm)
• Mounting Depth: 3.34” (85 mm)
• Overall Depth: 3.74” (95 mm)
• Weight: 4.16lbs (1.89 kg)

Note:

• Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
• Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
• Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
