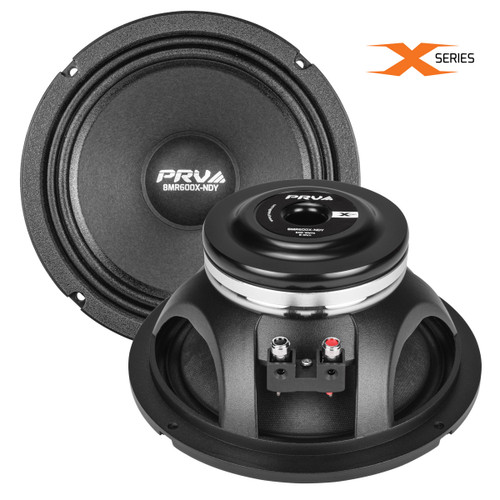

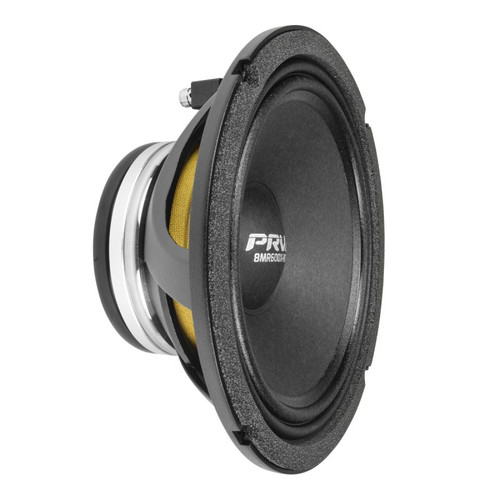

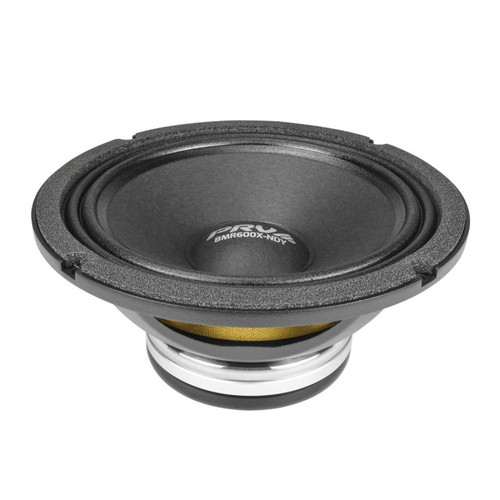

X-treme midrange performance is what PRV Audio’s 8MR600X-NDY is all about. Made to be a class leading midrange in the pro audio realm, this speaker has a high output sensitivity of 98.5 dB and only weighs 5 pounds. This midrange loudspeaker is optimized for professional audio or (musical instrument) speaker system applications, and large car audio competition systems.

The powerful halo neodymium magnet assembly assures high flux concentration. Its magnetic structure significantly improves thermal connection and heat dissipation. This increases power handling and lowers power compression, with an optimum power to weight ratio. Capable of high output and low distortion, this midrange is perfect for filling in the significant midrange response in any high output sound system. Great addition to the X-Series.

A coated woven surround offers smooth, precise geometry during hard play. The light weight cone provides excellent linear response taking performance to the next level with its wide frequency bandwidth, high output levels between 3,200 to 10,000Hz Making the 8MR600X-NDY an excellent solution for high sound quality two or three-way systems.

Extreme car audio enthusiasts will find PRV Audio’s 8MR600X-NDY to be the perfect 8″ midrange door speaker, capable of handling up to 600 watts RMS power (with a suggested 125 Hz, 18 dB/octave high pass filter in place tuned with PRV DSP)! Its high energy, rare-earth neodymium motor, combined with other fine materials, were chosen to increase sensitivity and power handling to deliver the finest details in audio, as demanded by most audiophiles and custom builders in the car audio.

Product Highlights:

• 2″ DUAL layer CCAW voice coil wound on a Kapton former, 8 Ohm
• This specially designed loudspeaker is assembled with top of the line components for long lasting play, even during intense use.
• Low inductance and extended frequency response with wide directivity
• 600 watts RMS continuous program power rating makes high acoustical output
• Ideal solution for compact full-range applications demanding high acoustic output
• Detailed vocal response and pristine instrument sound reproduction

Specifications:

• Nominal Diameter: 8″ (203 mm)
• Nominal Impedance: 8 Ohm
• Nominal Power Handling: 300 Watts
• Continuous Program Power (RMS): 600 Watts
• Max Peak Power: 1000 Watts
• Sensitivity (1W/1m): 98.5 dB
• Recommended Hi Pass X-Over: 145 Hz (12 dB/Octave)
• Frequency Range at -10 dB: 95 - 10,500 Hz
• Voice Coil Diameter: 2" (50 mm)
• Voice Coil Wire: CCAW
• Voice Coil Winding Depth: 11 mm
• Former Material: Kapton
• Magnetic Gap Depth: 7.00 mm
• Frame Material: Die Cast Aluminum
• Sold Individually

Thiele-Small Parameters:

• Equivalent Volume (Vas): 12.58
• Excursion (Xmax): 3.75 mm
• Resonance Frequency (Fs): 87.6 Hz
• Mechanical Factor (Qms): 17.78
• Electrical Factor (Qes): 0.30
• Total Factor (Qts): 0.29
• Cone Area (Sd): 232 cm²
• Mechanical Mass (Mms): 19.73 g

• Bl Factor (Bl): 15.17 Tm
• Dc Resistance (Re): 6.3 Ohms
• Inductance (Le): 0.03 mH at 1 kHz

• Mechanical Mass Without Air (Mmd): 17.72 g

• Mechanical Compliance (Cms): 0.167 mm/N

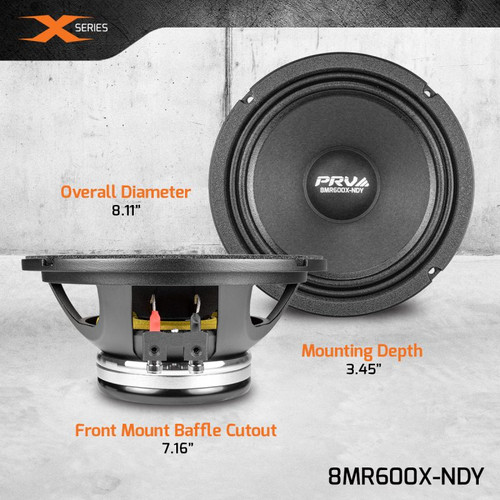

Mounting and Shipping Information:

• Overall Diameter: 8.11" (206 mm)
• Front Mount Baffle Cutout: 7.16" (182 mm)
• Mounting Depth: 3.45” (87.6 mm)
• Overall Depth: 3.81” (96.7 mm)
• Weight: 5.00 lbs (2.26 kg)

Note:

• Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
• Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
• Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
