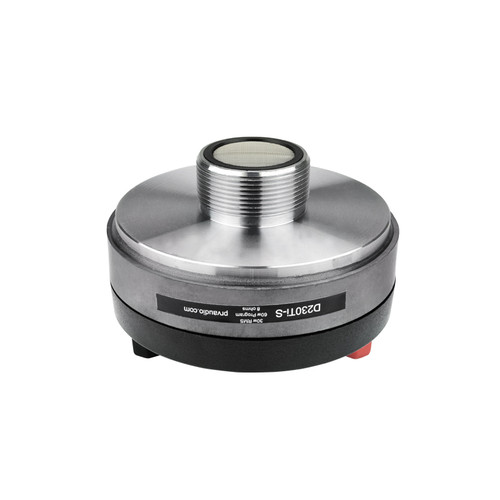

The D230Ti-S compression driver is known for excellent driver performance, reliability, and power handling as replacement and upgrade for many PA speakers that use a standard 1-3/8″-18 TPI horn. The voice coil is a copper clad aluminum wire wound on a Kapton high temperature coil former. The one-piece titanium diaphragm reduces the amount of moving mass, extending the high frequency response of the driver.

This driver is also available in both bolt-on and screw-on models (D230T-B / D230Ti-S). The D230Ti-B is a lightweight driver that weighs just 2lbs, and yet offers you outstanding response through 20kHz. The pure titanium diaphragm is supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications. The D230Ti-S is designed to ensure a quality sound and long lasting play in your large environment applications and replacing your old drivers is easy with the standard 1” screw-on design.

Product Highlights:

• Throat Diameter: 1″
• Type: Screw-On
• Nominal Impedance: 8 Ohms
• Rated AES Power Handling (RMS): 30 Watts
• Program Power: 60 Watts

Specifications:

• Throat Diameter: 1" (25.4 mm)
• Type: Screw-On
• Nominal Impedance: 8Ω
• Rated Power Handling (RMS): 30 Watts
• Program Power: 60 Watts
• Sensitivity (1W/1m): 105 dB
• Recommended Hi Pass X-Over: 2000 Hz (12 dB/Octave)
• Frequency Range at -10 dB: 1,800 - 20,000 Hz
• Voice Coil Diameter: 1.4" (35.5 mm)
• Voice Coil Wire: Copper
• Voice Coil Former Material: Kapton
• Diaphragm Type: Titanium
• Flux Density: 1.65T
• Magnet Material: Ferrite
• Sold Individually

Mounting and Shipping Information:

• Overall Diameter: 3.54" (90 mm)
• Overall Depth: 2.40" (61 mm)
• Mounting ThreAD: 1 3/8" 18 TPI
• Weight: 2.05 Lbs
• Replacement Diaphragm: RPD230Ti
