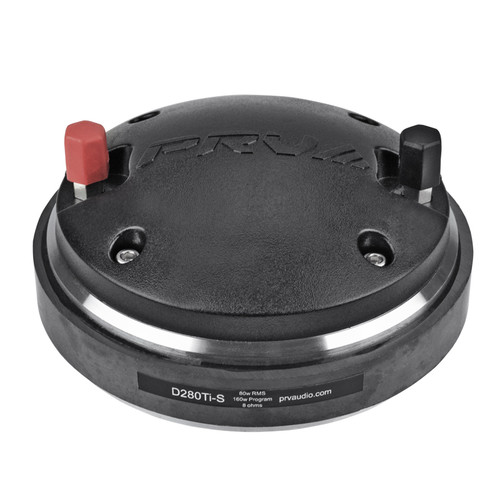

The PRV Audio D280Ti-S Compression Driver offers a surprisingly smooth response and high efficiency from mid-range through high range frequencies thanks to the pure titanium diaphragm.  Perfect for studio monitors and stage monitors, and stage speakers where high sound quality is required. A 2 and 3 or bolt pattern ensures easy replacement with current 1” bolt-on horns and weighs just 3.3 lbs. A standard 1 3/8” screw ensures easy replacement with current 1” horns and weighs just 3.3 lbs.

The 1" exit and 1-3/8"-18 TPI threading makes this the perfect upgrade horn driver for many popular professional audio speaker cabinets, and the linear frequency response from 1,300 to 20,000 Hz allows it to be used in high output home audio and car audio systems. D280Ti-B and D280Ti-S is designed to ensure a quality sound and long lasting play in most any environment and in the rare event you need to make a repair to your driver, simple, quick diaphragm replacements are available.

Product Highlights:

• Throat Diameter: 1″
• Type: Screw-On
• Nominal Impedance: 8 Ohms
• Rated AES Power Handling (RMS): 80 Watts
• Program Power: 160 Watts

Specifications:

• Throat Diameter: 1" (25.4 mm)
• Type: Screw-On
• Nominal Impedance: 8Ω
• Rated Power Handling (RMS): 80 Watts
• Program Power: 160 Watts
• Sensitivity (1W/1m): 109 dB
• Frequency Range at -10 dB: 1,300 - 20,000 Hz
• Recommended Hi Pass X-Over: 1800 Hz (12 dB/Octave)
• Voice Coil Diameter: 1.75" (44.4 mm)
• Voice Coil Wire: CCAW
• Voice Coil Former Material: Kapton
• Diaphragm Type: Titanium
• Flux Density: 1.65 T
• Magnet Material: Ferrite
• Sold Individually

Mounting and Shipping Information:

• Overall Diameter: 4.52" (115 mm)
• Overall Depth: 2.56" (65 mm)
• Mounting Thread: 1 3/8” 18 TPI
• Weight: 3.31 Lbs (1.5 kg)
• Replacement Diaphragm: RPD280Ti
