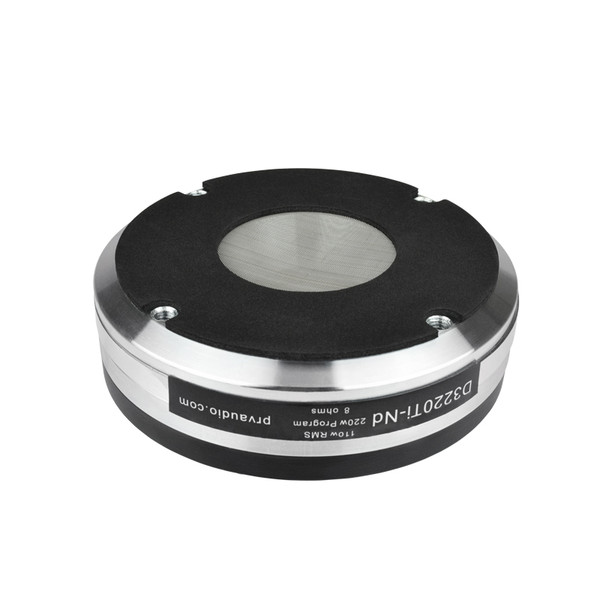

About: PRV Audio D3220TI-ND Pro Audio Titanium Compression Driver

The powerful D3220Ti-Nd PRV Audio pro audio compression driver features a 2″ exit supported by a 3″ voice coil allows for accurate reproduction through 19kHz. The pure titanium diaphragm supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications. The Neodymium magnet assembly reduces the weight to just 4.89lbs. The D3220Ti-Nd is designed to ensure a quality sound and long lasting play in your large environment applications.

Product Highlights:

• Throat Diameter: 2″
• Type: Bolt-On
• Nominal Impedance: 8 Ohms
• Rated AES Power Handling (RMS): 110 Watts
• Program Power: 220 Watts

Specifications:

• Exit Throat Diameter: 2” (50 mm)

• Nominal impedance: 8 Ohms
• Rated AES Power Handling (RMS): 110 Watts
• Program Power: 220Watts
• Sensitivity 2.83V at 1m: 110 dB
• Recommended Hi Pass Crossover: 1600 Hz** **12db Per Octave Crossover
• Frequency Response at -10dB: 1,600 – 19,000 Hz
• Voice Coil Diameter: 3”(76.2 mm)
• Voice Coil Wire: Copper
• Voice Coil Former Material: Kapton
• Diaphragm Material: Titanium
• Flux Density: 1.80 T
• Magnet Material: Neodymium

Mounting and Shipping Information:

• Overall Diameter: 4.88” (124 mm)
• Overall Depth: 2.21” (56 mm)
• Mounting Bolt Circle: M6 x 4 4” (101.6 mm)
• Net Weight: 5.00 lbs (2.27 kg)
• Shipping Weight5.27 lbs (2.39 kg)
• Carton Dimensions (W x L x H): 5.71” x 5.71” x 3.35” (145 x 145 x 85 mm)
