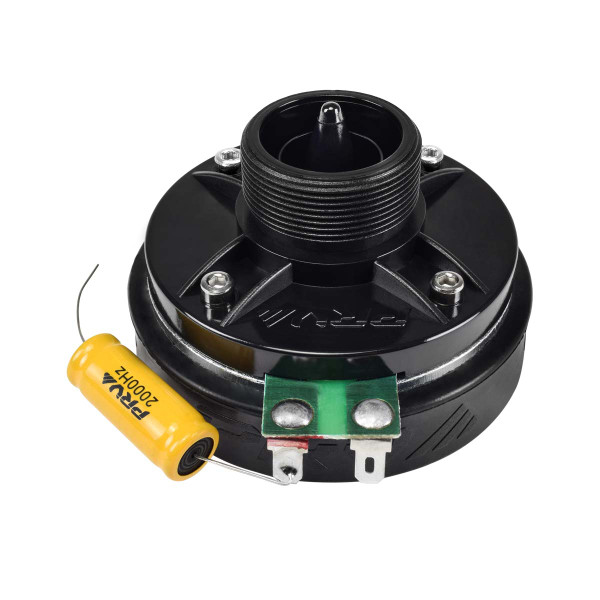

About: PRV Audio DT175Ph-S 1" Exit Phenolic Compression Driver

The DT175Ph-S is a lightweight compression driver that weighs just 1.5lbs, and offers you an economical yet responsive driver through 20kHz. The Phenolic diaphragm offers a more subtle, smooth tone producing a less harsh sound in smaller environments yet packs the punch to fill most any size room. The DT175Ph-S has a standard 1″ screw-on throat enabling you to quickly replace old worn out or damaged drivers. The most affordable and compact 1″ compression driver from PRV Audio.

Product Highlights:

• Throat Diameter: 1″
• Type: Screw-On
• Nominal Impedance: 8 Ohms
• Rated AES Power Handling (RMS): 75 Watts
• Program Power: 150 Watts

Specifications:

• Exit Throat Diameter: 1” (25.4mm)
• Nominal impedance: 8 Ohms
• Rated AES Power Handling (RMS): 75 Watts
• Program Power: 150 Watts
• Sensitivity 2.83V at 1m: 108 dB
• Recommended Hi Pass Crossover: 3000 Hz **12db Per Octave Crossover
• Frequency Response at -10dB: 1,300 – 19,000 Hz
• Voice Coil Diameter: 1″ (25.4 mm)
• Voice Coil Wire: CCAW
• Voice Coil Former Material: Kapton
• Diaphragm Material: Phenolic resin
• Flux Density: 1.02 T
• Magnet Material: Ferrite

Mounting and Shipping Information:

• Overall Diameter: 3.31” (84 mm)

• Overall Depth: 2.60” (66 mm)
• Mounting Thread: 1 3/8” 18 TPI
• Net Weight: 1.73 lbs (0.79 kg)
• Shipping Weight: 1.85 lbs (0.84 kg)
• Carton Dimensions (W x L x H): 4.53” x 4.53” x 3.31” (115 x 115 x 84 mm)
