Descriptions

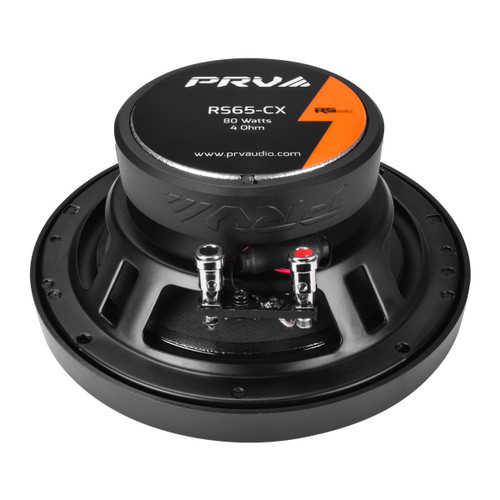

About: PRV Audio RS65-CX 6.5" 80W RMS 2-Way Coaxial Speakers - 4 Ohm (Pair)

Meet our premium 6.5” car audio 2-way coaxial RS65-CX. Focused on high-performance, these speakers were engineered and designed as the perfect solution for audiophiles looking to elevate their car audio system’s sound quality. The RS Series brings new Subwoofers, amplifiers and car speakers with high-fidelity sound and performance for your everyday car system, specifically designed and developed for the car audio market.

RS65-CX is designed for easy installation with a standard 6.5″ frame size that fits many OEM door speaker locations. Although this coaxial was designed to be powered by an amplifier, it can also be used in a factory or aftermarket radio for good sound quality and better clarity over OEM speakers. The RS65-CX will immerse you in the music no matter where you are in your vehicle. Upgrade today and hear the difference!

This 2-Way Car Coaxial speaker is an excellent upgrade for listeners wanting to go beyond the standard factory upgrade. With frequency responses ranging from 45Hz – 20,000Hz it delivers sound across the entire frequency spectrum. Designed with a 6.5” woofer and a 1” Neodymium Tweeter with built-in crossover, the different components are each responsible for reproducing a specific frequency range, all connected from a single push-terminal, making for an easy installation without having to tune two separate components.

Features:

• Small Profile – Designed for easier installation with its standard frame size that fits many OEM door speaker locations. 4 Ohm Impedance.
• 2-Way Coaxial – Built-in soft dome tweeter with in-line capacitor attenuates perfectly with the speaker, delivering rich, detailed sound.
• These 6.5″ coaxial speakers utilize a high quality silk dome tweeter and woofer, providing more accurate audio at 90dB sensitivity, superior to most stock car audio speakers.
• The RS65-CX 2-way coaxial does not require a large amount of power to operate. They get loud extremely easy with 160 watts RMS per pair making it suitable for use with the compact QS400.4 2 Ohm.

Specifications:

• Nominal Diameter: 6.5″ (165 mm)
• Nominal impedance: 4 Ohm
• Continuous Program Power (RMS): 80 Watts
• Max Peak Power: 160 Watts
• Sensitivity 2.00V at 1m: 90 dB
• Frequency Response: 45 – 20,000 Hz
• Voice Coil Diameter: 1.2″ (30 mm)
• Voice Coil Wire: Copper
• Voice Coil Winding Depth: 10.0 mm
• Former Material: Kapton
• Magnetic Gap Depth: 5.0 mm
• Frame Material: Stamped Steel

Thiele-Small Parameters:

• Equivalent Volume (Vas): 9.8 l
• Excursion (mathematical)(Xmax): 3.75 mm
• Free Air Resonance (Fs): 75.3 Hz
• Mechanical Factor (Qms): 13.19
• Electrical Factor (Qes): 0.87
• Total Factor (Qts): 0.81
• Cone Area (Sd): 143 cm²
• Mechanical Mass (Mms): 13.0 g
• Bl Factor (Bl): 5.12 Tm
• Dc Resistance (Re): 3.7 Ohm
• Inductance (Le): 0.55 mH at 1 kHz
• Mechanical Mass Without Air (Mmd): 12.0 g
• Mechanical Compliance (Cms): 0.34 mm/N

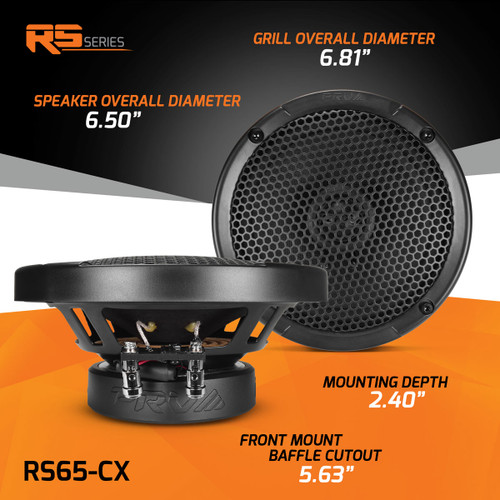

Mounting and Shipping Information:

• Overall Diameter: 6.50” (165 mm)
• Front Mount Baffle Cutout: 5.63″ (143 mm)
• Mounting Depth: 2.40” (61 mm)
• Overall Depth: 3.40” (86.4 mm) with grill
• Net Weight: 2.45 Lbs (1.10 kg)
• Shipping Weight: 6.75 Lbs (3.05 kg)
• Carton Dimensions (W x L x H): 15.47″ x 8.0″ x 5.90” (393 x 203 x 150 mm)

Note:

• Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
• Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
• Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
