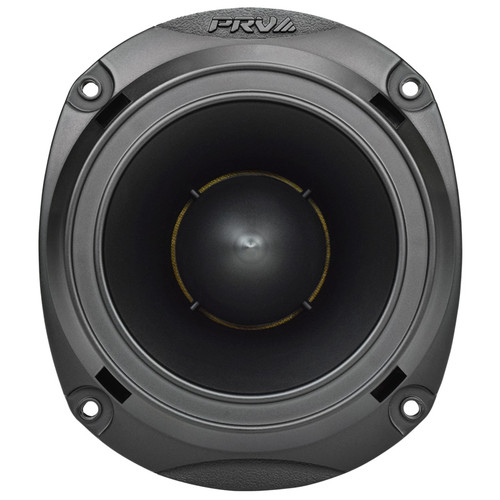

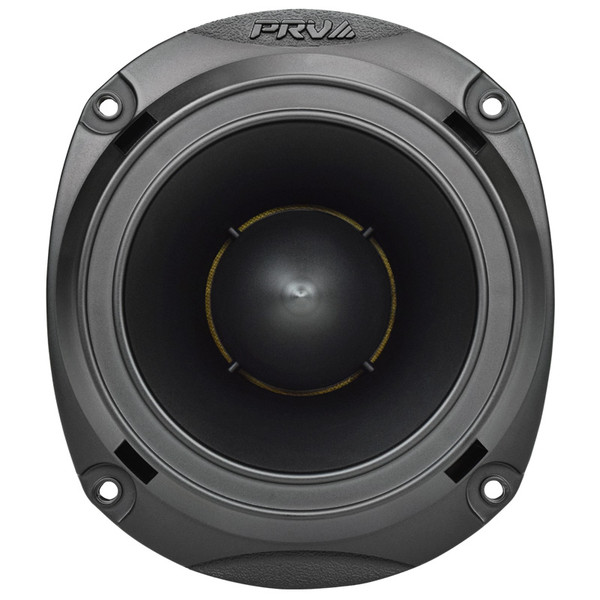

The PRV TW1000Ph delivers the combination of pleasant crystal clear sound and long lasting quality. PRV Audio's TW1000Ph tweeter can deliver the extreme SPL levels you expect from a bullet tweeter but with a natural sound. With an aluminum heatsink on the back plate the TW1000Ph can handle an impressive 100 watts RMS for extended periods of time.

The durable Phenolic Diaphragm is mounted inside and out to reduce the amount of moving mass, extending the high frequency response to a more natural sound than a metallic diaphragm. The bullet-shaped horn design on the TW1000Ph allows it to deliver a high output and longer throw with 40° x 40° dispersion.

The use of a 1.83” copper voice coil with an unique Aluminum back plate heatsink design improves the power handling and durability for any professional large environment application. Whether in a high output car audio system or a large club system, the TW1000Ph will add the high frequency output you need.

Product Highlights:

• Type: Super Tweeter
• Nominal Impedance: 8 Ohms
• Rated AES Power Handling (RMS): 100 Watts
• Program Power: 200 Watts
• Voice Coil Diameter: 1.83″

Specifications:

• Type: Super Tweeter
• Nominal Impedance: 8Ω
• Rated Power Handling (RMS): 100 Watts
• Program Power: 200 Watts
• Sensitivity (1W/1m): 106 dB
• Min. Crossover Point @ 12Db/Oct: 5,000 Hz
• Frequency Range at -10 dB: 4,000 -20,000 Hz
• Voice Coil Diameter: 1.83" (46.5 mm)
• Voice Coil Wire: Copper
• Voice Coil Former Material: Kapton
• Diaphragm Type: Phenolic
• Flux Density: 1.58 T
• Magnet Material: Ferrite
• Replacement Diaphragm: RPTW1000Ph
• Sold Individually

Mounting and Shipping Information:

• Overall Depth: 3.10" (78.75 mm)
• Mounting Depth: 2.84" (58.0 mm)
• Overall Width 4.58" (116.5 mm)
• Overall Height: 5.27" (134.0 mm)
• Cutout Diameter: 4.41" (112.0 mm)
• Weight: 2.55 lbs
