Descriptions

About: PRV Audio TW350Ti-4 Pro Audio Super Tweeter - 4 Ohm (Pair)

Add crystal clear sparkle to any speaker with PRV Audio’s TW350Ti-4 titanium bullet super tweeters! Not only do these tweeters look as good as it sounds, it can also take a lot of power from its 1″ diameter copper-clad voice coil attached to a titanium diaphragm that is lightweight and rigid, for maximum efficiency and smooth high frequencies.

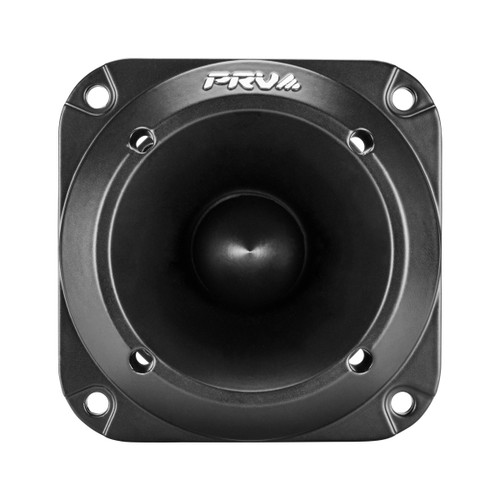

These tweeters also feature a precise dispersion pattern, giving you a wide soundstage and accurate imaging. With the TW350Ti-4 tweeters, you get beautiful, crystal clear sound that will make your music shine. A square faceplate makes it easier to install, and the black face is framed by a strong aluminum horn, which offers a smooth response and extremely high efficiency, enabling it to cover a wide frequency range and offer a smooth response.

Features:

• Designed to fit in small spaces without any major modifications
• Titanium diaphragm for an accurate and detailed response
• Designed to add high output, high frequency response to any high output system

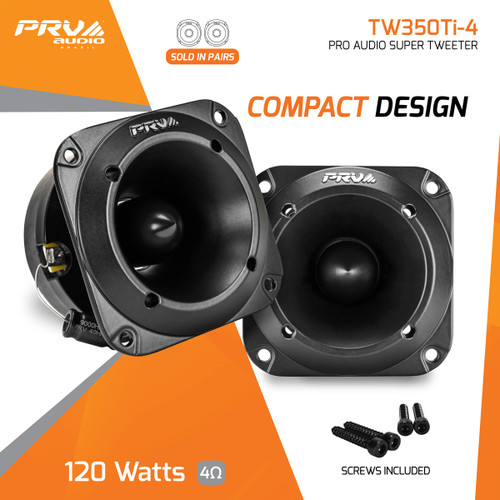

• The hidden terminal design and square 3”x3” faceplate make it easy to install on 2.80″ baffle cutouts. Screws included.

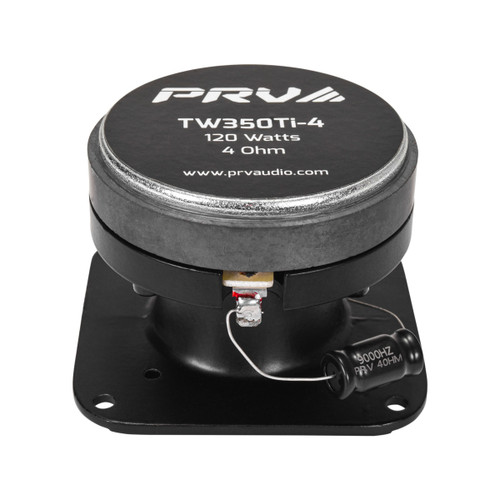

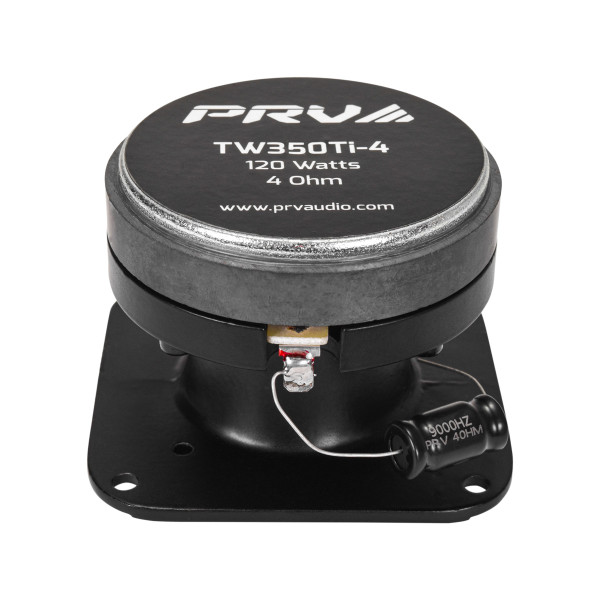

• Built-in capacitors act as a crossover and attenuates the low frequencies for smooth frequency response.
• Able to take a ton of power! Up to 120 watts RMS of power handling are on tap with a 12 dB/octave crossover at 5,000 Hz

Specifications:

• Nominal impedance: 4 Ohm
• Nominal Power Handling: 60 Watts
• Continuous Program Power(RMS): 120 Watts
• Max Peak Power: 240 Watt
• Sensitivity 2.00V at 1m: 105 dB
• Recommended Hi Pass X-Over: 5000 Hz (12 dB/Octave)
• Frequency Response at -10dB: 4,500 – 20,000 Hz
• Voice Coil Diameter: 1.0” (25 mm)
• Voice Coil Wire: CCAW
• Voice Coil Former Material: Kapton
• Diaphragm Material: Titanium
• Flux Density: 1.45 T
• Magnet Material: Ferrite
• Sold in Pairs

Mounting and Shipping Information:

• Overall Depth: 2.28” (58 mm)
• Mounting Depth: 1.93” (49 mm)
• Overall Width: 3.03” (77 mm)
• Overall Height: 3.03” (77 mm)
• Cutout Diameter: 2.76” (70 mm)
• Net Weight: 1.0 lbs (0.45 kg)
• Shipping Weight (pair): 2.55 lbs (1.1 kg)
• Carton Dimensions (W x L x H): 7.00” x 3.75” x 3.00” (178 x 95 x 76 mm)

 Note:

• Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
• Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
• Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
