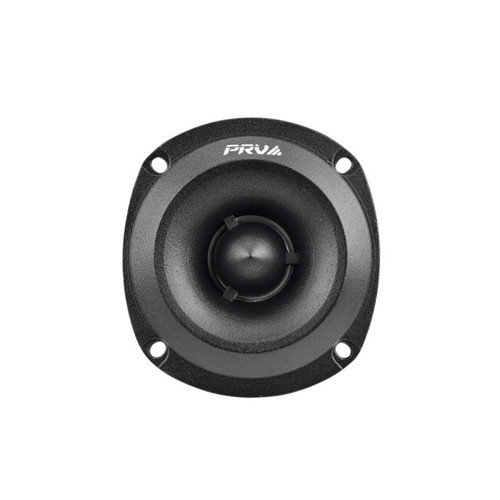

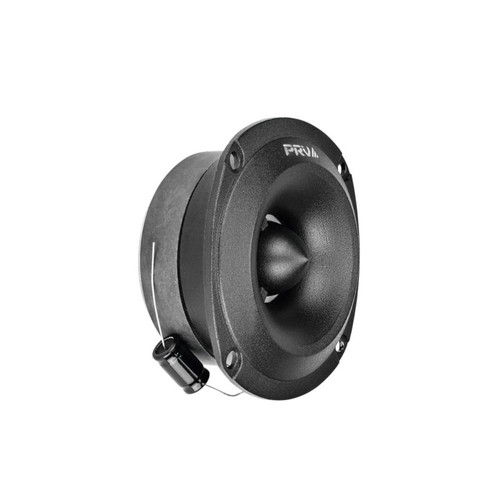

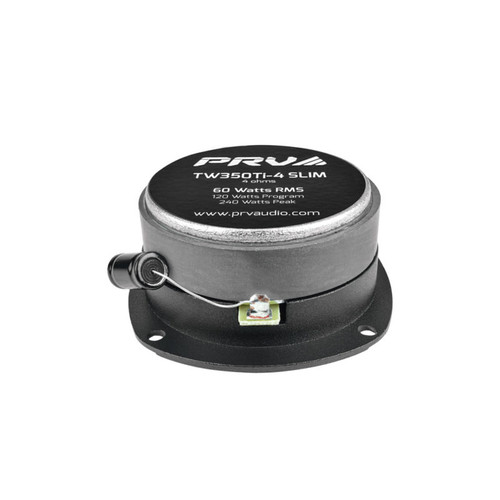

About: PRV Audio TW350Ti-4 Slim 3.5" Super Tweeter - 4 Ohm (Pair)

Add crystal clear sparkle to any speaker with TW350Ti-4 SLIM, a titanium bullet super tweeter from PRV Audio! Not only does this driver look as good as it sounds, but with an ultra shallow design, this tweeter is easy to mount anywhere!! The PRV Audio TW350Ti-4 SLIM Super Bullet Tweeter offers a smooth response and is extremely high efficiency from mid range through high range frequencies. This tweeter is TW350Ti‘s little brother, which is already established as a popular choice for HIGH SPL super Tweeter.

Its Titanium diaphragm, on a Kapton former, is light, thin and durable, for long play applications, making this tweeter perfect for Pro Audio On Wheels® applications. Its sharp smooth sound is also ideal for applications where larger compression drivers may overpower a venue. The TW350Ti-4 SLIM is designed with a cast aluminum frame to ensure quality sound and long lasting play in most any environment. Replacement Diaphragms are available.

Products Highlights:

• The low mass CCAW voice coil at 4 ohms
• Crystal Clear High Frequency Response
• High Output – 104 dB sensitivity
• Slim Design easy to Mount
• Sold in Pairs

Specifications:

• Nominal impedance: 4 Ohms
• Nominal Power Handling: 60 Watts
• Continuous Program Power(RMS): 120 Watts
• Max Peak Power: 240 Watt
• Sensitivity 2.00V at 1m: 104 dB
• Recommended Hi Pass X-Over: 5000 Hz (12 dB/Octave)
• Frequency Response at -10dB: 4,500 – 20,000 Hz
• Voice Coil Diameter: 1.0” (25 mm)
• Voice Coil Wire: CCAW
• Voice Coil Former Material: Kapton
• Diaphragm Material: Titanium
• Flux Density: 1.45 T
• Magnet Material: Ferrite
• Sold in Pars

Mounting and Shipping Information:

• Overall Depth: 1.67” (42.5 mm)
• Mounting Depth: 1.32” (33.5 mm)
• Overall Diameter: 3.50” (89 mm)
• Cutout Diameter: 2.95” (75 mm)
• Weight: 1.14 lbs (0.51 kg)

Note:

• Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
• Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
• Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
