About: PRV Audio TW400Ti-Nd-4 SLIM 1" Bullet Super Tweeter 60W RMS - 4 Ohms (Pair)

The PRV Audio TW400Ti-Nd-4 SLIM Super Tweeter offers a smooth response and extremely high efficiency from high mid range through high range frequencies. This compact tweeter is part of a wide family from the TW400Ti-Nd Series, featuring a strong neodymium motor which increases its efficiency and lowers its weight ans size dramatically without compromising any performance.

After several months of research and development, we were able to obtain a high level of output from this neodymium motor and an unique diaphragm design for the TW400Ti-Nd Series. Featuring a new concept, easy to replace diaphragm ( solderless ) makes a very easy task to fix your tweeter in few minutes.

Add detail to any speaker with PRV Audio’s TW400Ti-Nd-4 SLIM 1″ exit titanium compact bullet super tweeter! The titanium diaphragm combines with the durable, yet lightweight, Kapton™ voice coil former for sensitivity levels of up to 105 dB from 4,500 to 20,000 Hz.. The tweeter is perfect for Pro Audio On Wheels® applications.

Product Highlights:

• Designed to fit in tight spaces without any major modifications
• Titanium diaphragm for an accurate and detailed response
• Designed to add high output, high frequency response to any interior system
• Hidden push terminal connection, takes less space on installation

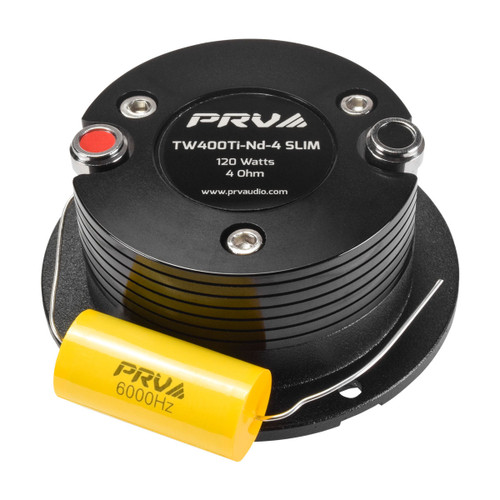

• Built-in capacitors act as a crossover and attenuates the low frequencies for smooth frequency response
• Able to take a ton of power! Up to 120 watts RMS of power handling are on tap with a 12 dB/octave crossover at 6,000 Hz

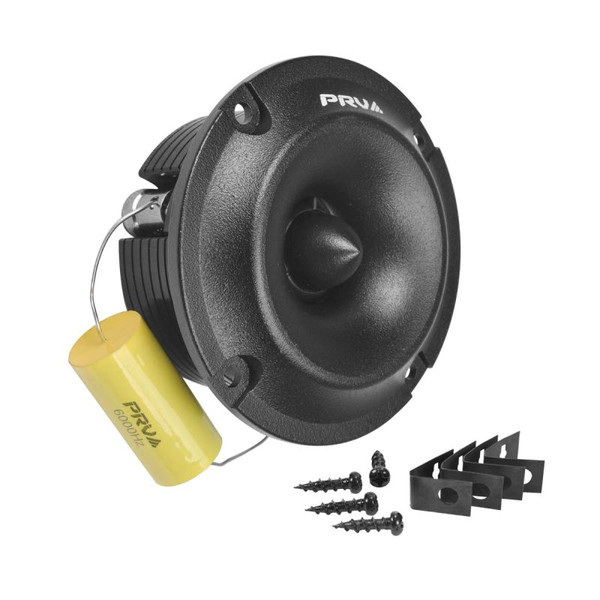

• Sold in Pairs – Mounting Screws are included

Specifications:

• Nominal Impedance: 4 Ohms
• Power Handling:
• Nominal Power Handling: 60 Watts
• Continuous Program Power: 120 Watts
• Max Peak Power: 240 Watts
• Sensitivity 2.00V at 1m: 105 dB
• Recommended Hi Pass Crossover: 6000 Hz**12dB Per Octave Crossover
• Frequency Response at -10db: 4,500 – 20,000Hz
• Voice Coil Diameter: 1.0" (25 mm)
• Voice Coil Wire: CCAW
• Voice Coil Former Material: Kapton
• Diaphragm Material: Titanium
• Flux Density: 1.45 T

• Magnet Material: Neodymium

Measurements:

• Overall Depth: 1.61″ (41 mm)
• Mounting Depth: 1.22″ (31 mm)
• Overall Diameter: 2.92″ (74 mm)
• Cutout Diameter: 2.27″ (57.7 mm)
• Net Weight: 0.66 lbs (0.30 kg)
• Shipping Weight (pair): 1.54 lbs (0.70 kg)
• Carton Dimensions (W x L x H): 6.77″ x 3.15″ x 1.99″ (172 x 80 x 50 mm)

Note:

• Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
• Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
• Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
