Descriptions

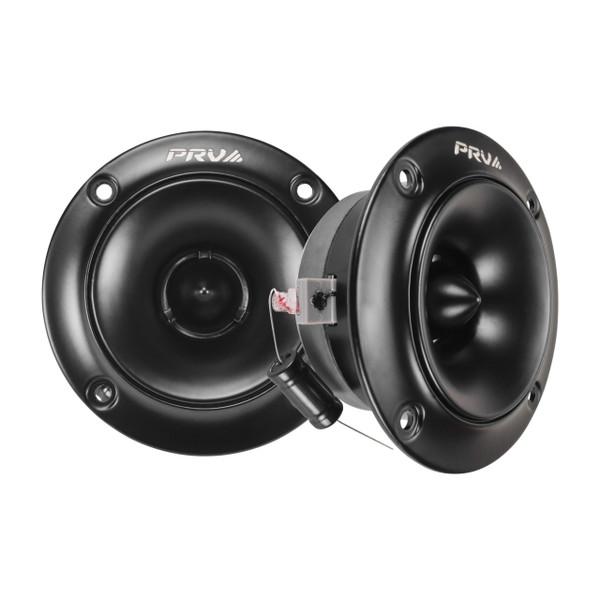

About: PRV Audio TW500Ti-4 3.75" 120W RMS Super Tweeters (Pair)

Add crystal clear sparkle to any speaker with PRV Audio’s TW500Ti-4 titanium bullet super tweeters! The 3.75″ rounded faceplate not only gives them a sleek look, but also make them good as they sound, featuring an unique shallow design to it. They can also take a lot of power from its 1″ diameter copper-clad voice coil attached to a titanium diaphragm that is lightweight and rigid, for maximum efficiency and smooth high frequencies.

These tweeters also feature a precise dispersion pattern, giving you a wide soundstage and accurate imaging. Your music will shine thanks to the TW500Ti-4 tweeters, which deliver stunning, crystal clear sound. Designed with a rounded 3.75” aluminum faceplate that makes it easier to install, which offers a smooth response and extremely high efficiency, enabling it to cover a wide frequency range and offer a smooth response.

Recommended Crossover Guide:

Recommended HPF using PRV Digital Signal Processor DSP when using up to 120 Watts RMS musical power (without clipping) with Capacitor

• 5000 Hz at 12 dB per octave filter Crossover / LR12 with capacitor
• 7000 Hz at 24 dB per octave filter Crossover / LR24 without capacitor

No LPF crossover for tweeters

Maximum power handling without any crossover points:

• The tweeter’s capacitor helps attenuate low frequencies, but it cannot cut all low tones, if used parallel to a speaker or straight from a head unit, each will only be able to handle 50 Watts RMS without distortion.

Features:

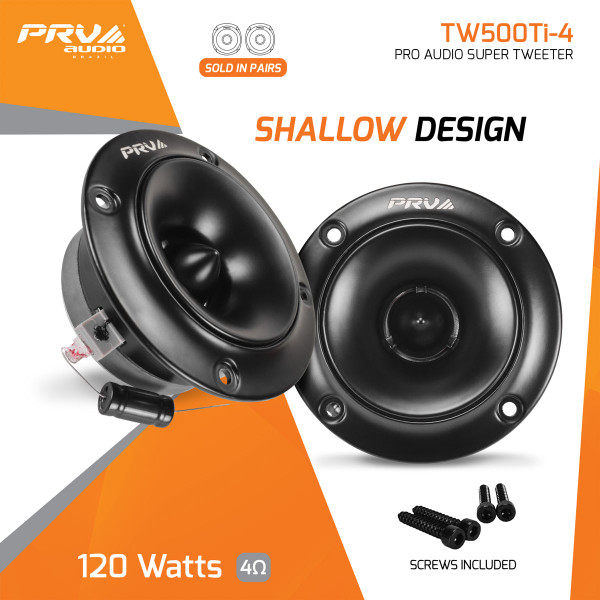

• Designed to fit in shallow spaces without any major modifications
• Titanium diaphragm for an accurate and detailed response
• Designed to add high output, high frequency response to any high output system
• 3.80” faceplate make it easy to install giving it a wide dispersion rate. Screws included.
• Built-in capacitor act as a crossover and attenuates the low frequencies for smooth frequency response.
• Able to take a ton of power! Up to 120 watts RMS of power handling are on tap with a 12 dB/octave crossover at 5,000 Hz

Specifications:

• Nominal impedance: 4 Ohm
• Nominal Power Handling: 60 Watts
• Continuous Program Power (RMS): 120 Watts
• Max Peak Power: 240 Watts
• Sensitivity 2.00V at 1m: 104 dB
• Recommended High Pass Crossover (For Full Power Handling): 6000 Hz 12db/oct Crossover
• Frequency Response at -10dB:4,500 – 20,000Hz
• Voice Coil Diameter: 1.0″ (25 mm)
• Voice Coil Wire: CCAW
• Voice Coil Former Material: Kapton
• Diaphragm Material: Titanium
• Flux Density: 1.24 T
• Magnet Material: Ferrite
• Sold as a pair

Mounting and Shipping Information:

• Overall Depth: 1.73″ (44 mm)
• Mounting Depth: 1.42″ (36 mm)
• Overall Diameter: 3.80″ (96.5 mm)
• Cutout Diameter: 2.85″ (72.5 mm)
• Net Weight: 1.0 lb (0.45 kg)
• Shipping Weight (pair): 2.53 lb (1.15 kg)
• Carton Dimensions (W x L x H): 8.86″ x 5.53″ x 2.16” (225 x 115 x 55 mm)

Note:

• Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
• Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
• Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
