Add detail to any speaker with PRV Audio’s TW700Ti BLACK titanium bullet super tweeter! With high frequency response up to 20,000 Hz and a sensitivity of 107 dB at 1W/1m, the TW700Ti Series PRO Audio Tweeter can keep up with even the most demanding speaker systems. A square faceplate makes it easier to install, made from a strong aluminum horn, which offers a smooth response and extremely high efficiency, enabling it to cover a wide frequency range and offer a smooth response

Enhancing its versatility, the flat sides of the tweeter allow for seamless side-by-side mounting, ensuring efficient use of space. The incorporation of an oversized magnet system further amplifies the magnetic field within the gap, resulting in heightened sensitivity and minimal distortion, thereby optimizing overall sound quality.

A capacitor is included for protection from damaging frequencies at high power. Mounting hardware included. Not only does this PRO audio bullet tweeter look as good as it sounds it is also able to take a huge amount of power due to its 1.5″ diameter copper voice coil. Up to 240 watts of musical program power are on tap to keep up with the most demanding professional audio, high output home audio, and high SPL car audio systems.

Recommended Settings with DSP / Crossover

We strongly recommended ALWAYS to use a high pass filter ( HPF ) on or to the amplifier channel that will be running the tweeters.

If you have just a high output crossover such as: EX3.5 STEREO or EX4.6 PRO – Use the HIGH OUT channel to feed the amplifier input with a HPF set to:

• At 5000Hz – if you are running just a speaker and tweeter setup
• At 8000Hz – If you are running a 3-Way system ( speaker, phenolic driver and tweeter )

If you are taking your system to the next level and tuning it with a digital signal processor: DSP 2.4X or DSP 2.8X – Set on the channel to feed the amplifier input with a HPF set to:

• At 5000Hz at LR18 – if you are running just a speaker and tweeter setup
• At 7000Hz at LR24 – If you are running a 3-Way system ( speaker, phenolic driver and tweeter)

Product Highlights:

• 4″ Square PRO Audio Super Tweeter – Built to Perform to add high output, high frequency response to large output systems
• High Temperature 1.5″ diameter voice coil capable of handling up to 240 Watts musical program power up to 240 Watts of amplifier RMS power
• Designed for high frequency reproduction at a high SPL level with low distortion thanks to its large motor.
• The built-in capacitor acts as a crossover and attenuates the low frequencies for smooth frequency response.

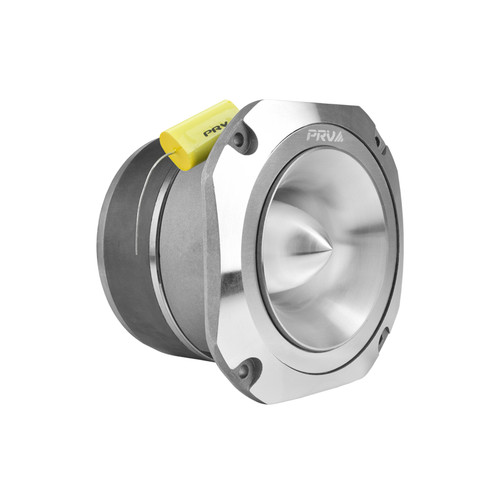

• Available in Chrome Finish!

Specification:

• Type: Super Tweeter
• Nominal Impedance: 8Ω
• Nominal Power Handling: 120 Watts
• Continuous Program Power (RMS): 240 Watts
• Max Peak Power: 480 Watts
• Sensitivity (1W/1m): 107 dB
• Recommended Hi Pass X-Over: 5000 Hz (12 dB/Octave)
• Frequency Range at -10 dB: 3,500 - 20,000 Hz
• Voice Coil Diameter: 1.5" (38 mm)
• Voice Coil Wire: CCAW
• Voice Coil Former Material: Kapton
• Diaphragm Type: Titanium
• Flux Density: 1.60 T
• Magnet Material: Ferrite
• Sold Individually

Mounting and Shipping Information:

• Overall Depth: 2.97" (75.54 mm)
• Mounting Depth: 2.55" (64.90 mm)
• Overall Width: 4.05" (103 mm)
• Overall Height: 4.05" (103 mm)
• Cutout Diameter: 3.58" (1.58 kg)
• Weight: 3.48 Lbs
• Replacement Diaphragm: RPTW700Ti

Note:

• Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
• Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
• Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
